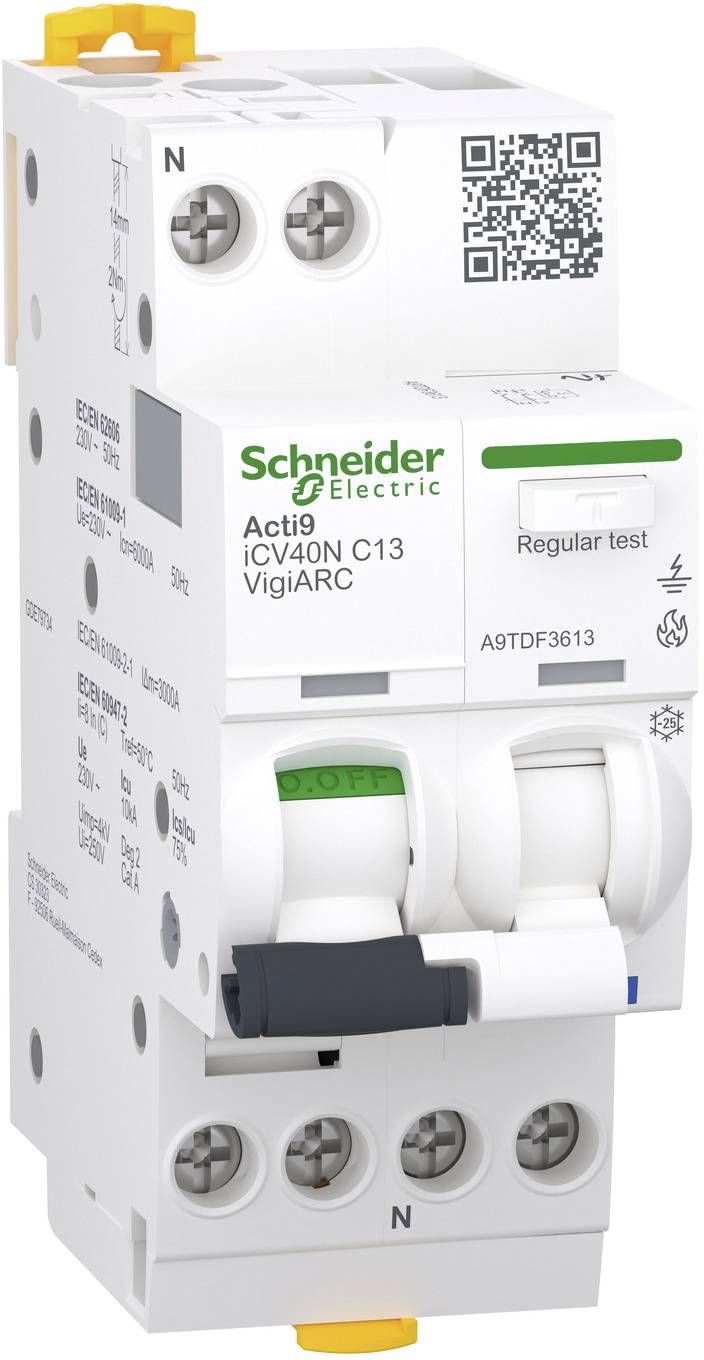

Schneider Electric A9TDF3613 AFCI 2-pin 0.03 A
EAN:
Part number:
Item no:
Product type
AFCI
Number of pins
2
Release characteristics
C
Differential current rating
0.03 A
Switch-off capacity
6 kA
Datasheet (PDF)
Number
Total (€ 210.08 / piece)
€ 210.08
plus VAT.
14 days return policy included
Technical specifications
- Product type
AFCI
- Number of pins
2
- Release characteristics
C
- Differential current rating
0.03 A
- Content
1 pc(s)
- Switch-off capacity
6 kA
50 Hz
44 mm
13 A
230 V
C
2
0.03 A
A
3
3
2
2
IP20
TRUE
10 kA
AC
Fire protection switch
6 kA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3343746 Schneider Electric A9TDF3613 AFCI 2-pin 0.03 A
User & Safety Instructions
User & Safety Instructions 3343746 Schneider Electric A9TDF3613 AFCI 2-pin 0.03 A
Information
Repairability/durability data sheet 3343746 Schneider Electric A9TDF3613 AFCI 2-pin 0.03 A
Conformity certificate
Conformity certificate 3343746 Schneider Electric A9TDF3613 AFCI 2-pin 0.03 A
Conformity certificate 3343746 Schneider Electric A9TDF3613 AFCI 2-pin 0.03 A
Conformity certificate 3343746 Schneider Electric A9TDF3613 AFCI 2-pin 0.03 A
Description
Acti9 iCV40N VigiARC - is an AFDD (Arcing Protection/Fire Protection Switch) for detecting arcing in combination with a FI/LS. 1P+N, 13A nominal current and C-characteristic. The ground fault circuit breaker is a type A-SI with a sensitivity of 30mA and the ground fault protection is instantaneous. The Rated short circuit breaking capacity ranges up to 6000A at 230VAC according to EN/IEC 61009-2-1 and 10kA at 230VAC according to EN/IEC 60947-2. This AFDD in combination with the FI/LS protects against short circuit, overload current, electric shock due to indirect contact and fire hazard caused by error arcs. The Acti9 IARC's two unique VisiTrip displays reduce intervention time by displaying the failed circuit and quickly identifying the type of error. The electrical lifespan is up to 10,000 and the mechanical lifespan is up to 20,000 switching cycles. The rated insulation voltage UI is 250VAC. Limiting class 3 (according to EN/IEC60898-1). The product can be snapped onto a DIN rail. Its width is 2 TE. Pollution level 2 Product color white (RAL9003). Dimensions (W) 36mm x (H) 91mm x (D)73mm. Protection class IP20 (according to IEC/EN 60529) and IP40, as soon as it is installed in a modular casing. This product complies with the standards EN/IEC 62606, EN/IEC 61009-2-1 and EN/IEC 60947-2.
