Name: Schneider Electric ABLS1A12060E Rail mounted PSU (DIN) 12 V DC 6.3 A 75 W Content 1 pc(s)
Brand: Schneider Electric
SKU: 3754616
Availability: InStock

Schneider Electric ABL8TA1206E power supply module with front terminals, green adjustment panel, and labels for 12V output and 100-240V AC input.

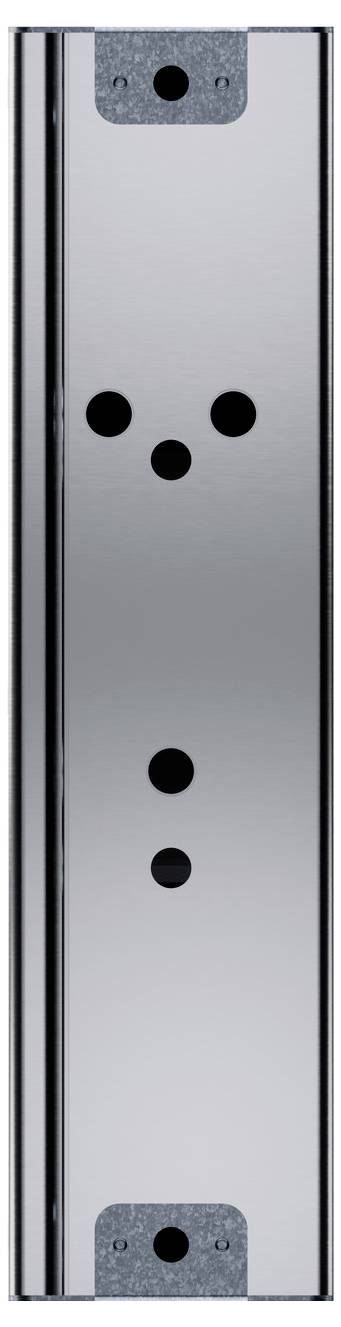

Vertical metal bracket or mounting plate with multiple circular holes, shown front view on a white background.

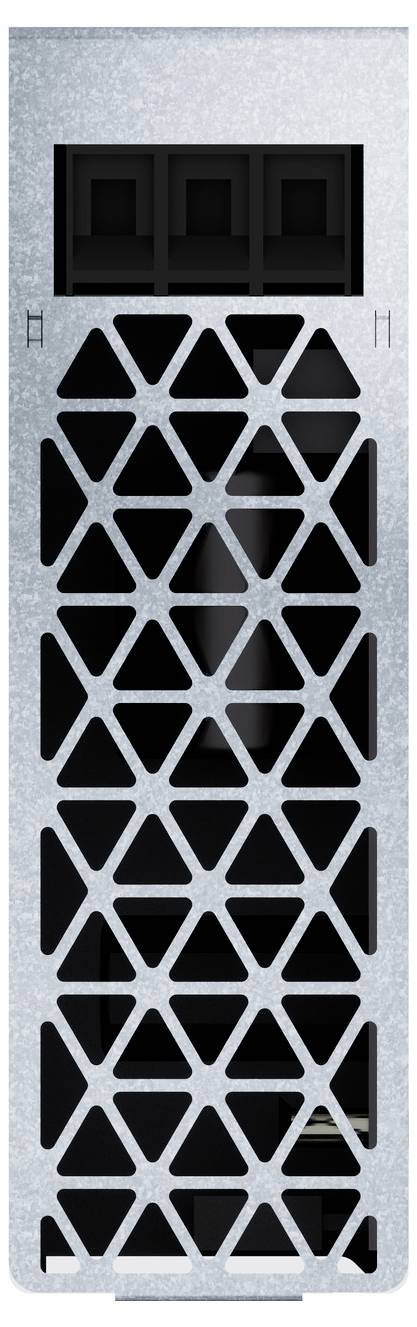

Front view of a computer case front panel with three drive bays at the top and a geometric black mesh vent covering most of the surface.

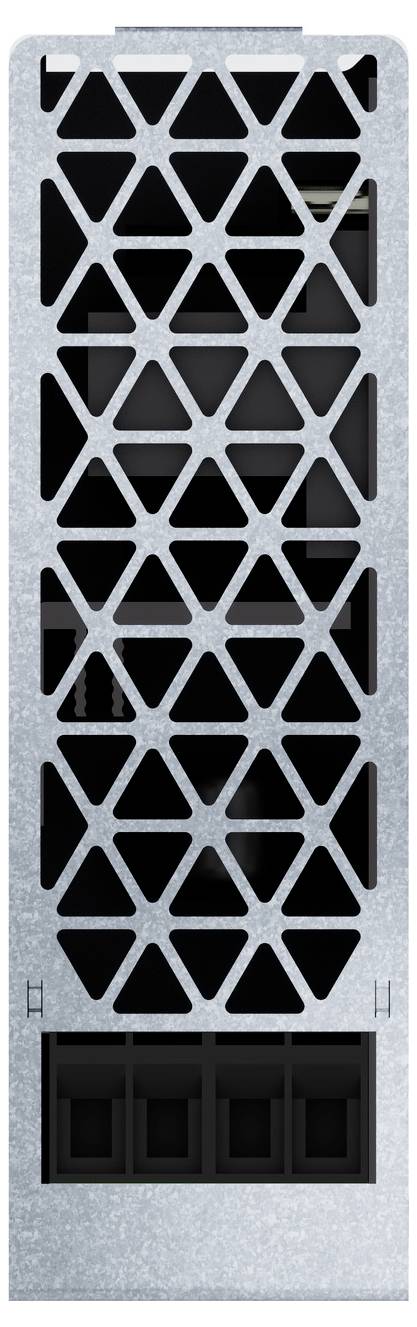

Rectangular metal grille panel with a repeating triangular lattice over a dark interior, mounted above a small black vent opening.<br>

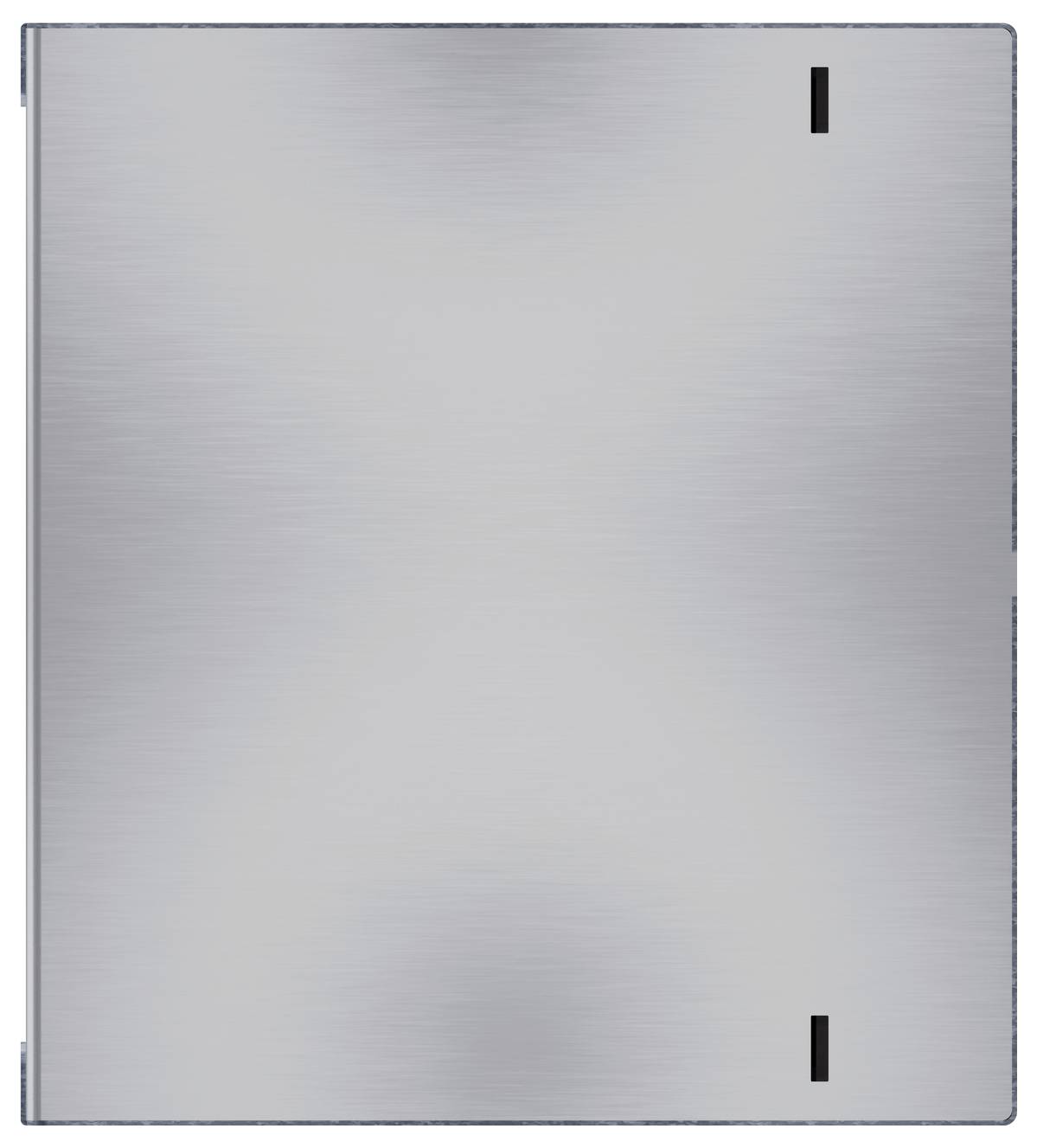

Closed brushed-metal cabinet or appliance door with a smooth silver surface and two small black rectangular handles on the right side.

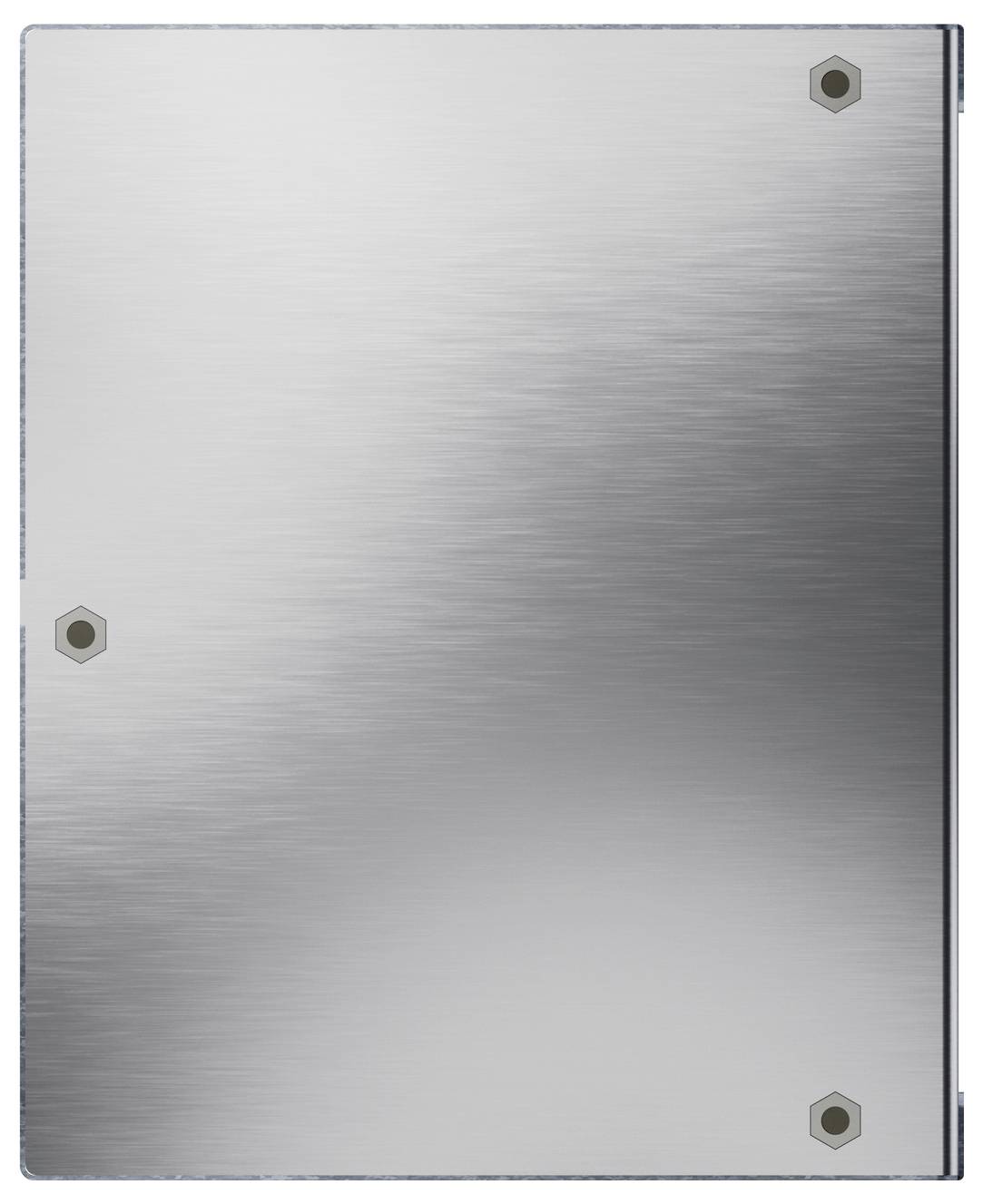

Brushed stainless steel panel with three visible mounting bolts, shown front-facing on a plain white background.

Control cabinet with multiple Schneider Electric control devices and wired relays/contactors on DIN rail.

Industrial installation with three Modicon ABLSE power supplies; in the bottom left it says 'Modicon ABLSE Power Supply'.

Schneider Electric ABLS1A12060E Rail mounted PSU (DIN) 12 V DC 6.3 A 75 W Content 1 pc(s)-8

1/9

Datasheet (PDF)

Fast track dispatch on Wed 14 Oct

4 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 55.99 / piece)

€ 55.99

incl. VAT

Only 4 Piece(s) available

14-day return policy included

Report legal concerns

Technical specifications

Design of electrical connection: Screw connection
Output voltage adjustable: No.
Regulated output voltage: No.
Direct mounting possible: Yes
Suitable for series installation: No.
Suitable for security functions: No.
Short-circuit-proof: Yes
Performance level according to EN ISO 13849-1: Without
SIL according to IEC 61508: Without
Voltage type of supply voltage: AC
Stabilised: No.
Rail mounting possible: Yes

Nominal input voltage: 100 - 240 V/AC

Product type: Rail mounted PSU (DIN)

Min. input voltage: 100 V AC

Output voltage: 24 V

Input voltage (max.): 240 V AC

Max. output current: 6.3 A

Output current (max.) - rounded: 6.3 A

: 75 W

Output type (power supply units): Fixed voltage

Phases: 1

Output voltage (nominal): 12 V DC

Connection: Screw terminal

Dim: (L x W x H) 102 x 32 x 125 mm

Weight: 0.4400 kg

Manufacturer part #: ABLS1A12060E

Content: 1 pc(s)

Width: 32 mm

Height: 125 mm

Length: 102 mm

: IP20

Type: ABLS1A12060E

UKCA: yes

Variants(All information include VAT, plus shipping costs)

Power

Connection

Output voltage (nominal)

Nominal input voltage

Output current (max.) - rounded

Schneider Electric ABLS1A12060E Rail mounted PSU (DIN) 12 V DC 6.3 A 75 W Content 1 pc(s)

Item no:3754616

Fast track dispatch on Wed 14 Oct

4 Piece(s)Conrad Electronic

This article

75 W

Screw terminal

12 V DC

100 - 240 V/AC

6.3 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 55.99^*

Schneider Electric ABLS1A12100E Rail mounted PSU (DIN) 12 V DC 10 A 120 W No. of outputs:1 x Content 1 pc(s)

Item no:3754620

Fast track dispatch on Wed 14 Oct

2 Piece(s)Conrad Electronic

120 W

12 V DC

100-240 V/AC

10 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 57.99^*

Schneider Electric ABLS1A24030E Rail mounted PSU (DIN) 24 V DC 3.2 A 75 W Content 1 pc(s)

Item no:3754627

Fast track dispatch on Wed 14 Oct

2 Piece(s)Conrad Electronic

75 W

Screw terminal

24 V DC

100 - 240 V/AC

3.2 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 51.99^*

Schneider Electric ABLS1A24050E Rail mounted PSU (DIN) 24 V DC 5 A 120 W Content 1 pc(s)

Item no:3754632

Fast track dispatch on Wed 14 Oct

6 Piece(s)Conrad Electronic

120 W

Screw terminal

24 V DC

100-240 V/AC

5 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 55.99^*

Schneider Electric ABLS1A24100E Rail mounted PSU (DIN) 24 V DC 10 A 240 W No. of outputs:1 x Content 1 pc(s)

Item no:3754635

Fast track dispatch on Wed 14 Oct

3 Piece(s)Conrad Electronic

240 W

Screw terminal

24 V DC

100-240 V/AC

10 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 104.99^*

Schneider Electric ABLS1A24200E Rail mounted PSU (DIN) 24 V DC 20 A 480 W Content 1 pc(s)

Item no:3754637

Fast track dispatch on Wed 14 Oct

2 Piece(s)Conrad Electronic

480 W

24 V DC

100-240 V/AC

20 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 209.99^*

Schneider Electric ABLS1A24400E Rail mounted PSU (DIN) 24 V DC 40 A 960 W Content 1 pc(s)

Item no:3757757

Available soon

Conrad Electronic

960 W

24 V DC

100 - 240 V/AC

40 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 479.00^*

Schneider Electric ABLS1A48100E Rail mounted PSU (DIN) 48 V DC 10 A 480 W No. of outputs:1 x Content 1 pc(s)

Item no:3754642

Fast track dispatch on Wed 14 Oct

4 Piece(s)Conrad Electronic

480 W

Screw terminal

48 V DC

100-240 V/AC

10 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 204.99^*

Schneider Electric ABLS1A48200E Rail mounted PSU (DIN) 48 V DC 20 A 960 W Content 1 pc(s)

Item no:3757758

Available soon

Conrad Electronic

960 W

48 V DC

20 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 495.00^*

Documents & Downloads

Datasheet

Datasheet 3754616 Schneider Electric ABLS1A12060E Rail mounted PSU (DIN) 12 V DC 6.3 A 75 W Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3754616 Schneider Electric ABLS1A12060E Rail mounted PSU (DIN) 12 V DC 6.3 A 75 W Content 1 pc(s)

Information

Information 3754616 Schneider Electric ABLS1A12060E Rail mounted PSU (DIN) 12 V DC 6.3 A 75 W Content 1 pc(s)

Conformity certificate

Conformity certificate 3754616 Schneider Electric ABLS1A12060E Rail mounted PSU (DIN) 12 V DC 6.3 A 75 W Content 1 pc(s)

Description

The cost-efficient, switched-mode power supplies of the series Easy Modicon ABLSE are suitable Ideal for simple applications in industry as well as in commercial and residential buildings. The Easy Modicon ABLSE product family is characterized by its compact design and includes power supplies with output voltages of either 12 V DC, 24 V DC or 48 V DC. This 1-phase power supply with a nominal power of 75 W has an input voltage of 100-240 V AC and an output voltage of 12 V DC/6.3 A. The input is located at the bottom of the device and the outputs at the top with an additional LED for status display. The sturdy casing is made of metal and the installation of the power supply is done comfortably by snapping on a DIN rail/DIN rail. In addition, there is a QR code on the housing of the power supply with access to further documentation. Due to the large number of existing product standards and certifications such as UL, EN62368-1, REACH, RoHS suitable for international use. You can also get detailed information on material content, environmental impact and recycling that support your sustainability goals.
