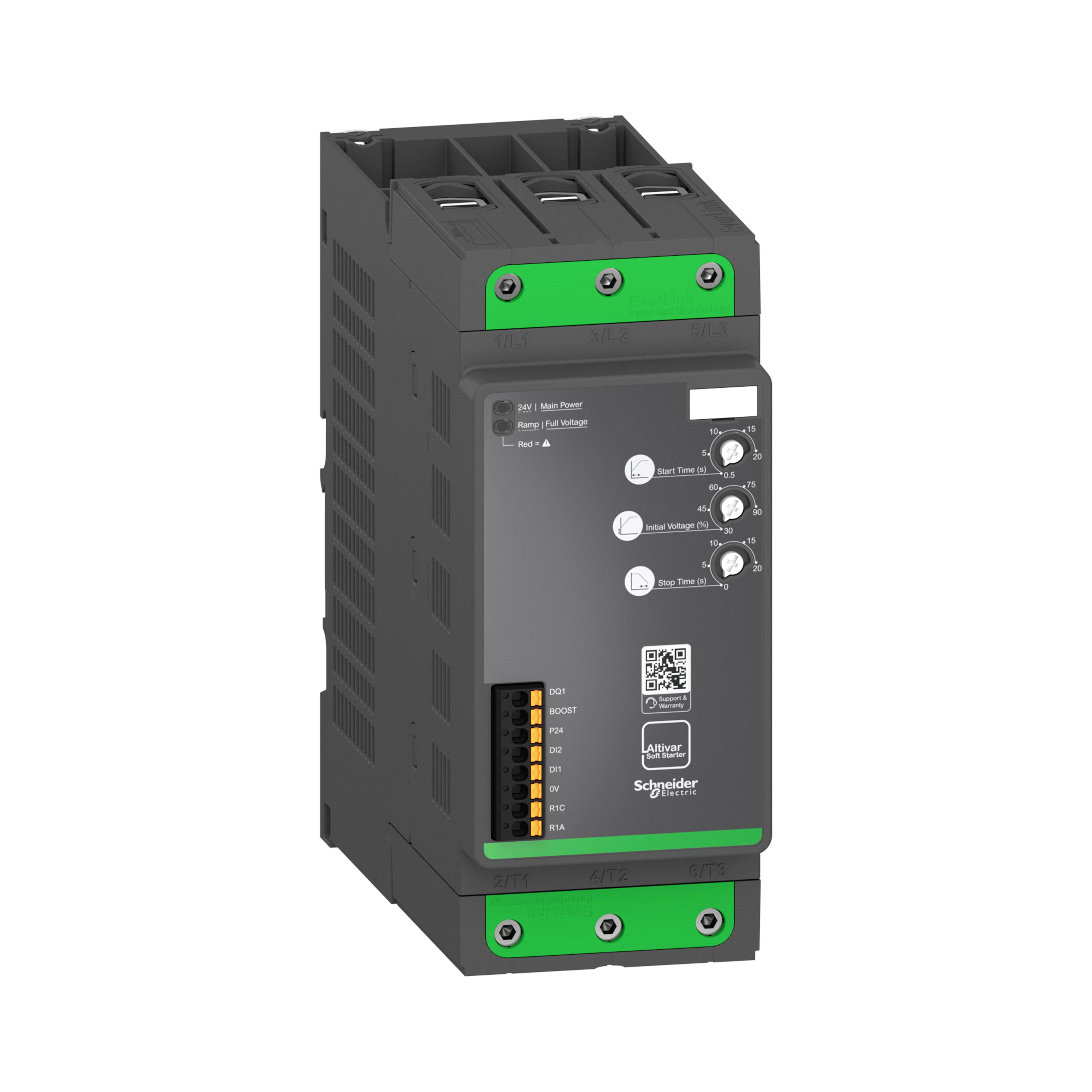

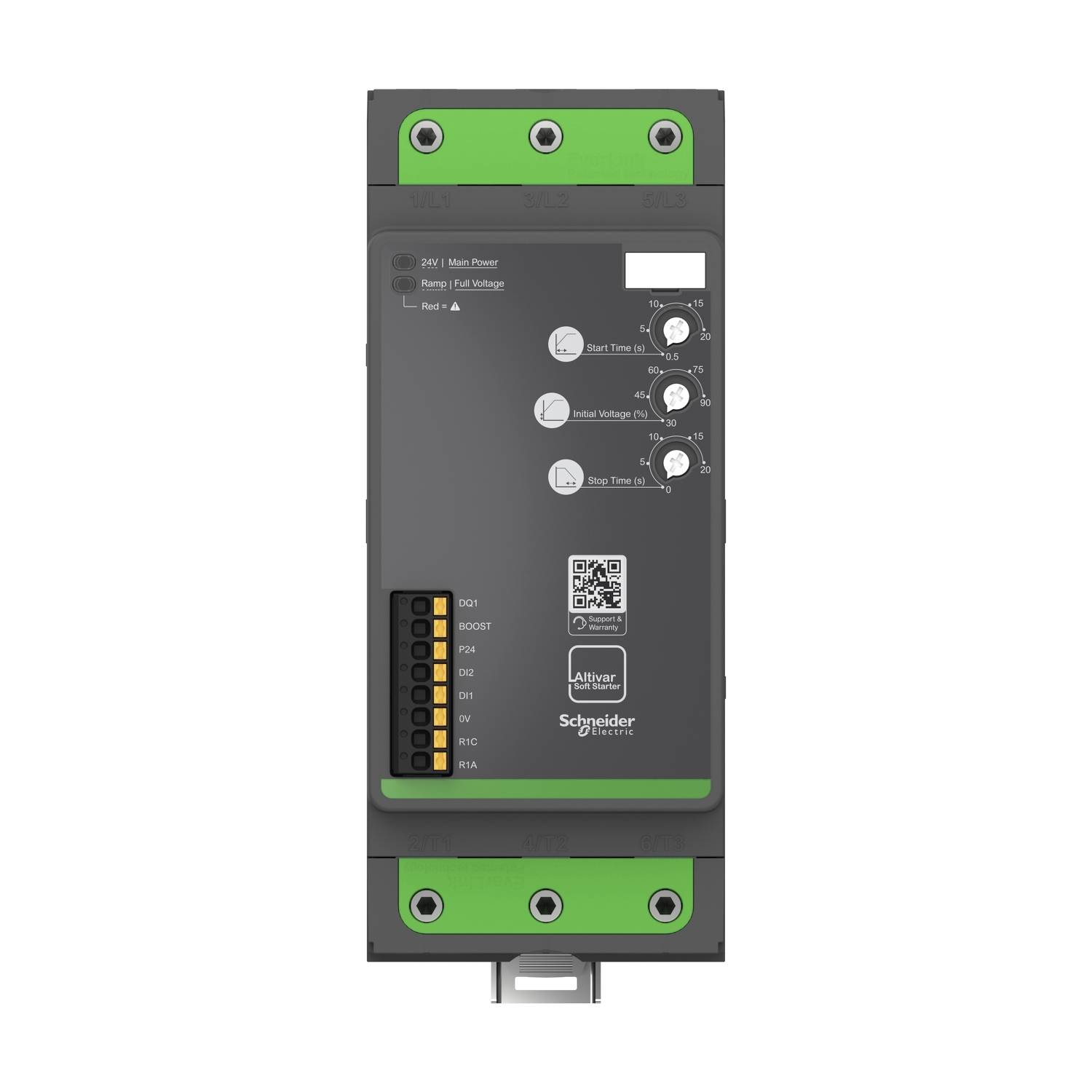

Schneider Electric ATS130N2D80LT Soft starter Motor power at 400 V 45 kW

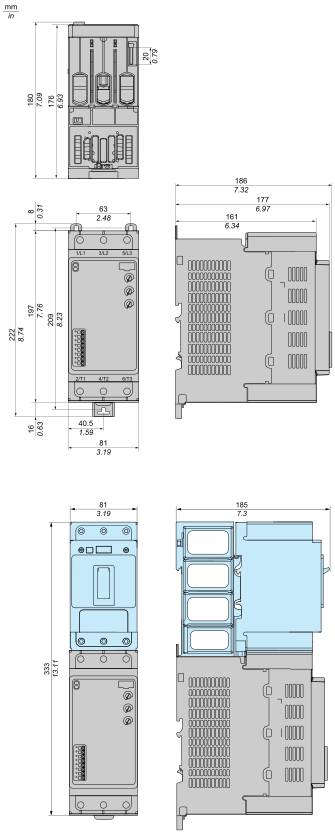

This soft starter is part of the Altivar ATS130 range of soft starters designed to start and stop asynchronous motors with voltages from 200 to 480 V. With a rated operating current of 80A under normal load, it supplies motors from 22 to 45 kW depending on the line voltage. The compact design provides mechanical and electrical flexibility in the design of control panels. ATS130 is maintenance-free and enables an optimized motor management, especially in combination with the TeSys DECA motor circuit-breaker. Everlink power terminals and spring control terminals are included as standard, thus avoiding annual cable re-tightening. The ATS130 soft starter has the same width (80 mm) as the TeSys DECA FRAME 4 motor circuit-breaker. Dimensions are 80 mm (width) x 180 mm (depth) x 222 mm (height) and weight is 2.06 kg. The Altivar ATS130 soft starter is designed for pumps, fans, compressors, conveyors and other simple machines. The soft starter conforms to IEC/EN60947-4-1 standard. It is possible to add a mounting kit for mounting the TeSys DECA frame 3 motor circuit breaker or a fan to increase the number of starts per hour. Several ATS130 soft starters can be mounted side by side on a back panel or on a DIN rail and are compatible with a cabinet depth of 200 mm. The Altivar ATS130 soft starter is maintenance-free and increases operational efficiency during development, production and commissioning.
