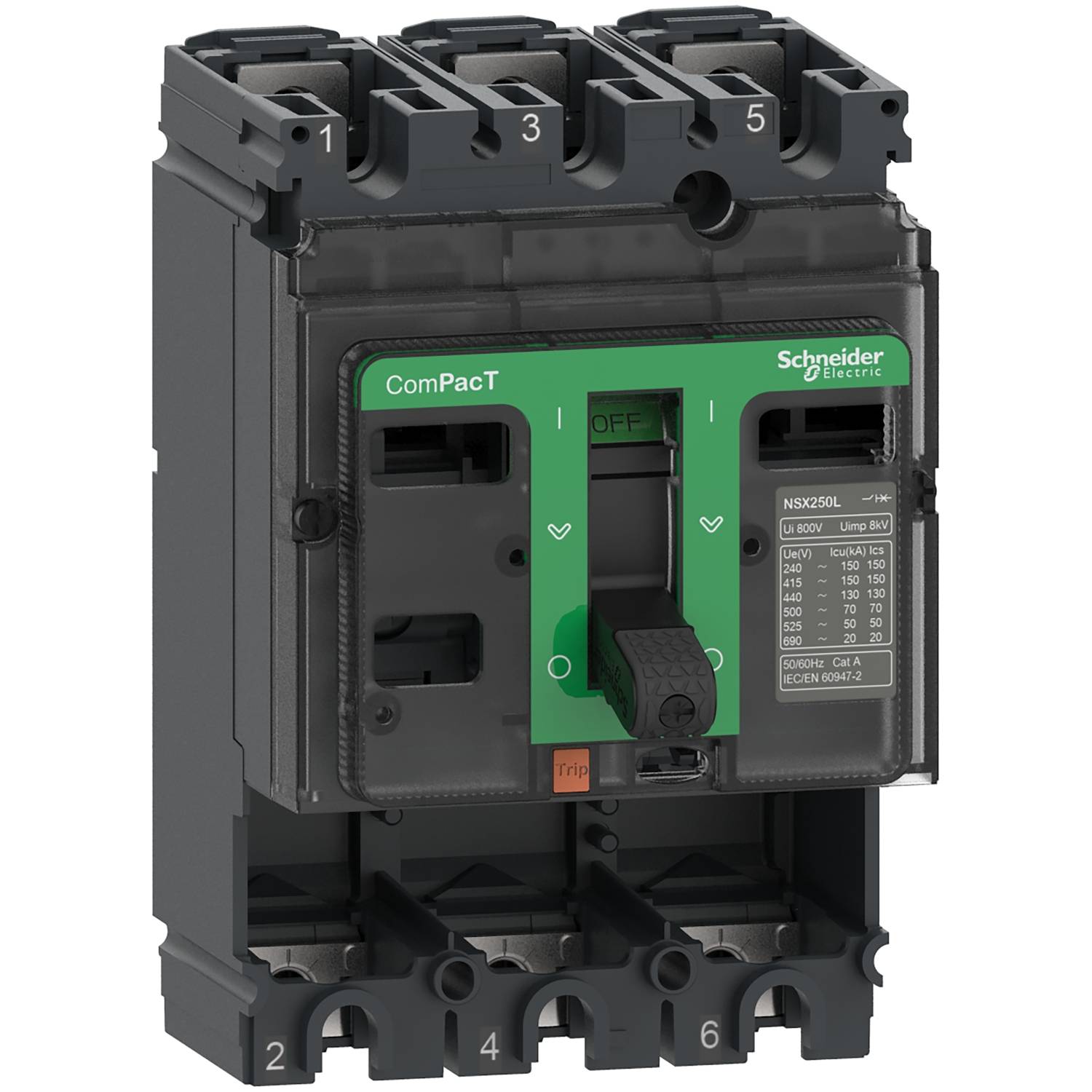

Schneider Electric C10H3 Circuit breaker 1 pc(s) Switching voltage (max.): 690 V AC (W x H x D) 105 x 161 x 86 mm Single
EAN:
Part number:
Item no:
Product type
Circuit breaker
Packaging type
Single
Type
C10H3
No. of pins
3-pin
Switching voltage (max.)
690 V AC
Datasheet (PDF)
Number
Total (€ 339.00 / piece)
€ 339.00
incl. VAT
14-day return policy included
Technical specifications
- Packaging type
Single
- Product type
Circuit breaker
- Type
C10H3
- No. of pins
3-pin
- Switching voltage (max.)
690 V AC
- Depth
86 mm
- Width
105 mm
- Height
161 mm
- Dim
(W x H x D) 105 x 161 x 86 mm
- Content
1 pc(s)
0
0
100 A
3
0
IP40
Front side
FALSE
Screw connection
Toggle
TRUE
70 kA
FALSE
FALSE
TRUE
Built-in device fixed built-in technique
TRUE
FALSE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2927611 Schneider Electric C10H3 Circuit breaker 1 pc(s) Switching voltage (max.): 690 V AC (W x H x D) 105 x 161 x 86 mm Single
Datasheet 2927611 Schneider Electric C10H3 Circuit breaker 1 pc(s) Switching voltage (max.): 690 V AC (W x H x D) 105 x 161 x 86 mm Single
User & Safety Instructions
User & Safety Instructions 2927611 Schneider Electric C10H3 Circuit breaker 1 pc(s) Switching voltage (max.): 690 V AC (W x H x D) 105 x 161 x 86 mm Single
User & Safety Instructions 2927611 Schneider Electric C10H3 Circuit breaker 1 pc(s) Switching voltage (max.): 690 V AC (W x H x D) 105 x 161 x 86 mm Single
Description
This is a 3-pole master switch for Compact NSX100H. Compact NSX is designed to optimize space and power off for all standard and special applications. This basic switch is supplied without tripping unit and is compatible regardless of the type of tripping device. The ICU breaking capacity is 70 kA at 415 VAC, 50/60 Hz. The operating voltage is 690 VAC 50/60 Hz (limited to 440 VAC 50/60 Hz if differential current protection is available). It can be equipped with a variety of optional functions and accessories. The dimensions are 105 mm x 161 mm x 86 mm. It ensures compliance with international standards (IEC 60947), CCC, EAC and marine specifications. Compact NSX100H is part of Schneider Electric's EcoStruxure power architecture.
This text is machine translated.
This text is machine translated.
