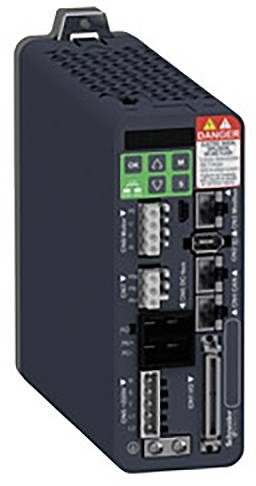

Schneider Electric Frequency inverter LXM28EU10M3X 1000 W

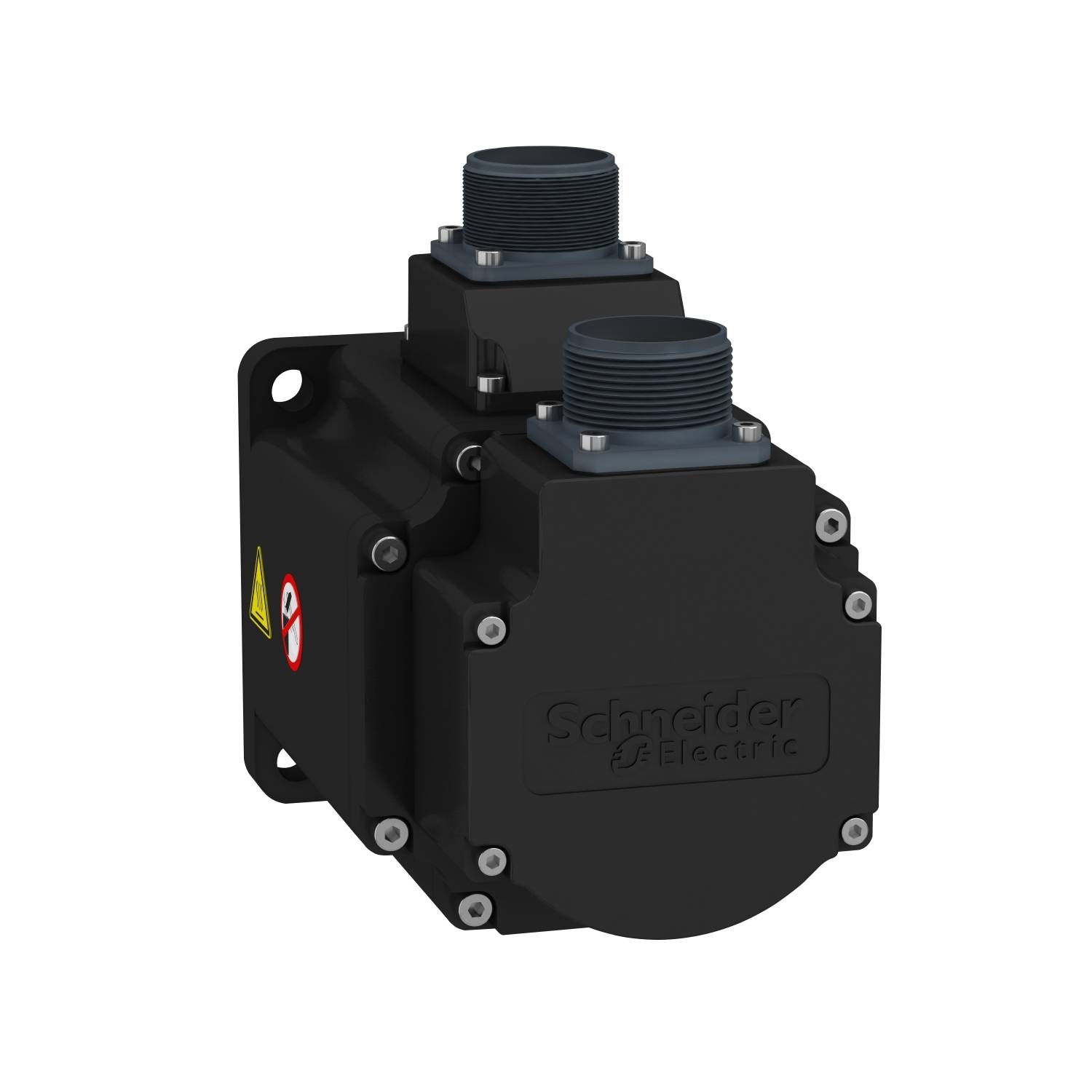

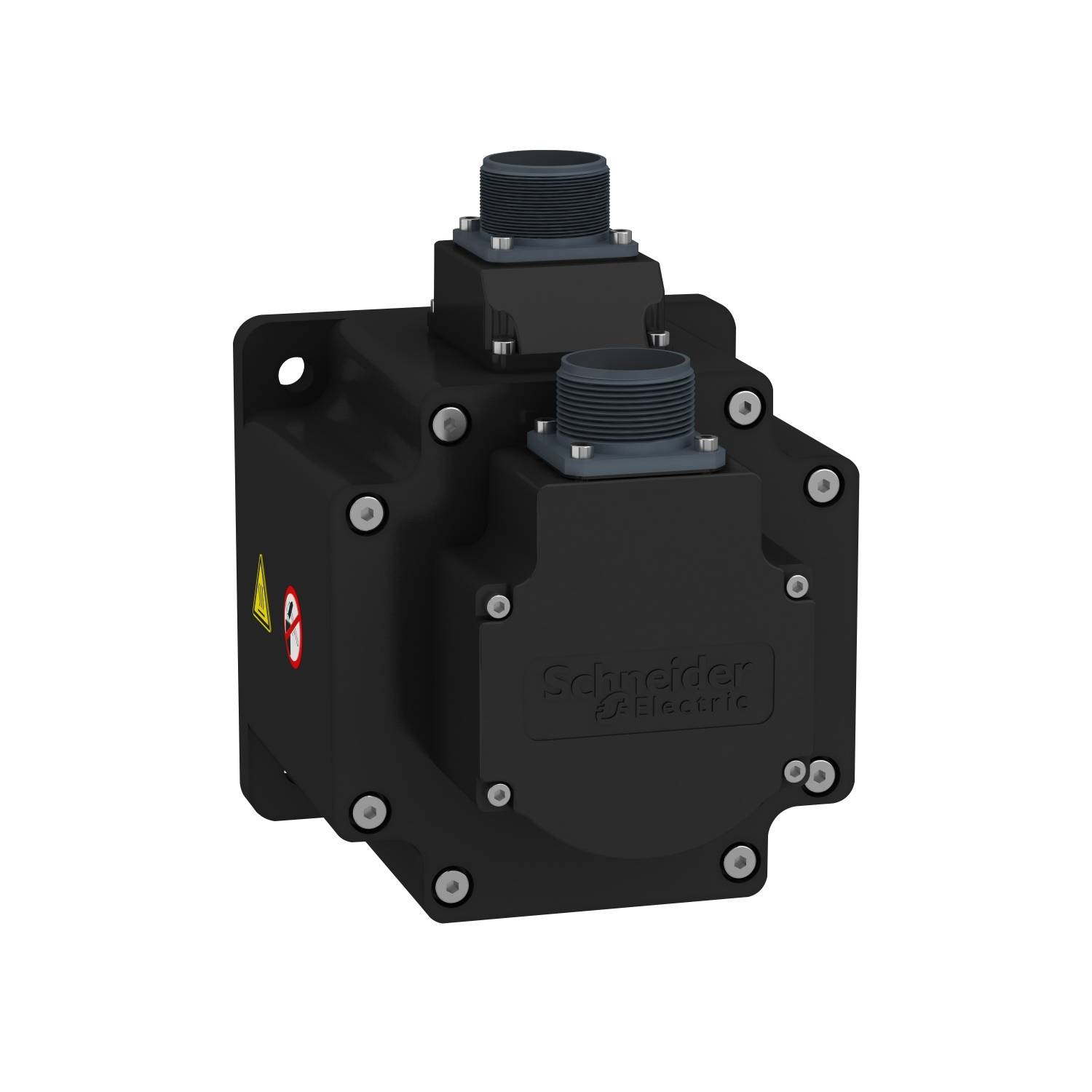

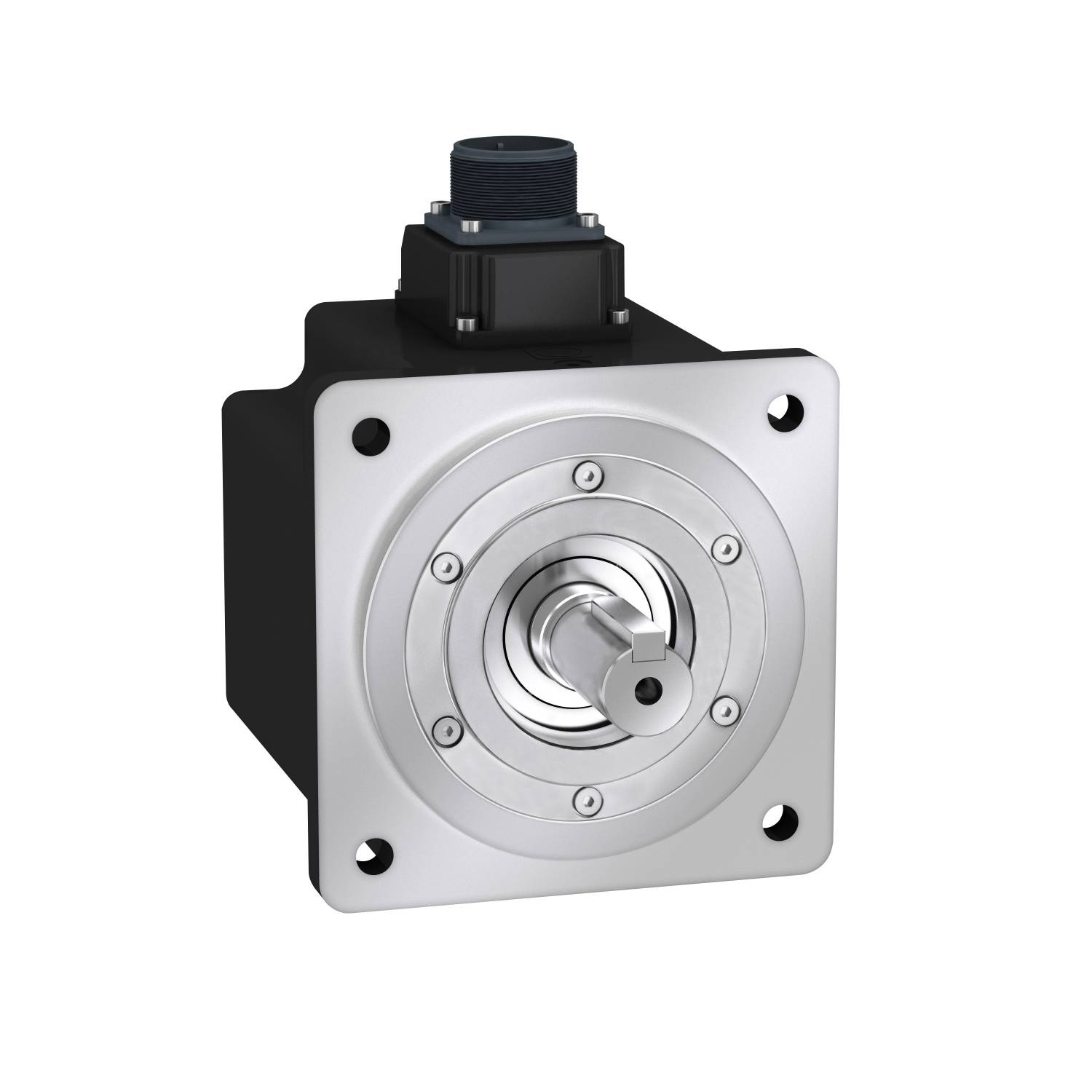

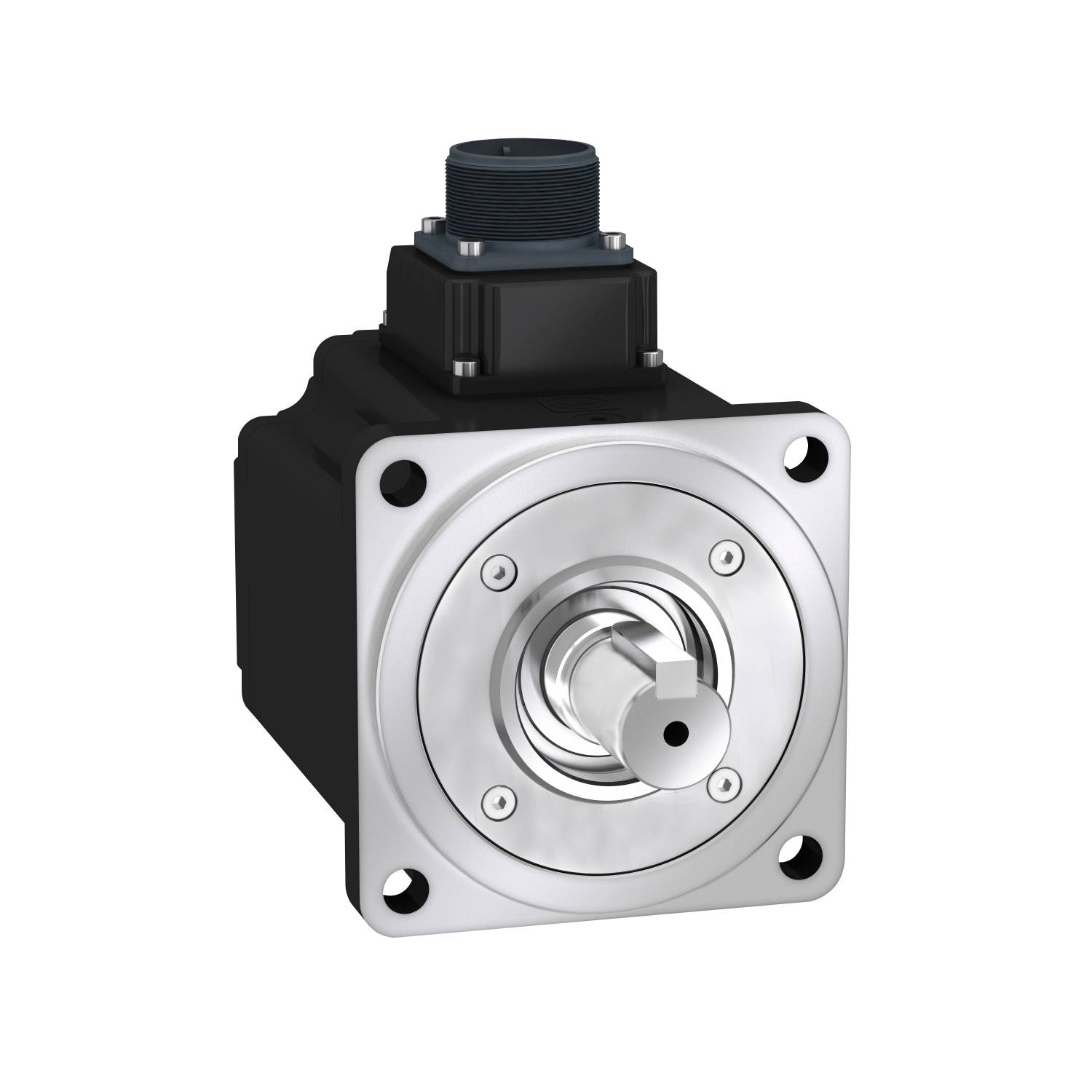

LXM28 servo amplifiers in the Lexium 28 servo drives series. These servo drives offer predefined combinations of amplifiers and motors for fulfilling motion-control applications, optimize the performance and offer a very simple integration & commissioning in your plant. They include numerous functions such as auto tuning, position, speed and torque control as well as the position sequence mode. Their compact dimensions allow a simple installation even in narrow control cabinets. The supply voltage of this servo controller is 200-240 VAC from single or three-phase networks. A nominal power of 1000 W (1.0 kW) is provided at the output. The interfaces are available: PTI/PTO, analogue 2 inputs (+-10 V) and 2 outputs (+- 8 V), digitally configurable 8 inputs and 6 outputs. The field bus connection and motion control are made from a PLCopen library via EtherCAT. The safety function STO is implemented up to the PL d/SIL2. An internal braking resistor is available to absorb the braking energy. For frequent braking, an external resistor can also be connected. One output enables the control of the holding brake. The associated servo motors of the type BCH2 of the series Lexium 28 must be used for operation. Thanks to the Green Premium eco-label, you can get detailed information on material content, environmental impact and recycling management that support your sustainability goals.

This text is machine translated.
