Name: Schneider Electric LC1D12ACD Electrical contactor 3 makers 5.5 kW + diode Piece 1 pc(s)
Brand: Schneider Electric
SKU: 3412646
Availability: BackOrder

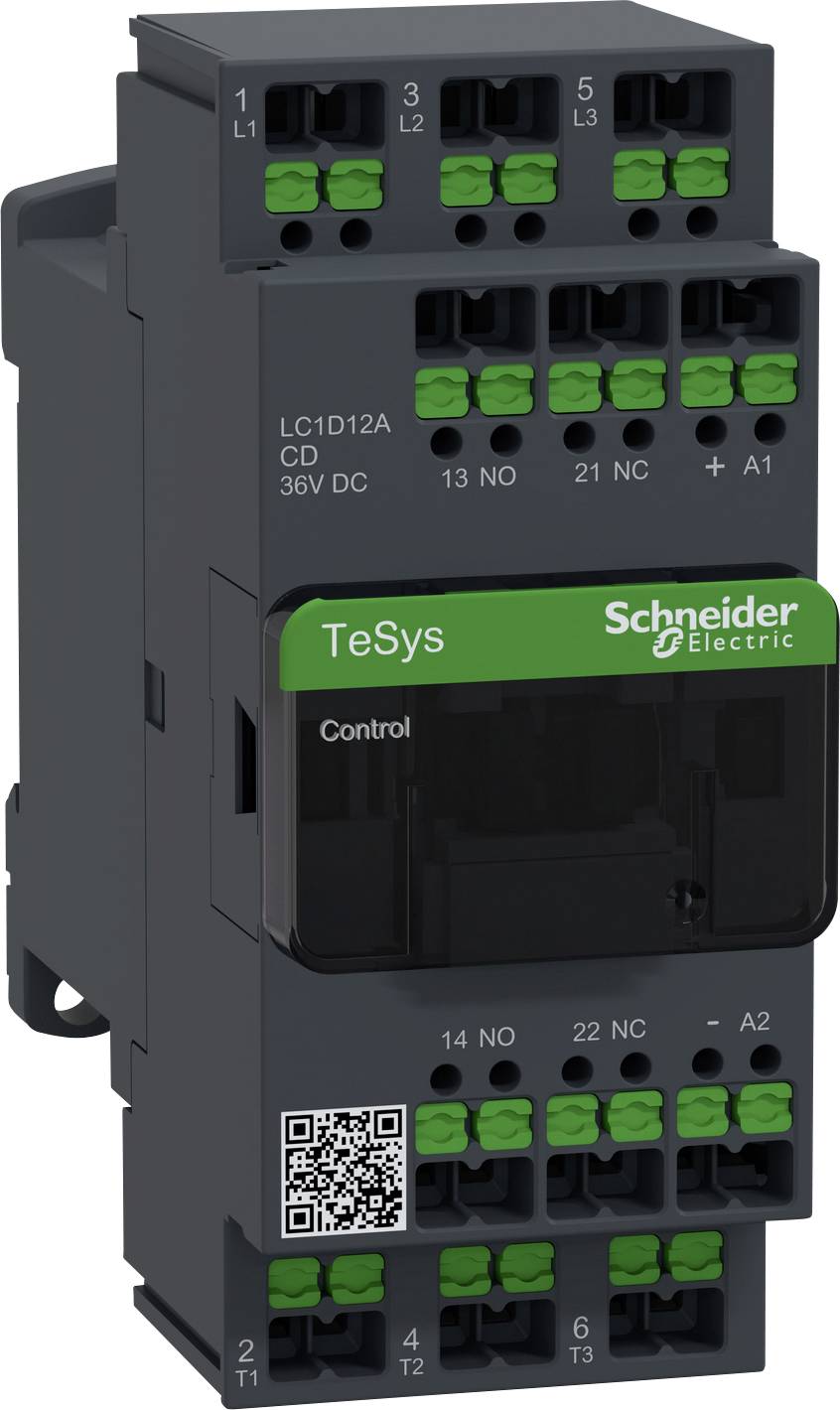

Industrial relays by Schneider Electric with green lettering 'TeSys'. Top side: various connection terminals and a QR code at the bottom.

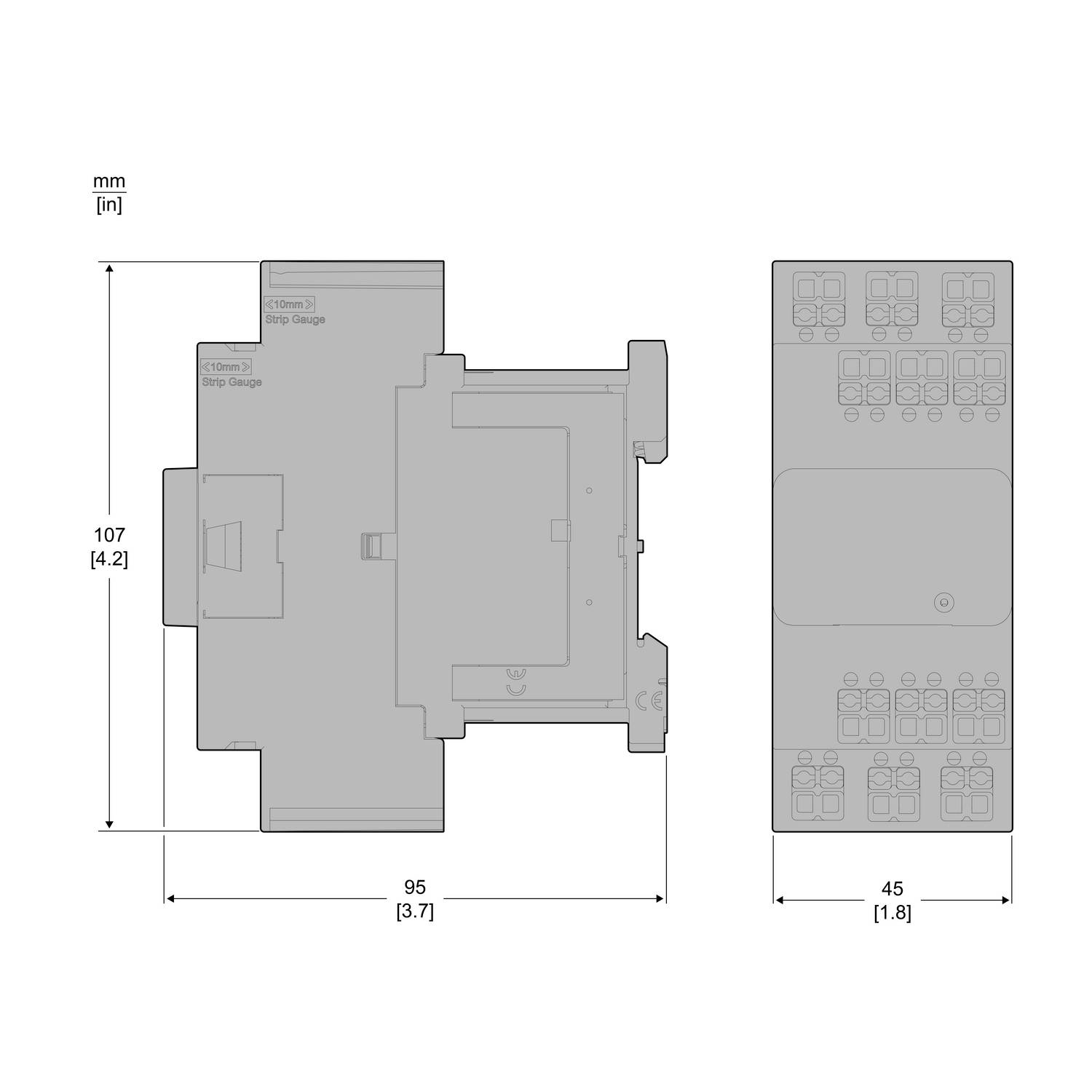

DIN Rail Module Dimensions: Height 107 mm (4.2 inches), Width 95 mm (3.7 inches), Depth 45 mm (1.8 inches). Top and side views.

1/2

Product type

Electrical contactor

No. of pins

3-pin

Power

5.5 kW

Connection

Snap-in

Packaging type

Piece

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Fri 6 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 99.99 / piece)

€ 99.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Contactor LC1D 3p, +1S+1Ö, 5.5 kW, 12 A, 400 V AC3, Coil 36 V DC, snap-in

TeSys DECA contactors and motor circuit breakers with innovative snap-in connection technology
The snap-in connection terminal closes with one click once the conductor has been correctly inserted
Visual and haptic feedback of the wiring
Flexible and rigid conductor can be inserted without wire end sleeve
Tool-free and intuitive to use
Secure wiring even in case of strong vibrations, no retightening needed
"Ready to Robot" e.g. for automatic control cabinet construction

Technical specifications

Packaging type: Piece

Product type: Electrical contactor

Type: LC1D12ACD

No. of pins: 3-pin

Contact type: 3 makers

Control voltage (min.): 36 V DC

Control voltage (max.): 36 V DC

Control voltage range: 36 - 36 V DC

Permanent current (max.): 12 A

: 5.5 kW

Features: + diode

Connection: Snap-in

Width: 45 mm

Height: 107 mm

Depth: 95 mm

Dim: (W x H x D) 45 x 107 x 95 mm

Content: 1 pc(s)

: 45 mm

: 107 mm

: 86 mm

: FALSE

: 5.5 kW

: 3

: 0

: 1

: 1

: 12 A

: 25 A

: 36-36 V

: Other

: DC

UKCA: not relevant
