Name: Schneider Electric LC1D18AJD Electrical contactor 3 makers + protection diode 1 pc(s)
Brand: Schneider Electric
SKU: 3412629
Availability: BackOrder

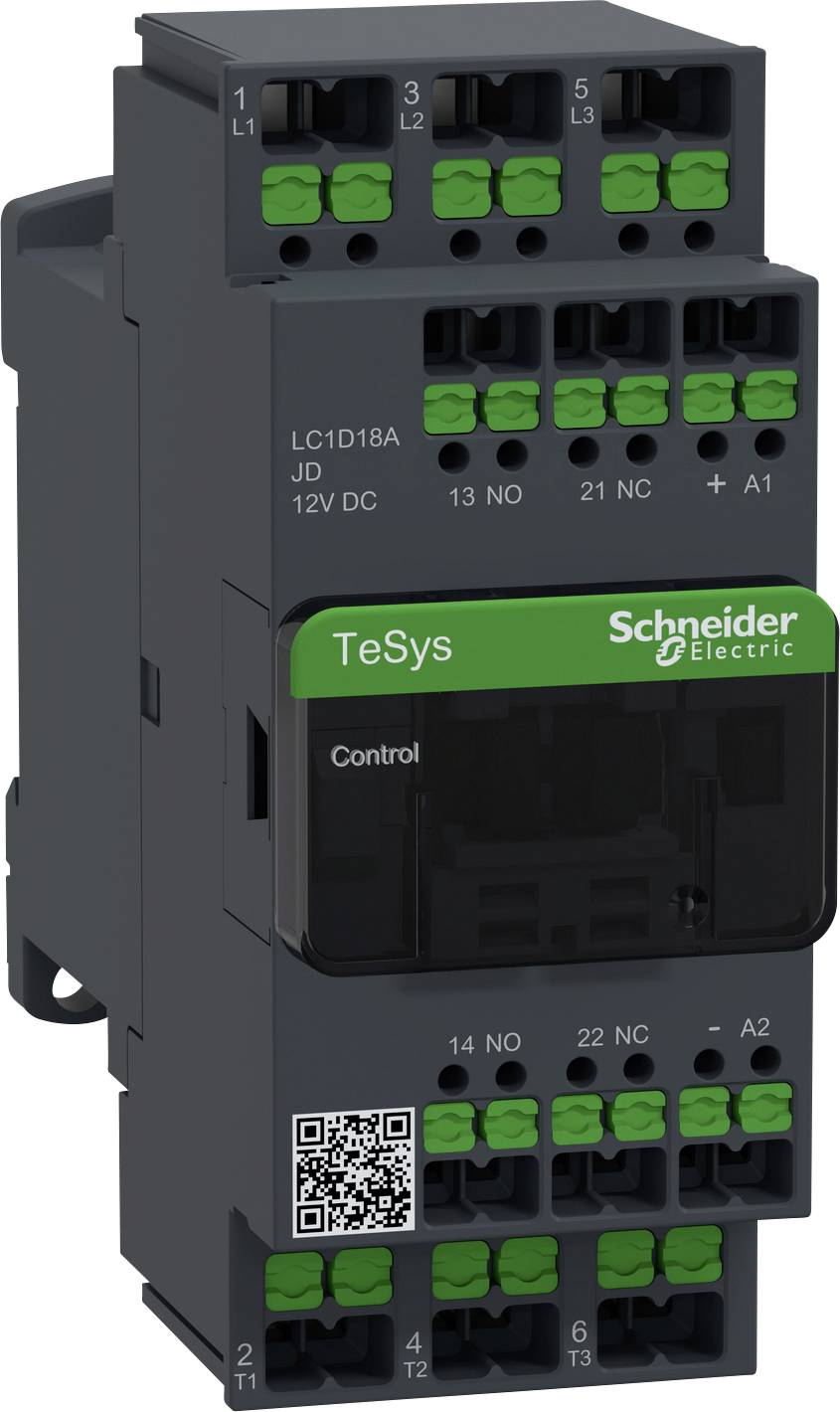

'Schneider Electric TeSys Contactor' with green terminals and QR code at the bottom. Model: LC1D18A, 12V DC control, marked with 'Control'.

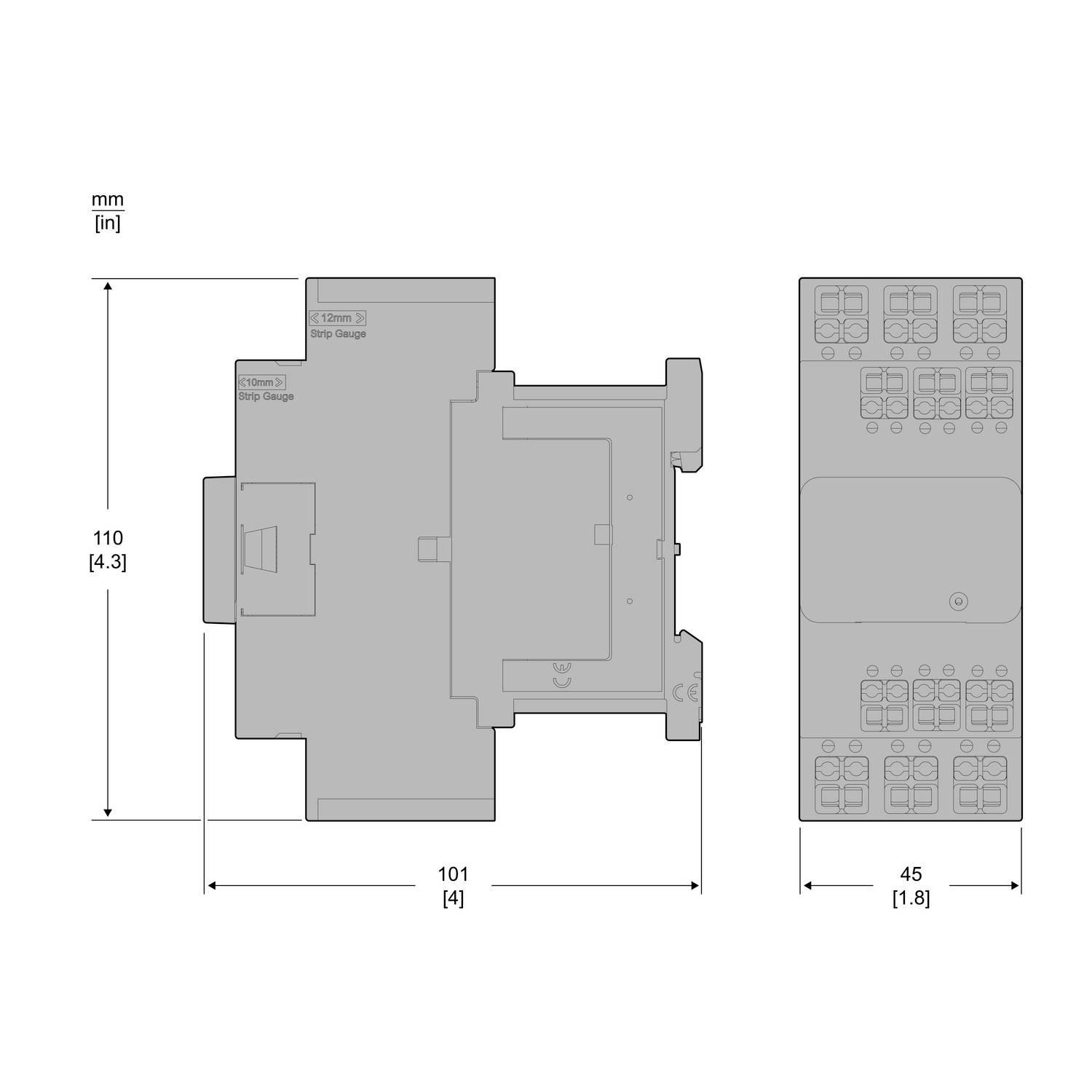

Dimensions and connections of an electronic device in millimetres: 110 mm x 101 mm x 45 mm.

1/2

Product type

Electrical contactor

No. of pins

3-pin

Connection

Snap-in

Type

LC1D18AJD

Contact type

3 makers

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Fri 6 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 129.99 / piece)

€ 129.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Contactor LC1D 3p, +1S+1Ö, 7.5 kW, 18 A, 400 V AC3, Coil 12 V DC, snap-in

TeSys DECA contactors and motor circuit breakers with innovative snap-in connection technology
The snap-in connection terminal closes with one click once the conductor has been correctly inserted
Visual and haptic feedback of the wiring
Flexible and rigid conductor can be inserted without wire end sleeve
Tool-free and intuitive to use
Secure wiring even in case of strong vibrations, no retightening needed
"Ready to Robot" e.g. for automatic control cabinet construction

Technical specifications

Product type: Electrical contactor

Type: LC1D18AJD

No. of pins: 3-pin

Contact type: 3 makers

Control voltage (max.): 12 V DC

Control voltage range: 12 V DC (max)

Permanent current (max.): 18 A

Features: + protection diode

Connection: Snap-in

Width: 45 mm

Height: 110 mm

Depth: 95 mm

Dim: (W x H x D) 45 x 110 x 95 mm

Content: 1 pc(s)

: 45 mm

: 110 mm

: 101 mm

: FALSE

: 7.5 kW

: 3

: 0

: 1

: 1

: 18 A

: 32 A

: 12-12 V

: Other

: DC

UKCA: yes

Variants(All information include VAT, plus shipping costs)

Power

Schneider Electric LC1D09AB7 Electrical contactor 3 makers 4 kW 1 pc(s)

Item no:3412621

Dispatches on Mon 2 Nov

61 Piece(s)Conrad Electronic

4 kW

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 36.99^*

Schneider Electric LC1D09ABD Electrical contactor 3 makers 4 kW + diode 1 pc(s)

Item no:3412623

Dispatches on Mon 2 Nov

173 Piece(s)Conrad Electronic

4 kW

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 75.99^*

Schneider Electric LC1D09ABL Electrical contactor 3 makers 4 kW + diode Single 1 pc(s)

Item no:3412626

Dispatches on Mon 2 Nov

3 Piece(s)Conrad Electronic

4 kW

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 65.99^*

Schneider Electric LC1D09ABNE Electrical contactor 3 makers 4 kW + diode 1 pc(s)

Item no:3412628

Dispatches on Fri 6 Nov

Conrad Electronic

4 kW

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 97.99^*

Schneider Electric LC1D09AC7 Electrical contactor 3 makers 4 kW Piece 1 pc(s)

Item no:3412631

Dispatches on Fri 6 Nov

Conrad Electronic

4 kW

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 49.99^*

Schneider Electric LC1D09ACD Electrical contactor 3 makers 4000 W + protection diode Piece 1 pc(s)

Item no:3412633

Dispatches on Fri 6 Nov

Conrad Electronic

4000 W

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 95.99^*

Schneider Electric LC1D09AD7 Electrical contactor 3 makers 4 kW + auxiliary contact Piece 1 pc(s)

Item no:3412526

Dispatches on Thu 12 Nov

Conrad Electronic

4 kW

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 49.99^*

Schneider Electric LC1D09AE7 Electrical contactor 3 makers 4 kW 1 pc(s)

Item no:3412527

Dispatches on Fri 6 Nov

Conrad Electronic

4 kW

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 47.99^*

Schneider Electric LC1D09AED Electrical contactor 3 makers 4 kW + protection diode 1 pc(s)

Item no:3412528

Dispatches on Fri 6 Nov

Conrad Electronic

4 kW

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 95.99^*

Schneider Electric LC1D09AEHE Electrical contactor 3 makers 4 kW + auxiliary contact 1 pc(s)

Item no:3412529

Dispatches on Fri 6 Nov

Conrad Electronic

4 kW

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 97.99^*

Documents & Downloads

Datasheet

Datasheet 3412629 Schneider Electric LC1D18AJD Electrical contactor 3 makers + protection diode 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3412629 Schneider Electric LC1D18AJD Electrical contactor 3 makers + protection diode 1 pc(s)

Description

Power protection TeSys DECA. 3 pin, 3 normally open contact. Additional auxiliary contacts - 1 NO + 1 NC, rated operating power at AC-3, 400 V 7.5 kW, rated operating current Ie at AC-3, 400 V 18 A, coil 12 V DC. Dimensions (WxHxD) 45x110x95 mm, weight 0.32 kg. CATEGORY AC-3, AC-1, AC-4. Integrated bi-directional amplitude limiter diode. Fast, safe and maintenance-free power connection with Snap In connection terminal Suitable for security applications thanks to mechanically coupled contacts and mirror contacts.

This text is machine translated.
