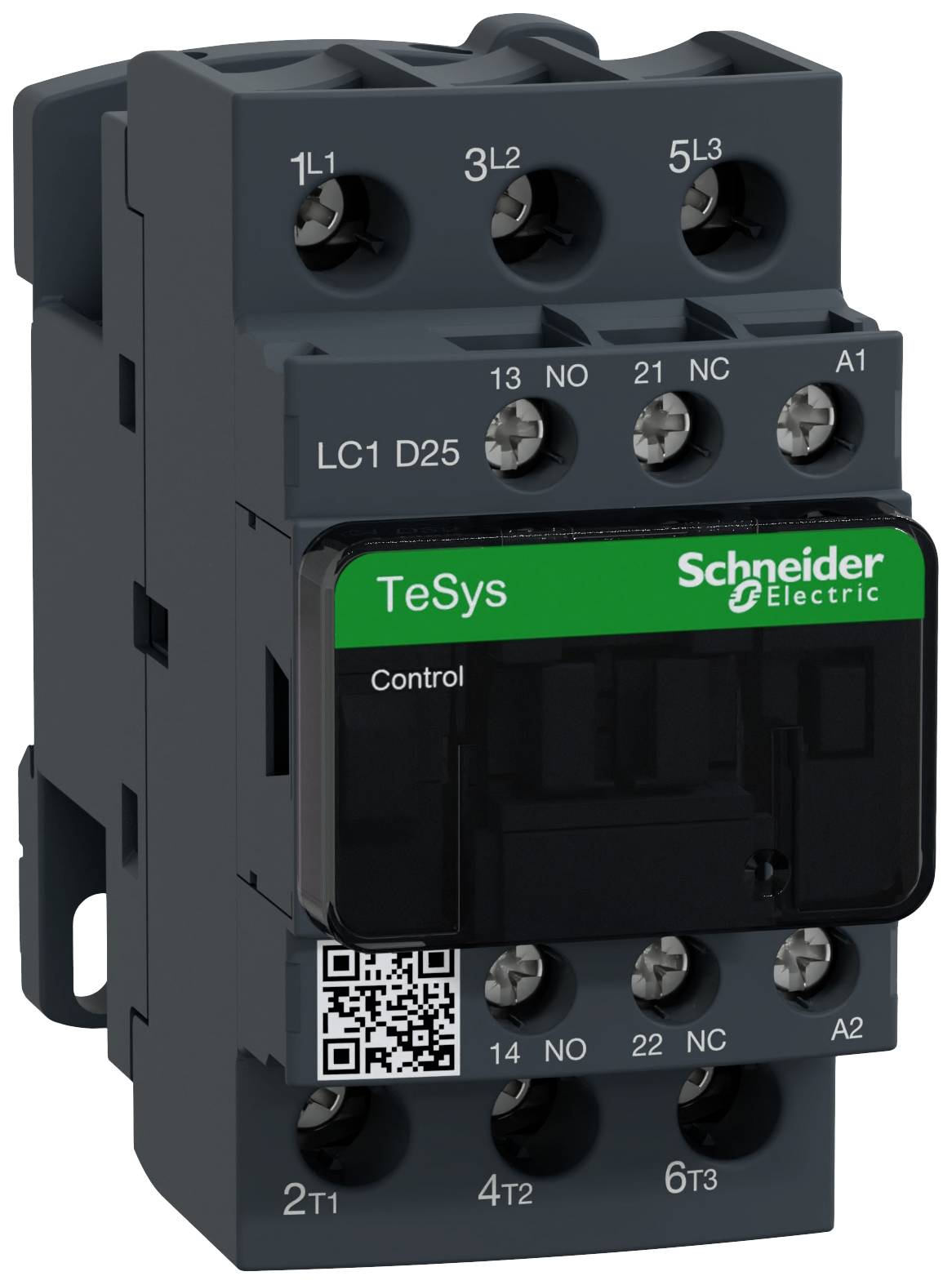

Contactor by Schneider Electric from the TeSys series, Model LC1D25, with multiple connection terminals. It has a QR code on the front.

Contactor by Schneider Electric from the TeSys series, Model LC1D25, with multiple connection terminals. It has a QR code on the front.

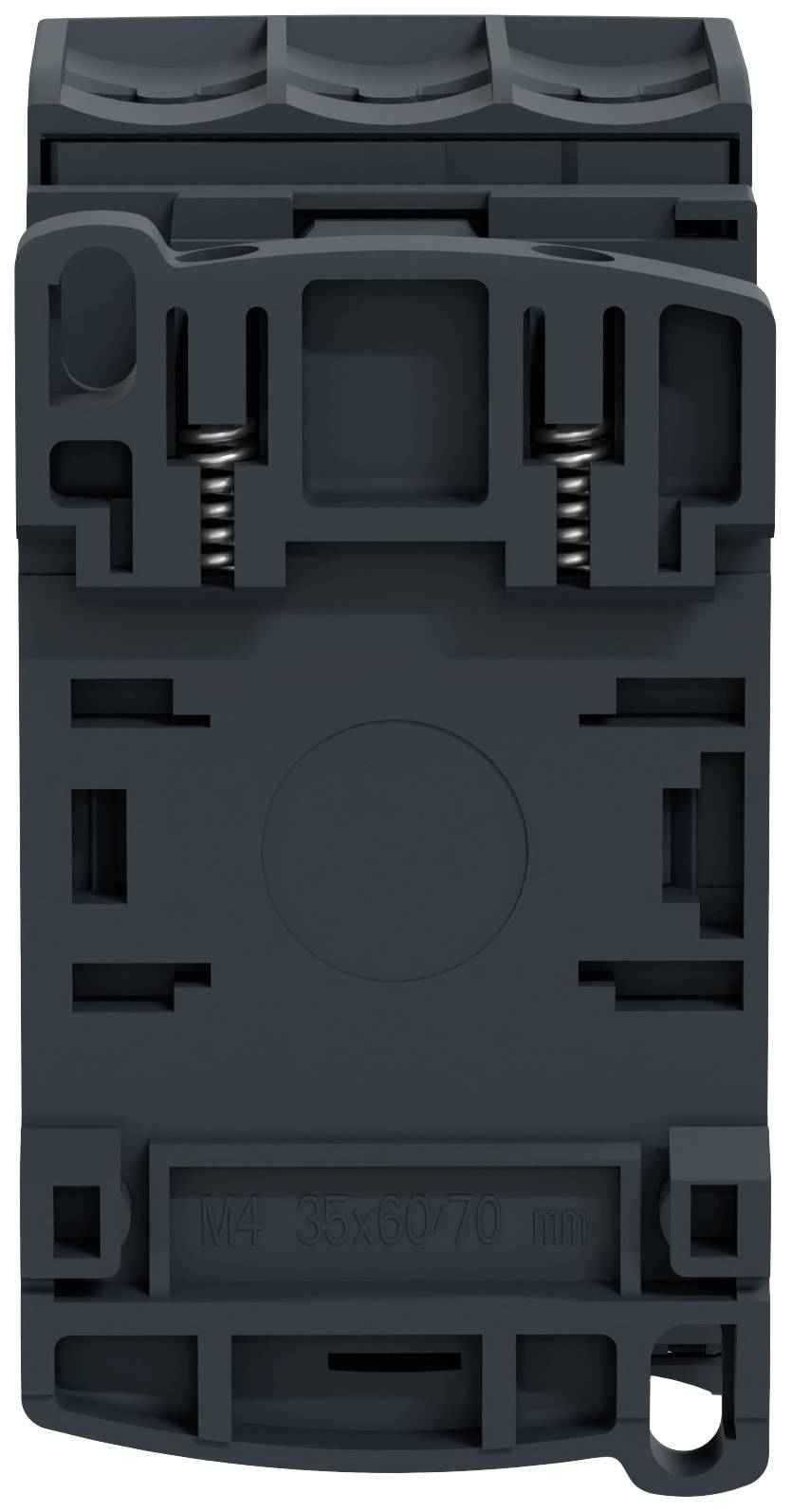

A black plastic adapter with plug connections and springs, typically used for mounting electrical devices on rails.

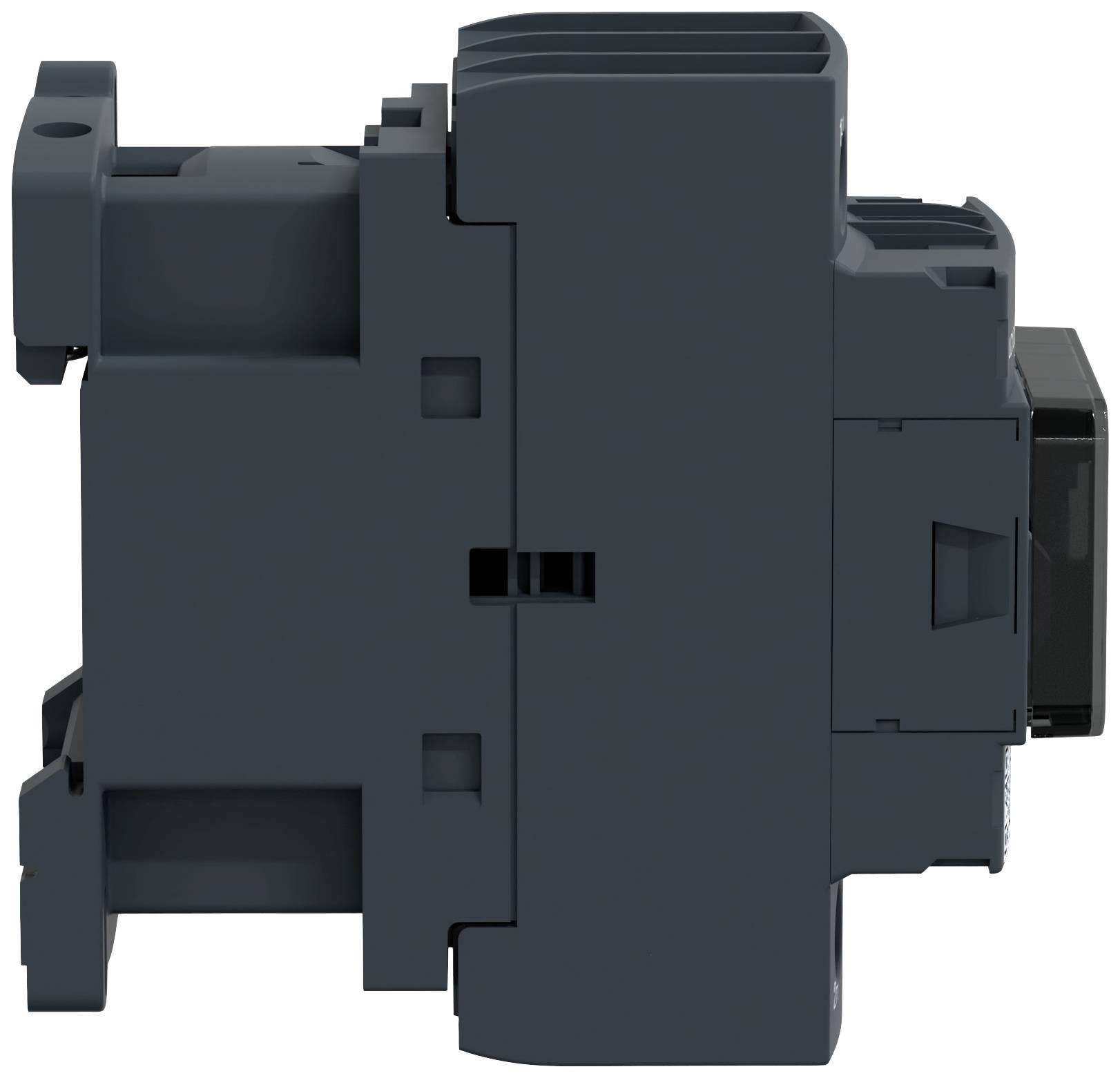

A black electrical switch with a ridged edge and slender lines, side view.

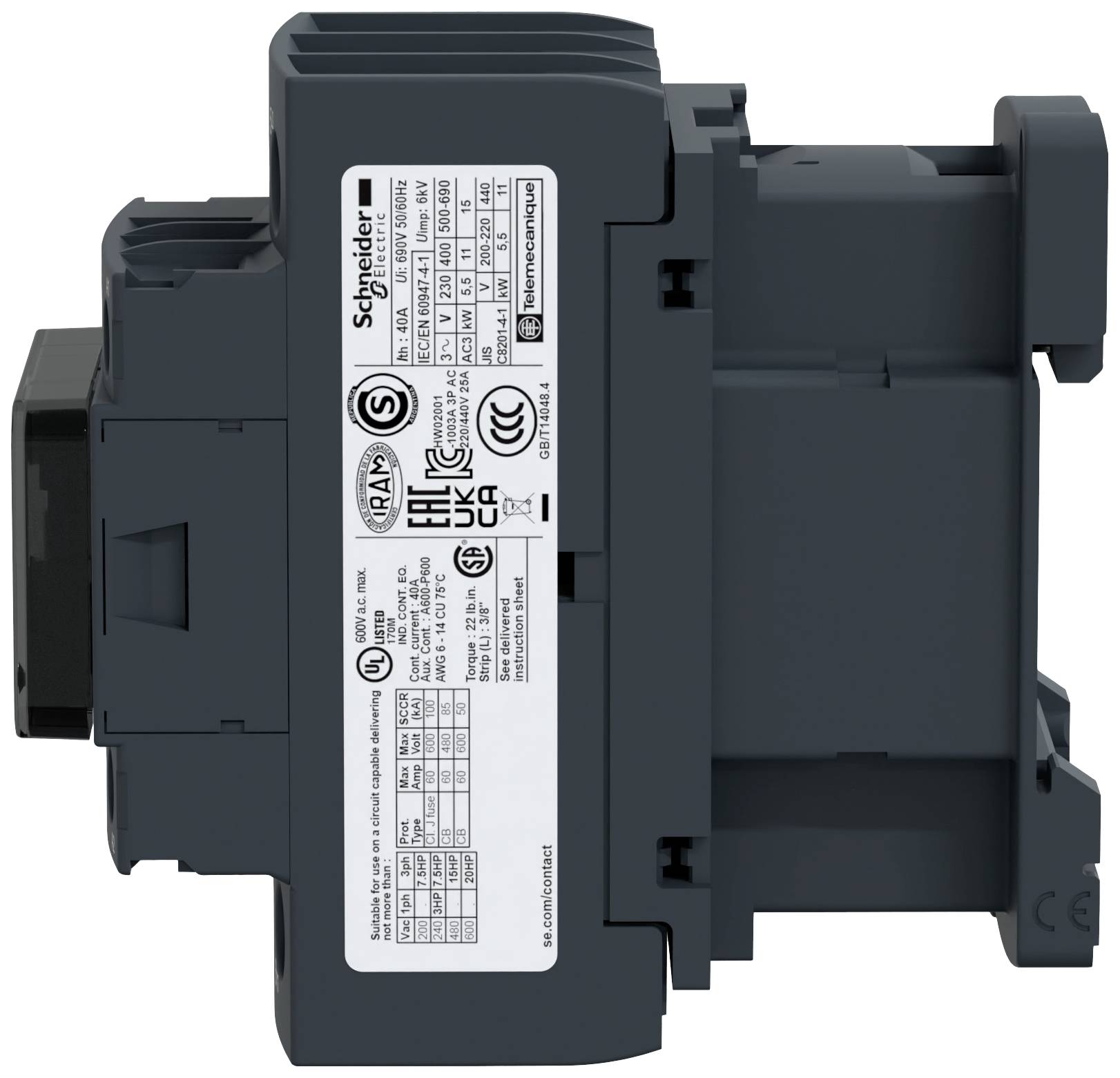

Grey electric power switch with product label; various certification marks visible.

1/4

Product type

Electrical contactor

No. of pins

3-pin

Power

11 kW

Connection

Screw terminal

Type

LC1D25F7

Datasheet (PDF)

Schneider Electric

Fast track dispatch on Wed 14 Oct

2 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 91.99 / piece)

€ 91.99

incl. VAT

Only 2 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Schneider Electric contactor LC1D25F7 3polig 25A 110V 50/60HZ 1S/1OE

TeSys D contactor 3 pole (3 NO contact)
For motor control applications up to 25 A/690 V AC-3/3e (11 kW at 400 V)
110-V-50/60-Hz AC coil
Built-in 1 NO contacts + 1 auxiliary NC contacts (certified as a mirror opener)
Connection via screw terminals
For operating rates up to 3600 cycles/hour and environments up to 60 °C.

Technical specifications

Product type: Electrical contactor

Type: LC1D25F7

No. of pins: 3-pin

Contact type: 3 makers

Control voltage (min.): 110 V AC

Control voltage (max.): 110 V AC

Control voltage range: 110 - 110 V AC

Switching voltage (max.): 690 V AC

Permanent current (max.): 40 A

: 11 kW

Features: + auxiliary contact

Connection: Screw terminal

Max. temperature: 60 °C

Width: 45 mm

Height: 85 mm

Depth: 92 mm

Dim: (W x H x D) 45 x 85 x 92 mm

Content: 1 pc(s)

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1979059 Schneider Electric LC1D25F7 Electrical contactor 3 makers 11 kW + auxiliary contact 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1979059 Schneider Electric LC1D25F7 Electrical contactor 3 makers 11 kW + auxiliary contact 1 pc(s)

Description

TeSys D contactor 3-pole (3 NO contact) for motor control applications up to 25 A/690 V AC-3/3e (11 kW at 400 V). It features a 110 V 50/60 Hz AC coil, integrated 1 NO contacts + 1 auxiliary NC contacts (Mirror certified), connection via screw terminals. For operating rates up to 3600 cycles/hour and environments up to 60 °C it offers a high reliability and durability.

This text is machine translated.

Description

TeSys D contactor 3-pole (3 NO contact) for motor control applications up to 25 A/690 V AC-3/3e (11 kW at 400 V). It features a 110 V 50/60 Hz AC coil, integrated 1 NO contacts + 1 auxiliary NC contacts (Mirror certified), connection via screw terminals. For operating rates up to 3600 cycles/hour and environments up to 60 °C it offers a high reliability and durability.

This text is machine translated.

Frequently Bought Together

(^*All information is plus legal VAT)

This article

Schneider Electric LC1D25F7 Electrical contactor 3 makers 11 kW + auxiliary contact 1 pc(s)

Schneider Electric LC1D25F7 Electrical contactor 3 makers 11 kW + auxiliary contact 1 pc(s)

Conrad Electronic

€ 91.99^*

Schneider Electric LADS2 LADS2 TDR block Multifunction 1 pc(s) Time range: 1.00 - 30.00 s 1 maker

Schneider Electric LADS2 LADS2 TDR block Multifunction 1 pc(s) Time range: 1.00 - 30.00 s 1 maker

Conrad Electronic

€ 93.99^*

Schneider Electric LADN31 LADN31 Auxiliary switch block (L x W x H) 42 x 44 x 48 mm Multicolour 1 pc(s) Piece

Schneider Electric LADN31 LADN31 Auxiliary switch block (L x W x H) 42 x 44 x 48 mm Multicolour 1 pc(s) Piece

Conrad Electronic

€ 19.99^*

Schneider Electric LADN22 Auxiliary switch module 2 makers, 2 breakers 690 W 690 V 10 A 1 pc(s)

Schneider Electric LADN22 Auxiliary switch module 2 makers, 2 breakers 690 W 690 V 10 A 1 pc(s)

Conrad Electronic

€ 12.99^*

Total price:

€ 218.96^*

Frequently Bought Together

(^*All information is plus legal VAT)

This article

Schneider Electric LC1D25F7 Electrical contactor 3 makers 11 kW + auxiliary contact 1 pc(s)

Schneider Electric LC1D25F7 Electrical contactor 3 makers 11 kW + auxiliary contact 1 pc(s)

Conrad Electronic

€ 91.99^*

Schneider Electric LADS2 LADS2 TDR block Multifunction 1 pc(s) Time range: 1.00 - 30.00 s 1 maker

Schneider Electric LADS2 LADS2 TDR block Multifunction 1 pc(s) Time range: 1.00 - 30.00 s 1 maker

Conrad Electronic

€ 93.99^*

Schneider Electric LADN31 LADN31 Auxiliary switch block (L x W x H) 42 x 44 x 48 mm Multicolour 1 pc(s) Piece

Schneider Electric LADN31 LADN31 Auxiliary switch block (L x W x H) 42 x 44 x 48 mm Multicolour 1 pc(s) Piece

Conrad Electronic

€ 19.99^*

Schneider Electric LADN22 Auxiliary switch module 2 makers, 2 breakers 690 W 690 V 10 A 1 pc(s)

Schneider Electric LADN22 Auxiliary switch module 2 makers, 2 breakers 690 W 690 V 10 A 1 pc(s)

Conrad Electronic

€ 12.99^*

Total price:

€ 218.96^*

What kind of Contactors are you looking for?

Accessories

(^*All information is plus legal VAT)

The necessary accessories are required to use the article as described.

Schneider Electric LADN31 LADN31 Auxiliary switch block (L x W x H) 42 x 44 x 48 mm Multicolour 1 pc(s) Piece

Schneider Electric LADN31 LADN31 Auxiliary switch block (L x W x H) 42 x 44 x 48 mm Multicolour 1 pc(s) Piece

Conrad Electronic

€ 19.99^*

Schneider Electric LADN22 Auxiliary switch module 2 makers, 2 breakers 690 W 690 V 10 A 1 pc(s)

Schneider Electric LADN22 Auxiliary switch module 2 makers, 2 breakers 690 W 690 V 10 A 1 pc(s)

Conrad Electronic

€ 12.99^*

Schneider Electric LADT2 LADT2 TDR block Multifunction 1 pc(s) Time range: 0.10 - 30.00 s

Schneider Electric LADT2 LADT2 TDR block Multifunction 1 pc(s) Time range: 0.10 - 30.00 s

Conrad Electronic

€ 79.99^*

Schneider Electric LADN11 Auxiliary switch module 1 maker, 1 breaker 690 W 690 V 10 A + auxiliary contact 1 pc(s)

Schneider Electric LADN11 Auxiliary switch module 1 maker, 1 breaker 690 W 690 V 10 A + auxiliary contact 1 pc(s)

Conrad Electronic

€ 11.99^*

Schneider Electric LAD9V2 Locking system 1 pc(s) Piece

Schneider Electric LAD9V2 Locking system 1 pc(s) Piece

Conrad Electronic

€ 11.99^*

-25%

Schneider Electric LAD4RCU Contactor RC circuit + RC circuit Piece 1 pc(s)

Schneider Electric LAD4RCU Contactor RC circuit + RC circuit Piece 1 pc(s)

Conrad Electronic

€ 19.99

€ 14.99^*

Schneider Electric LADS2 LADS2 TDR block Multifunction 1 pc(s) Time range: 1.00 - 30.00 s 1 maker

Schneider Electric LADS2 LADS2 TDR block Multifunction 1 pc(s) Time range: 1.00 - 30.00 s 1 maker

Conrad Electronic

€ 93.99^*

Schneider Electric LAD8N11 Auxiliary switch module 1 maker, 1 breaker + auxiliary contact Piece 1 pc(s)

Schneider Electric LAD8N11 Auxiliary switch module 1 maker, 1 breaker + auxiliary contact Piece 1 pc(s)

Conrad Electronic

€ 16.99^*

Schneider Electric LAD4RCG Control module, RC snubber, 50-127V AC, for LC1D09-38 Distribution board accessories 1 pc(s)

Schneider Electric LAD4RCG Control module, RC snubber, 50-127V AC, for LC1D09-38 Distribution board accessories 1 pc(s)

Conrad Electronic

€ 15.99^*

Schneider Electric GV2G445 GV2G445 Three-phase busbar 4x 179 mm 1 pc(s) Single

Schneider Electric GV2G445 GV2G445 Three-phase busbar 4x 179 mm 1 pc(s) Single

Conrad Electronic

€ 27.99^*

Overload relay 690 V (max) 1 maker, 1 breaker Schneider Electric LRD22 Piece 1 pc(s)

Overload relay 690 V (max) 1 maker, 1 breaker Schneider Electric LRD22 Piece 1 pc(s)

Conrad Electronic

€ 65.99^*

Schneider Electric GV2G245 GV2G245 Three-phase busbar 89 mm 1 pc(s) Piece

Schneider Electric GV2G245 GV2G245 Three-phase busbar 89 mm 1 pc(s) Piece

Conrad Electronic

€ 19.99^*

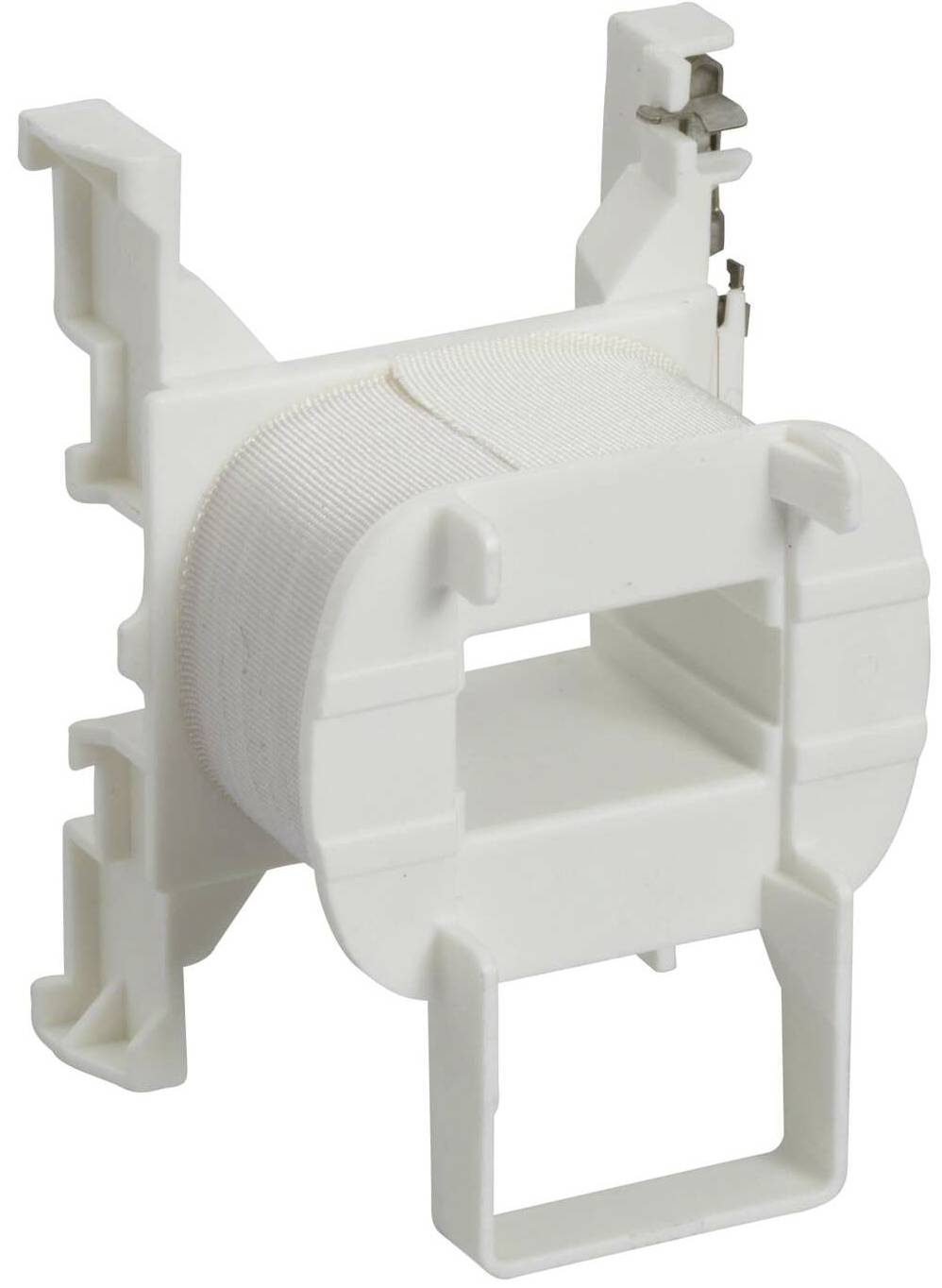

Schneider Electric LXD1F7 Contactor Piece 1 pc(s)

Schneider Electric LXD1F7 Contactor Piece 1 pc(s)

Conrad Electronic

€ 61.99^*

Schneider Electric LA4DT4U LA4DT4U TDR 1 pc(s) Time range: 25 - 500 s

Schneider Electric LA4DT4U LA4DT4U TDR 1 pc(s) Time range: 25 - 500 s

Conrad Electronic

€ 87.99^*

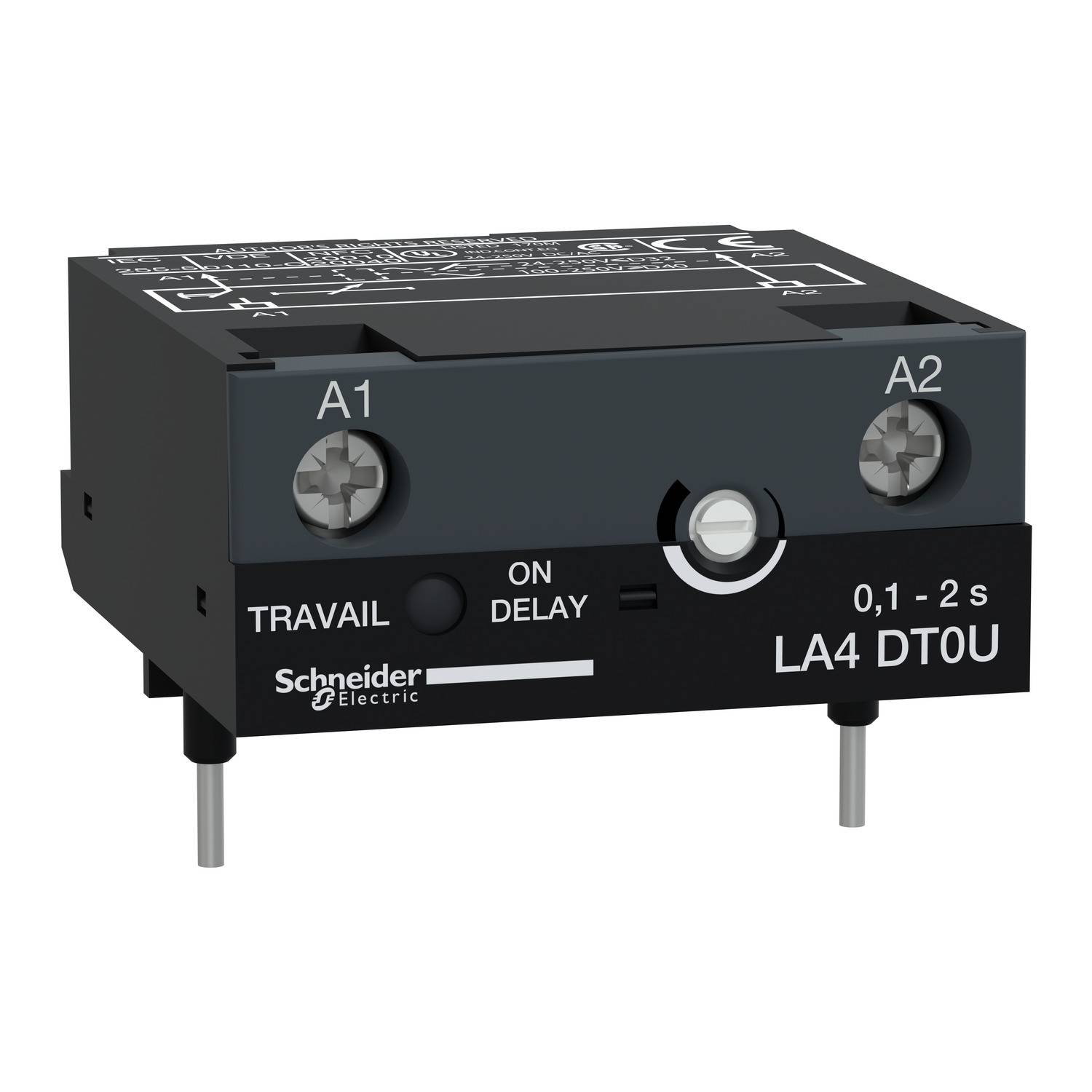

Schneider Electric LA4DT0U LA4DT0U TDR Multifunction 1 pc(s) Time range: 0.1 - 2 s Piece

Schneider Electric LA4DT0U LA4DT0U TDR Multifunction 1 pc(s) Time range: 0.1 - 2 s Piece

Conrad Electronic

€ 85.99^*

Schneider Electric LAD9R1V LAD9R1V Circuit breaker accessories 1 pc(s)

Schneider Electric LAD9R1V LAD9R1V Circuit breaker accessories 1 pc(s)

Conrad Electronic

€ 45.96^*

Schneider Electric LAD9R1 LAD9R1 Power switch lockable (L x W x H) 140 x 65 x 17 cm 1 pc(s) Piece

Schneider Electric LAD9R1 LAD9R1 Power switch lockable (L x W x H) 140 x 65 x 17 cm 1 pc(s) Piece

Conrad Electronic

€ 32.99^*

Schneider Electric LAD4VG Circuit module, varistor, 50-127VAC, for D09/D38 Distribution board accessories 1 pc(s)

Schneider Electric LAD4VG Circuit module, varistor, 50-127VAC, for D09/D38 Distribution board accessories 1 pc(s)

Conrad Electronic

€ 16.99^*

Schneider Electric LA4DWB Contactor 75 kW Piece 1 pc(s)

Schneider Electric LA4DWB Contactor 75 kW Piece 1 pc(s)

Conrad Electronic

€ 79.99^*

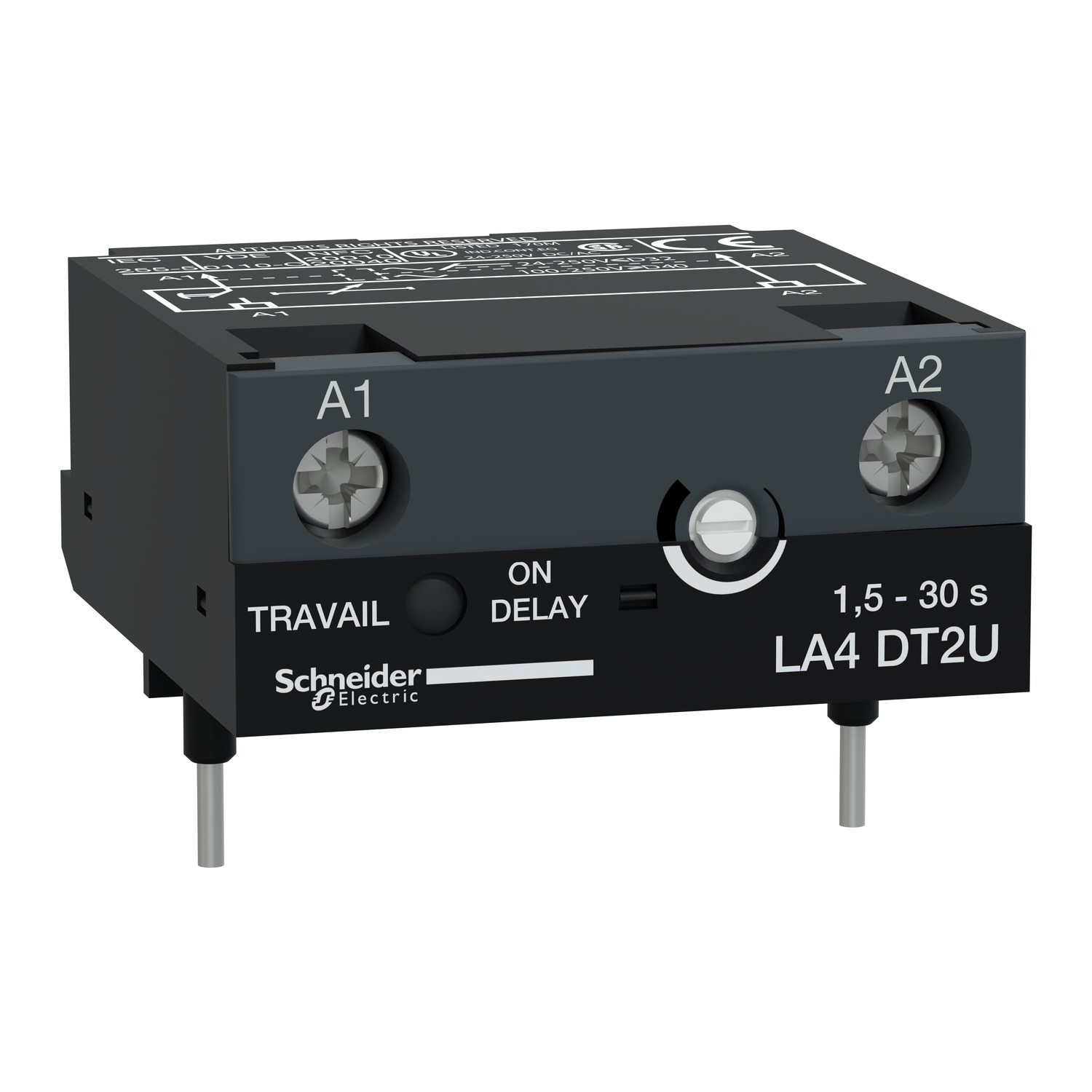

Schneider Electric LA4DT2U LA4DT2U TDR 1 pc(s) Time range: 1.5 - 30 s
