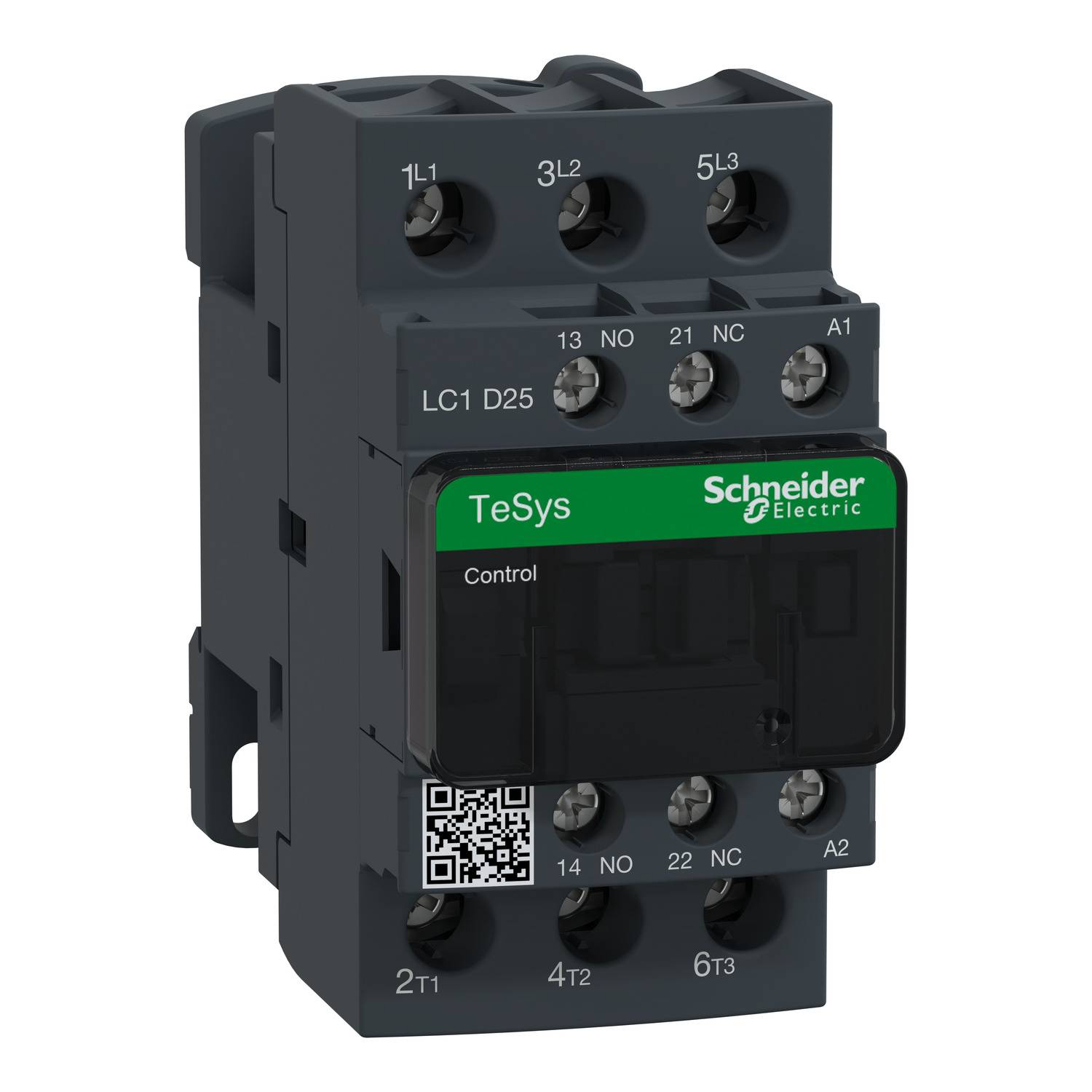

Schneider Electric LC1D25P7TQ Electrical contactor 3 makers 11 kW + auxiliary contact 24 pc(s)

Power protection TeSys LC1D. 3 pin, 3 normally open contact. Additional auxiliary contacts - 1 NO contact + 1 NC contact, rated operating power at AC-3, 400 V 11 kW, rated operating current Ie at AC-3, 400 V 25 A, coil 230 V AC. Dimensions (WxHxD) 45x85x92 mm, weight 3.7 kg. Category AC-3, AC-1. Without built-in amplitude limiter diode. Fast and easy setup. Safe and durable power connection with Everlink and spring-loaded terminals. Suitable for security applications thanks to mechanically coupled contacts and mirror contacts. Certified according to UL, LROS (Lloyds register of shipping), CSA, BV, RINA, CCC, DNV, GOST GL Product standards according to EN/IEC 60947-5-1, UL 508, CSA C22.2 NO 14, EN/IEC 60947-4-1.
