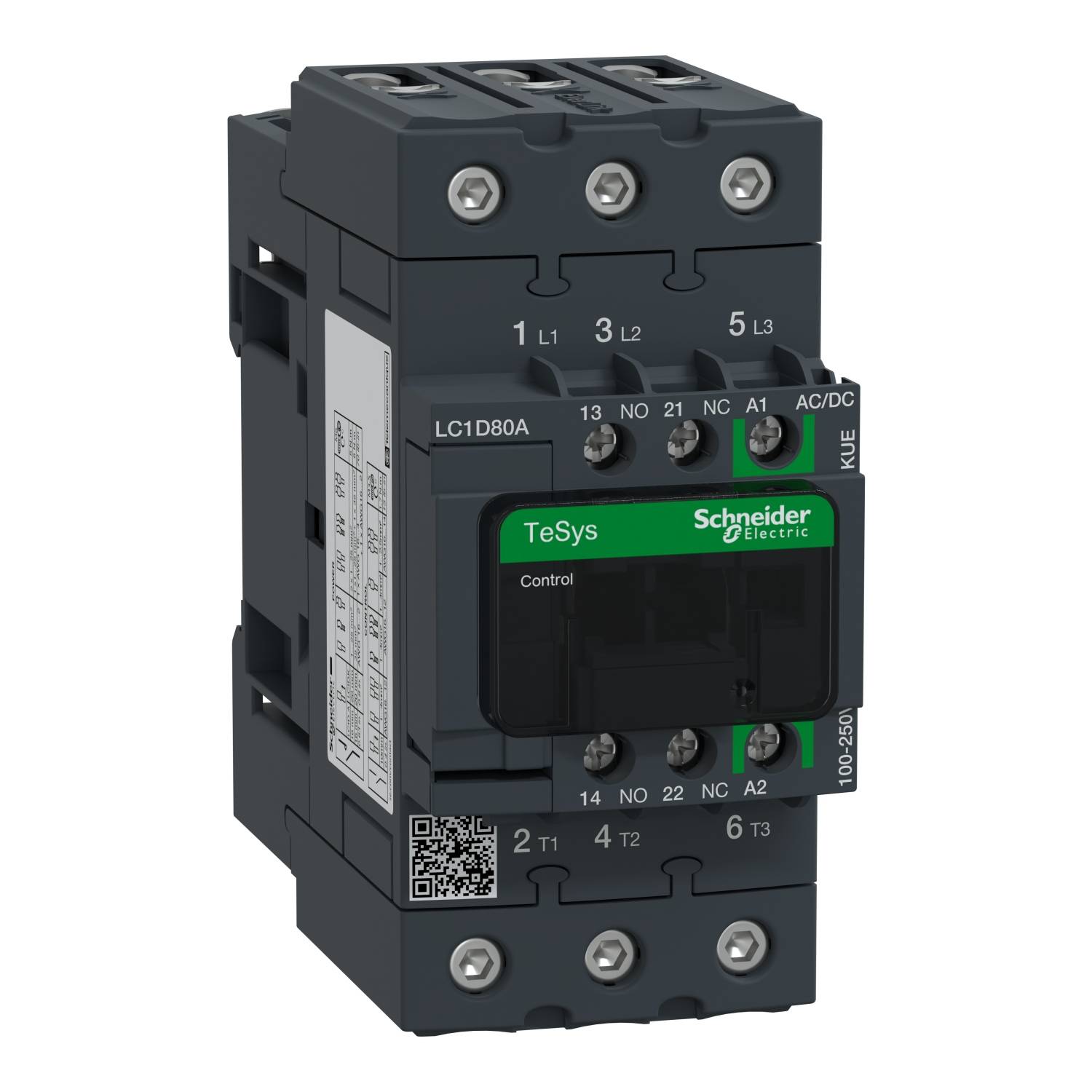

Schneider Electric LC1D80AKUE Electrical contactor 3 makers 37 kW + auxiliary contact Piece 1 pc(s)

Power protection TeSys LC1D. 3 pin, 3 normally open contact. Additional auxiliary contacts - 1 NO + 1 NC, rated operating power at AC-3, 400 V 37 kW, rated operating current Ie at AC-3, 400 V 80 A, coil 100-250 V AC / DC. Dimensions (WxHxD) 55x122x120 mm, weight 1.002 kg. EverLink-clamps inner hexagon. In accordance with local electrical wiring regulations, an insulated Allen wrench size 4 must be used (order no. LADALLEN4). Category AC-1, AC-3. Coil AC/DC, electronic, integrated bi-directional peak limiting. Fast and easy setup. Safe and durable power connection with Everlink and spring-loaded terminals. Suitable for security applications thanks to mechanically coupled contacts and mirror contacts. Screw terminal connection control part.

This text is machine translated.
