Name: Schneider Electric Servo motor SH30552P1AF4100 SH30552P1AF4100 0.71 Nm
Brand: Schneider Electric
SKU: 3756937
Availability: BackOrder

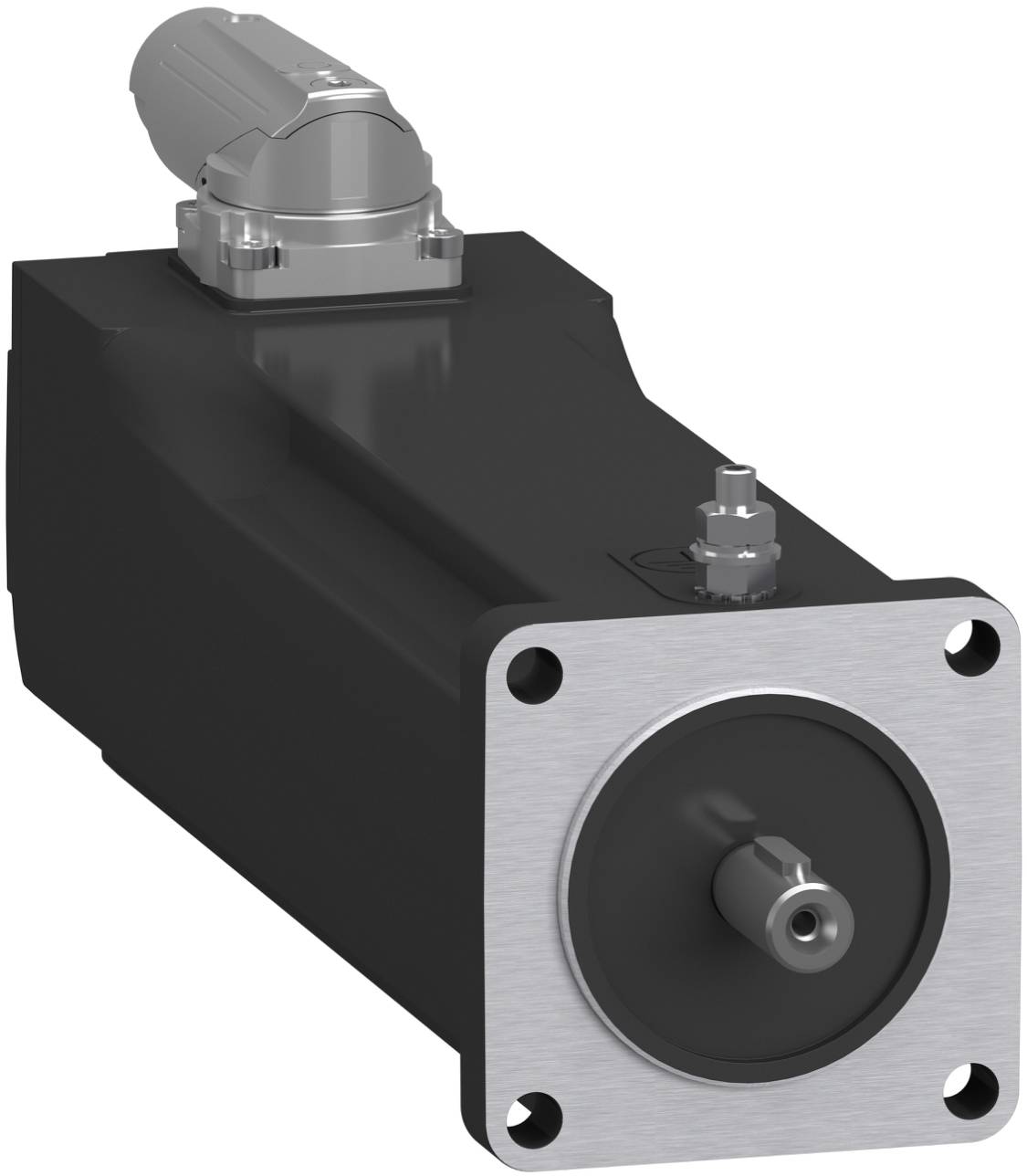

3D rendering of a black electric motor with a silver front flange and central drive shaft, shown on a white background.

Datasheet (PDF)

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 2,359.00 / piece)

€ 2,359.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Number of phases: 3
Shaft end design: Other
Design: Other
Load cycle: Other
Rated frequency 50-60 Hz
Rated voltage: 230 V
Operating temperature -15 °C
Suitable for frequency control: No.
Intrinsic safety (IS): Without
Insulation class IEC: Other
Breakdown torque ratio: 2.5
Cooling method: Other
With condensation protection: No.
With positive temperature coefficient resistor (PTC): No.
With resistance thermometer detector (RTD): No.
Motor energy efficiency class: Other
Voltage type AC
Housing material: Other
Overload capability: No.

Holding torque: 0.71 Nm

Manufacturer part #: SH30552P1AF4100

Type: SH30552P1AF4100

Width: 55 mm

Flange size: 55 mm

: IP65

Type: Other

Phases: 3

Nominal power: 0.53 kW

Number of pins: 3

Nominal torque: 0.71 Nm

Max. ambient temperature: 120 °C

Min. ambient temperature: -15 °C

: Other

: AC

: 230 V

: 3

: Other

: 3

: Other

: 50-60 Hz

: -15-120 °C

: IP65

: Other

: 2.5

: FALSE

: FALSE

: None

: FALSE

: Other

: Other

: Other

: FALSE

: Other

: FALSE

UKCA: not relevant

Product type: Servo motor

Documents & Downloads

Datasheet

Datasheet 3756937 Schneider Electric Servo motor SH30552P1AF4100 SH30552P1AF4100 0.71 Nm

User & Safety Instructions

User & Safety Instructions 3756937 Schneider Electric Servo motor SH30552P1AF4100 SH30552P1AF4100 0.71 Nm

Description

Lexium SH3 servomotor for motion-based automation with PacDrive 3. This range of AC servomotors has a low rotor moment of inertia which enables a high acceleration capability for dynamic applications. Owing to the winding technology, a higher power density results in a compact design This servo has a flange dimension of 55 mm and a motor length of 2 stacks. Its winding is optimized for torque and speed. It has a continuous standstill torque of 0.71 Nm and a peak torque of 2.5 Nm. The voltage-dependent rated speed reaches 8000 rpm with a nominal power of up to 0.53 kW. The shaft end is fitted with a key. The absolute encoder is designed as a single turn with high resolution of 18 bits and transmission via DSL. A holding brake is integrated. The connection is made via hybrid cable for OMC (One-Motor-Cable) with a M17 connector to corresponding Lexium 62 servo drives. The degree of protection of the shaft and the housing are designed in IP65.

This text is machine translated.
