Schneider Electric SSR SSD1A335BDC2 35 A Switching voltage (max.): 600 V AC Zero crossing 1 pc(s)

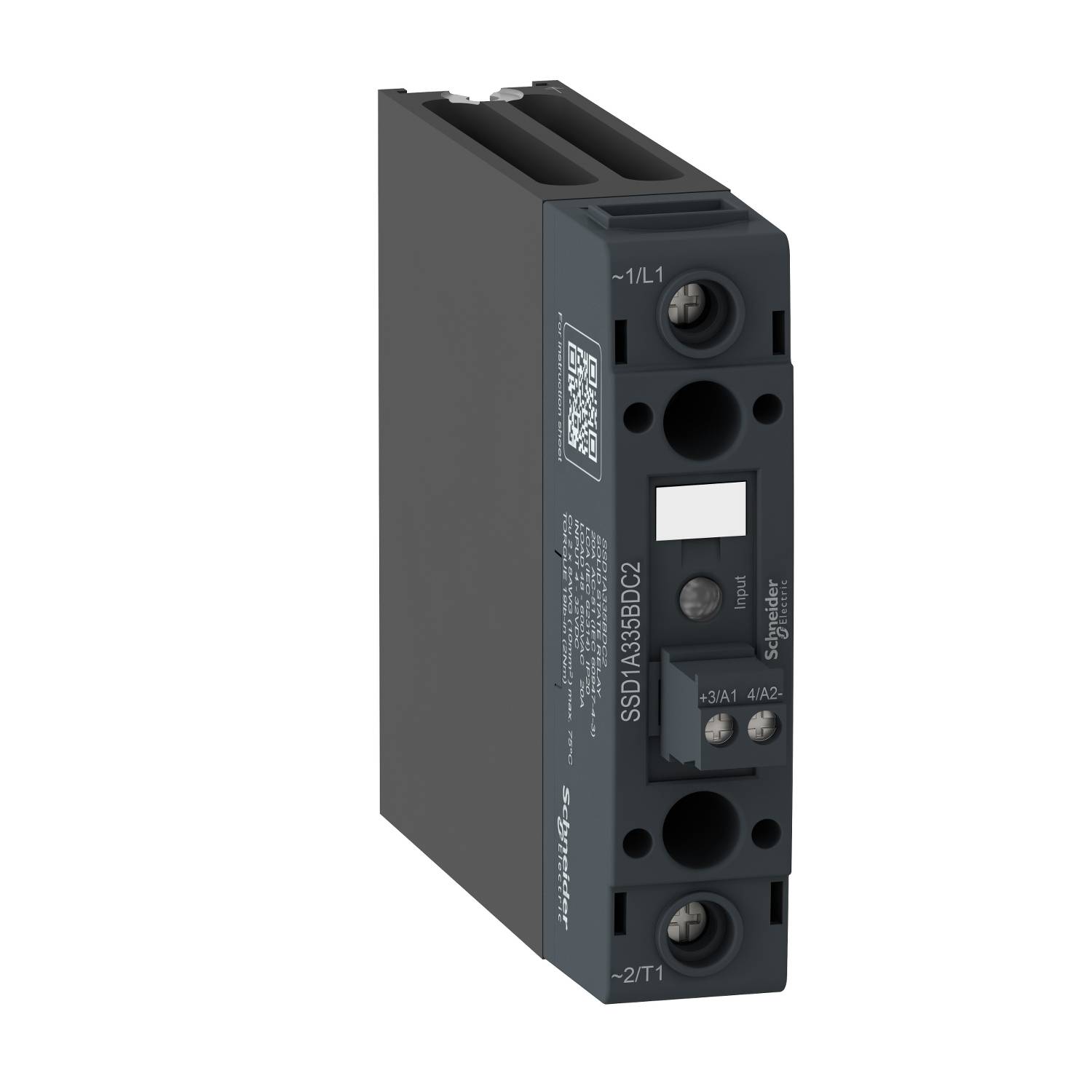

Black electrical component with multiple terminals and a QR code. Standard markings visible on the front side.
Packaging type
Piece
Product type
SSR
Control voltage (min.)
4 V DC
Control voltage (max.)
32 V DC
Switching voltage (max.)
600 V AC
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Mon 9 Nov
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 63.99 / piece)
€ 63.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

Packaging type

Piece

Product type

SSR

Type

SSD1A335BDC2

Switching type

Zero crossing

Connection

Screw terminal

Control voltage (min.)

4 V DC

Control voltage (max.)

32 V DC

Control voltage range

4 - 32 V DC

Switching voltage (min.)

48 V AC

Switching voltage (max.)

600 V AC

Current load (max.)

35 A

Output voltage (min.)

48 V AC

Output voltage (max.)

600 V AC

Max. output current

35 A

Content

1 pc(s)

1

TRUE

0 A

0 A

DC

0 A

0 A

0 A

TRUE

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 2922389 Schneider Electric SSR SSD1A335BDC2 35 A Switching voltage (max.): 600 V AC Zero crossing 1 pc(s)

Datasheet 2922389 Schneider Electric SSR SSD1A335BDC2 35 A Switching voltage (max.): 600 V AC Zero crossing 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2922389 Schneider Electric SSR SSD1A335BDC2 35 A Switching voltage (max.): 600 V AC Zero crossing 1 pc(s)

Information

Information 2922389 Schneider Electric SSR SSD1A335BDC2 35 A Switching voltage (max.): 600 V AC Zero crossing 1 pc(s)

Description

Solid state relays SSD of the Harmony series. Suitable for mounting on a DIN rail. The load circuit is designed for 1-phase networks in the range of 48-600V AC and it can be switched 35 A. Control voltage is at 4-32 VDC. The switching behavior is zero-voltage switching. The connection is made with screw terminals. Approvals CE, UL, CSA, EAC, RoHS, IEC 61373, IEC 60947-4-3.

This text is machine translated.
