A single-phase solid-state relay module by Schneider Electric in black, with metal mountings on top, suitable for industrial applications.

A single-phase solid-state relay module by Schneider Electric in black, with metal mountings on top, suitable for industrial applications.

Packaging type

Single

Product type

SSR

Control voltage (min.)

4 V DC

Control voltage (max.)

32 V DC

Switching voltage (max.)

600 V AC

Datasheet (PDF)

Schneider Electric

Dispatches on Wed 21 Oct

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 91.99 / piece)

€ 91.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Packaging type: Single

Product type: SSR

Type: SSD1A360BDC3

Switching type: Zero crossing

Control voltage (min.): 4 V DC

Control voltage (max.): 32 V DC

Control voltage range: 4 - 32 V DC

Switching voltage (min.): 48 V AC

Switching voltage (max.): 600 V AC

Current load (max.): 60 A

Output voltage (min.): 48 V AC

Output voltage (max.): 600 V AC

Max. output current: 60 A

Content: 1 pc(s)

: 1

: TRUE

: 0 A

: 0 A

: DC

: 0 A

: 0 A

: 0 A

: TRUE

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 2922440 Schneider Electric SSR SSD1A360BDC3 60 A Switching voltage (max.): 600 V AC Zero crossing 1 pc(s)

Datasheet 2922440 Schneider Electric SSR SSD1A360BDC3 60 A Switching voltage (max.): 600 V AC Zero crossing 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2922440 Schneider Electric SSR SSD1A360BDC3 60 A Switching voltage (max.): 600 V AC Zero crossing 1 pc(s)

Information

Information 2922440 Schneider Electric SSR SSD1A360BDC3 60 A Switching voltage (max.): 600 V AC Zero crossing 1 pc(s)

Description

Solid state relays SSD of the Harmony series. Suitable for mounting on a DIN rail. The load circuit is designed for 1-phase networks in the range of 48-600VAC and can be switched 60A. Control voltage is at 4-32 VDC. The switching behavior is zero-voltage switching. The connection is made with spring-loaded terminals. Approvals CE, UL, CSA, EAC, RoHS, IEC 61373, IEC 60947-4-3.

This text is machine translated.

Description

Solid state relays SSD of the Harmony series. Suitable for mounting on a DIN rail. The load circuit is designed for 1-phase networks in the range of 48-600VAC and can be switched 60A. Control voltage is at 4-32 VDC. The switching behavior is zero-voltage switching. The connection is made with spring-loaded terminals. Approvals CE, UL, CSA, EAC, RoHS, IEC 61373, IEC 60947-4-3.

This text is machine translated.

What kind of Solid State Relays are you looking for?

Accessories

(^*All information is plus legal VAT)

The necessary accessories are required to use the article as described.

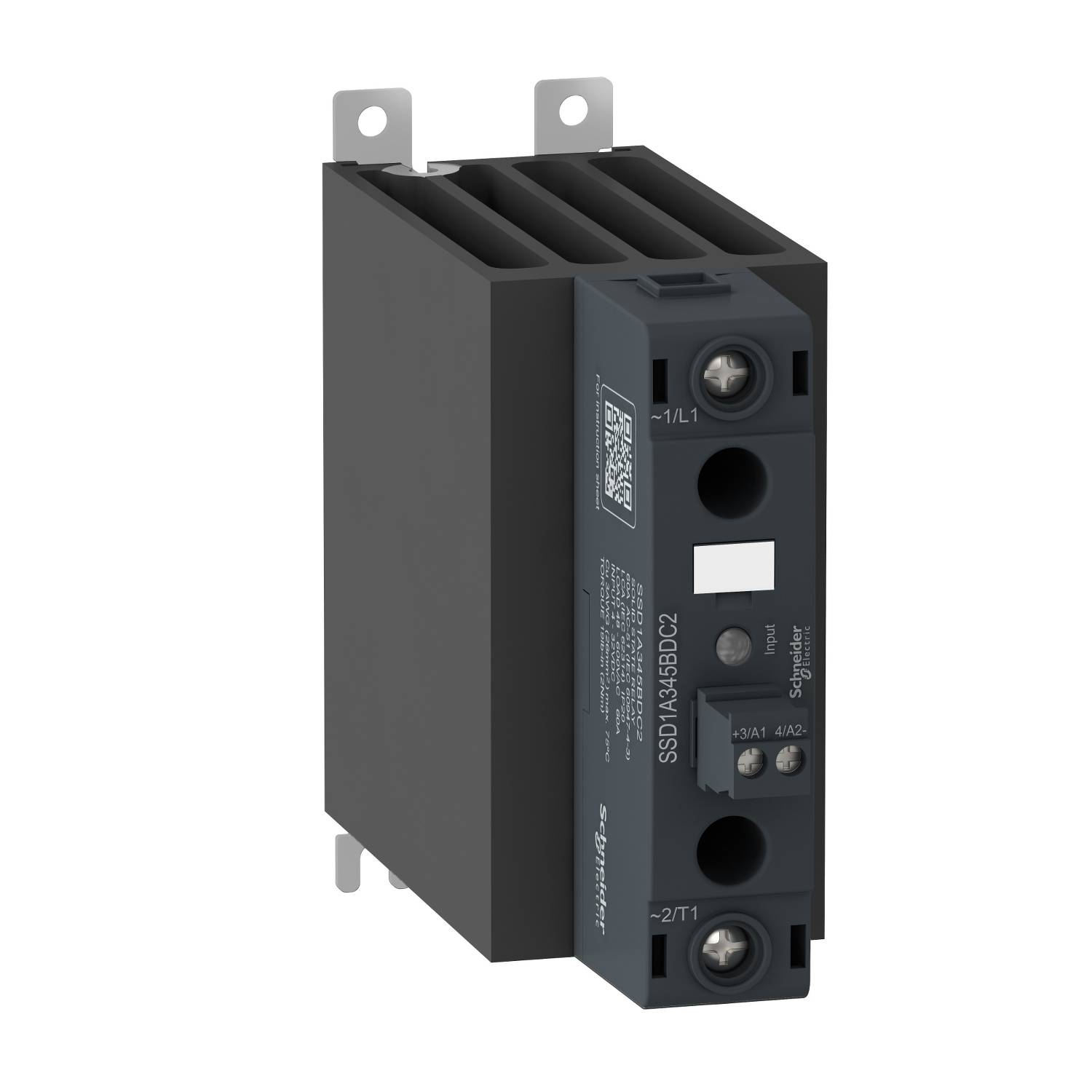

Schneider Electric SSR SSD1A360BDC2 60 A Switching voltage (max.): 600 V AC Zero crossing 1 pc(s)
