Name: Schneider Electric SSR SSP1A150BDE 50 A Switching voltage (max.): 240 V AC Zero crossing 1 pc(s)
Brand: Schneider Electric
SKU: 3756197
Availability: BackOrder

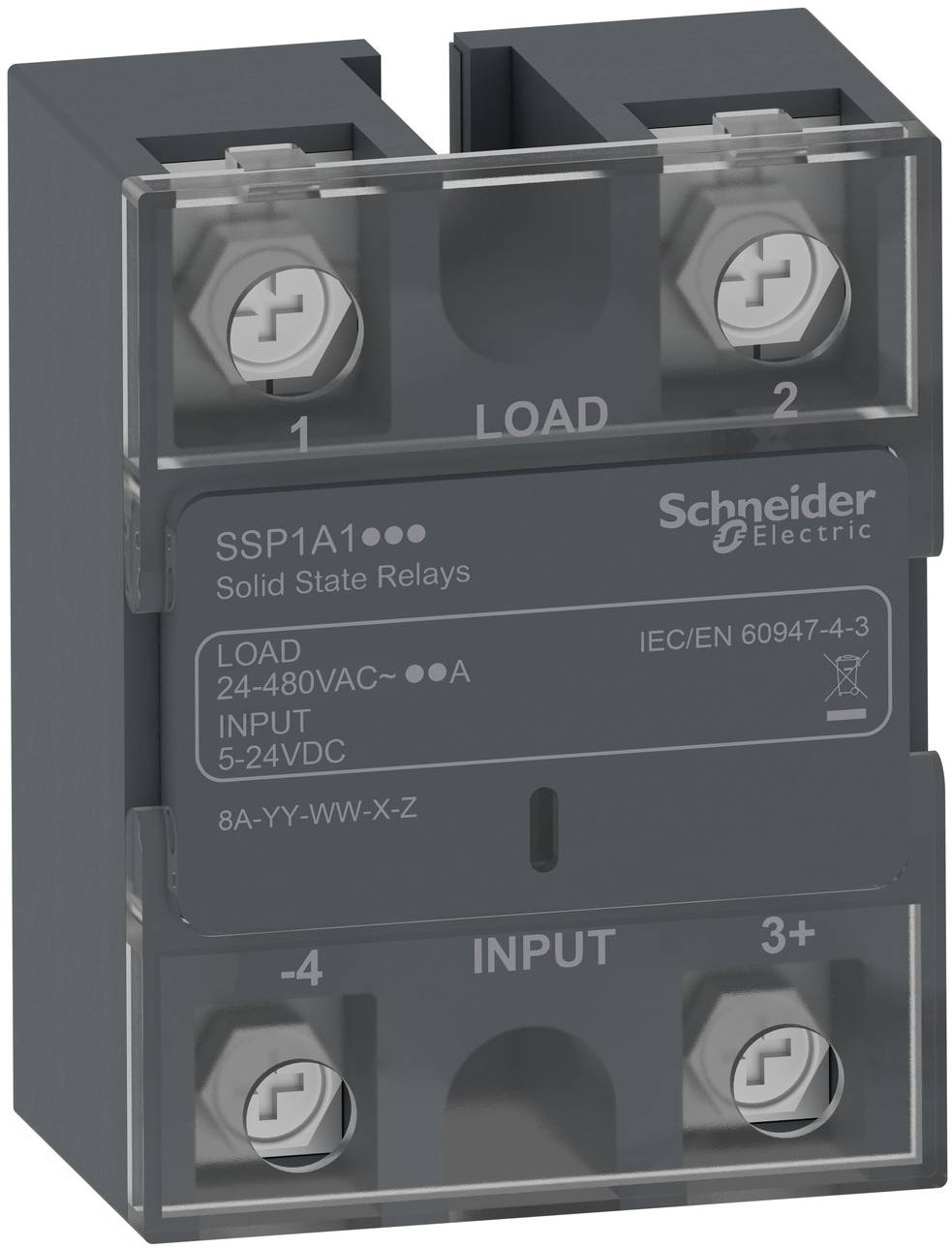

Schneider Electric solid state relay with transparent cover, showing LOAD terminals 1 and 2 on top and INPUT terminals 4- and 3+ on bottom.

Packaging type

Piece

Product type

SSR

Control voltage (min.)

5 V DC

Control voltage (max.)

24 V DC

Switching voltage (max.)

240 V AC

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Fri, 9 Apr 2027

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 28.99 / piece)

€ 28.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Packaging type: Piece

Product type: SSR

Type: SSP1A150BDE

Switching type: Zero crossing

Control voltage (min.): 5 V DC

Control voltage (max.): 24 V DC

Control voltage range: 5 - 24 V DC

Switching voltage (min.): 24 V AC

Switching voltage (max.): 240 V AC

Current load (max.): 50 A

Output voltage (min.): 24 V AC

Output voltage (max.): 240 V AC

Permanent current (max.): 50 A

Content: 1 pc(s)

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 3756197 Schneider Electric SSR SSP1A150BDE 50 A Switching voltage (max.): 240 V AC Zero crossing 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3756197 Schneider Electric SSR SSP1A150BDE 50 A Switching voltage (max.): 240 V AC Zero crossing 1 pc(s)

Description

The Easy semi-conductor relays SSP1E are part of the Harmony series and are mainly suitable for simple automation systems. This 1-phase solid state relay with a rated power of 50A is controlled with an input voltage of 5-24V DC and has a rated load voltage of 24-240V AC. The switching behavior is zero-voltage switching. It is a contactless relay, which offers a fast response, high reliability and a long life. It is therefore mainly designed for electrical heating applications, for example in the plastics, rubber, textile, lithium battery and solar industries. Due to the large number of available product standards and certifications, suitable for the international application You can also get detailed information on material content, environmental impact and recycling that support your sustainability goals.
