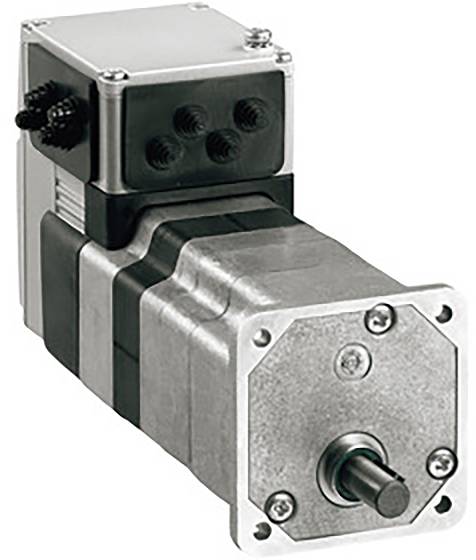

Schneider Electric Stepper motor ILE1F661PC1A3

Built-in drive of the Lexium ILE1 series. This range of distributed drives consists of a compact unit of the brushless DC motor and the associated control electronics with small dimensions. These engines are characterized by a high current-free self-holding torque. This EC motor has a maximum torque of 0.36 Nm and a continuous torque of 0.26 Nm. The voltage-dependent speed is up to 4800 rpm. The control is performed via CANopen DS301. A single-turn encoder with 12 points/revolution is available as a measuring system. Control inputs for STO are available as a safety function. The supply voltage 24-36 VDC and the flange dimension for mounting 66 mm. Industrial connectors are provided for connection. A spur gear with a 54:1 reduction ratio is mounted on the EC motor. Thanks to the Green Premium eco-label, you can get detailed information on material content, environmental impact and recycling management that support your sustainability goals.
