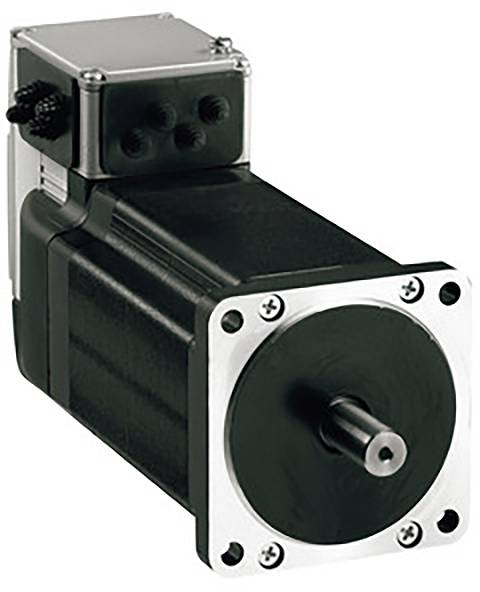

Schneider Electric Stepper motor ILS2E853PC1A0 4.5 Nm

Built-in step motor of the Lexium ILS2 series. This range of distributed drives consists of a compact unit of the 3-phase stepper motor with associated control electronics at small dimensions. These motors are characterized by the high permanent standstill torque. These engines are characterized by a high permanent torque and good synchronous operation characteristics. This stepper motor has a maximum torque of 4.5 Nm. The winding is designed for medium speeds with a rated speed of 200 rpm. The control is performed via the EtherCAT fieldbus. The measuring system transmits an index pulse. Control inputs for STO are available as a safety function. The supply voltage 24-48 VDC and the flange dimension for mounting 85 mm. Industrial connectors are provided for connection. There is no brake. Thanks to the Green Premium eco-label, you can get detailed information on material content, environmental impact and recycling management that support your sustainability goals.

This text is machine translated.
