Schneider Electric ZB5FA1C0 ZB5FA1C0 Pushbutton front piece planar Button White 1 pc(s)

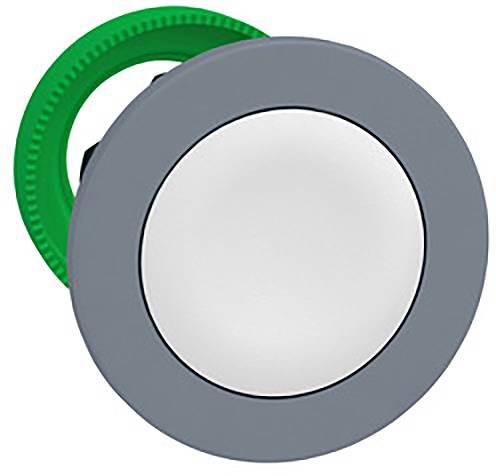

Round, grey-white button with a green cover on the back, serves as a push button in technical or electrical devices.
Datasheet (PDF)
EAN:
Part number:
Item no:
Available soon
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 9.99 / piece)
€ 9.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

Product type

Pushbutton front piece

Switch/button features

planar

Operation type

Button

Factory colour

White

Case colour

Grey

Functions

momentary

Recess diameter

30 mm

Min. temperature

-40 °C

Max. temperature

70 °C

Content

1 pc(s)

Type

ZB5FA1C0

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 2920848 Schneider Electric ZB5FA1C0 ZB5FA1C0 Pushbutton front piece planar Button White 1 pc(s)

Datasheet 2920848 Schneider Electric ZB5FA1C0 ZB5FA1C0 Pushbutton front piece planar Button White 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2920848 Schneider Electric ZB5FA1C0 ZB5FA1C0 Pushbutton front piece planar Button White 1 pc(s)

Description

Pushbutton made of plastic as front element and 30mm dimension, Harmony XB5F series for flat installation. Colour of the pushbutton is white. Does not latch. The outer ring is gray. The modular Harmony series with 30mm installation combines easy installation, efficiency, modern design, flexibility with the highest robustness. IP protection classes up to IP69K and ambient temperatures from -40°C to +70°C. Product standards according to EN/IEC 60947-5-1, EN/IEC 60947-5-4, CSA C22.2 NO 14, UL 508, EN/IEC 60947-1, JIS C 4520. Certifications according to DNV, GL, UL listed, RINA, BV, CSA, LROS (Lloyds Register of Shipping). Product standards according to EN/IEC 60947-5-1, EN/IEC 60947-5-4, CSA C22.2 NO 14, UL 508, EN/IEC 60947-1, JIS C 4520.
