Buy Schneider Electric ZB5FD4C0 ZB5FD4C0 Selector head planar Rotary switch Black 1 pc(s) | Conrad Electronic | Conrad Electronic » All parts of success

All things technology
Delivery within Europe
Right to Cancel applies
Specialist retailer since 1923

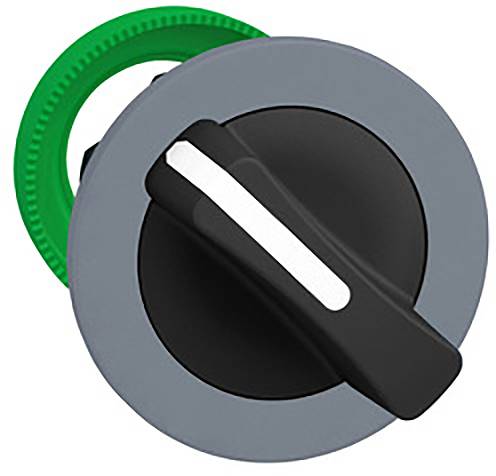

Rotary knob with a grey border and green gear wheel in the background, potentially part of a mechanical or electronic device.

Rotary knob with a grey border and green gear wheel in the background, potentially part of a mechanical or electronic device.

Schneider Electric

Datasheet (PDF)

EAN:

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 16.99 / piece)

€ 16.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Product type: Selector head

Switch/button features: planar

Operation type: Rotary switch

Factory colour: Black

Case colour: Grey

Recess diameter: 30 mm

Min. temperature: -40 °C

Max. temperature: 70 °C

Content: 1 pc(s)

Type: ZB5FD4C0

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 2920949 Schneider Electric ZB5FD4C0 ZB5FD4C0 Selector head planar Rotary switch Black 1 pc(s)

Datasheet 2920949 Schneider Electric ZB5FD4C0 ZB5FD4C0 Selector head planar Rotary switch Black 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2920949 Schneider Electric ZB5FD4C0 ZB5FD4C0 Selector head planar Rotary switch Black 1 pc(s)

Description

Selection switch made of plastic as front element and 30mm installation in the Harmony XB5F series for flat installation. Selection switch color is black. The actuator has 2 positions. The outer ring is gray. The modular Harmony series with 30mm installation combines easy installation, efficiency, modern design, flexibility with the highest robustness. IP protection classes up to IP69K and ambient temperatures from -40°C to +70°C. Product standards according to EN/IEC 60947-5-1, EN/IEC 60947-5-4, CSA C22.2 NO 14, UL 508, EN/IEC 60947-1, JIS C 4520. Certifications according to DNV, GL, UL listed, RINA, BV, CSA, LROS (Lloyds Register of Shipping). Product standards according to EN/IEC 60947-5-1, EN/IEC 60947-5-4, CSA C22.2 NO 14, UL 508, EN/IEC 60947-1, JIS C 4520.

This text is machine translated.

Description

Selection switch made of plastic as front element and 30mm installation in the Harmony XB5F series for flat installation. Selection switch color is black. The actuator has 2 positions. The outer ring is gray. The modular Harmony series with 30mm installation combines easy installation, efficiency, modern design, flexibility with the highest robustness. IP protection classes up to IP69K and ambient temperatures from -40°C to +70°C. Product standards according to EN/IEC 60947-5-1, EN/IEC 60947-5-4, CSA C22.2 NO 14, UL 508, EN/IEC 60947-1, JIS C 4520. Certifications according to DNV, GL, UL listed, RINA, BV, CSA, LROS (Lloyds Register of Shipping). Product standards according to EN/IEC 60947-5-1, EN/IEC 60947-5-4, CSA C22.2 NO 14, UL 508, EN/IEC 60947-1, JIS C 4520.

This text is machine translated.
