Senseca 486785 DX641-UVBC-L02 Lux meter
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 439.00 / piece)
€ 439.00
incl. VAT
Only 2 Piece(s) available
Highlights & Details

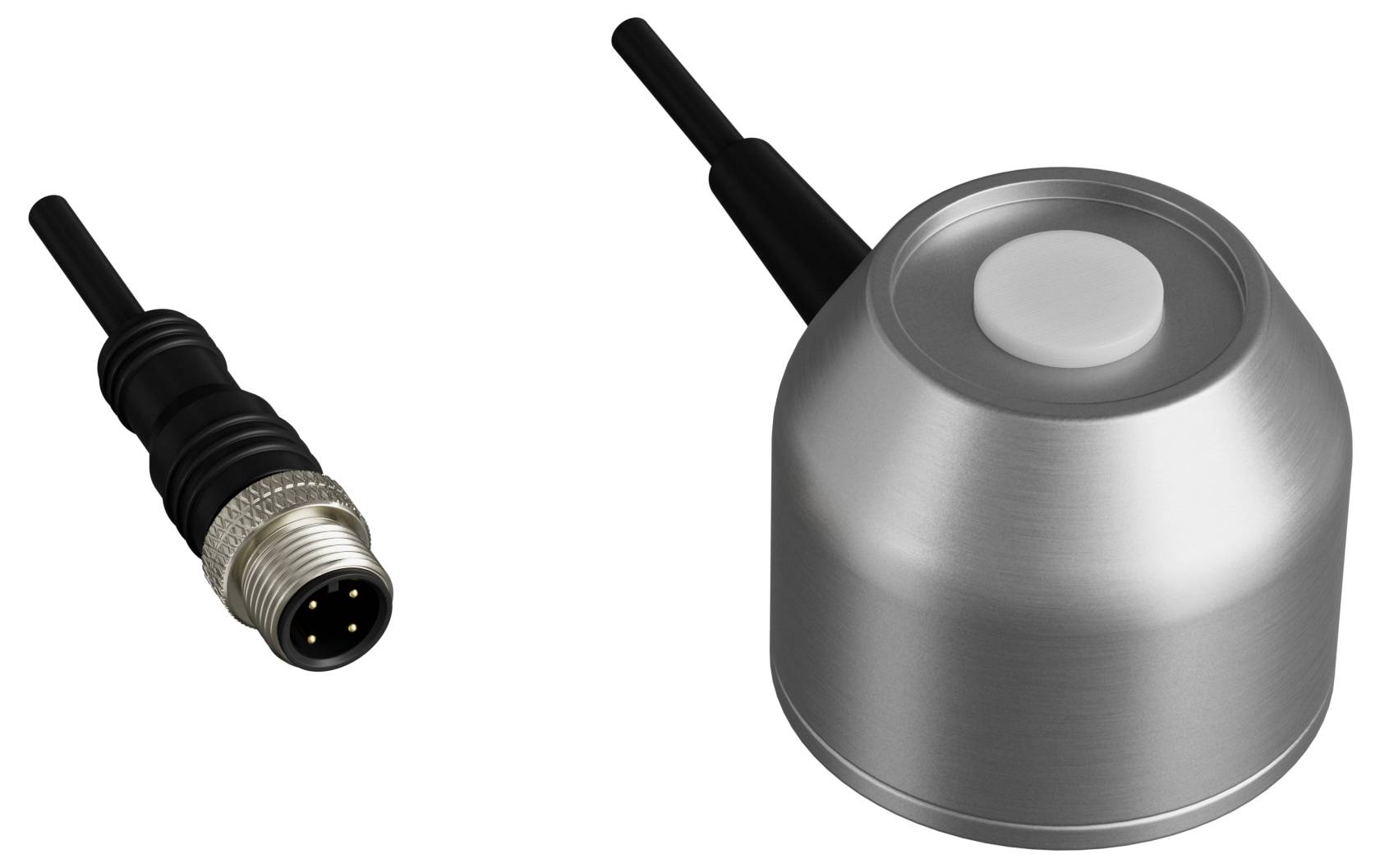

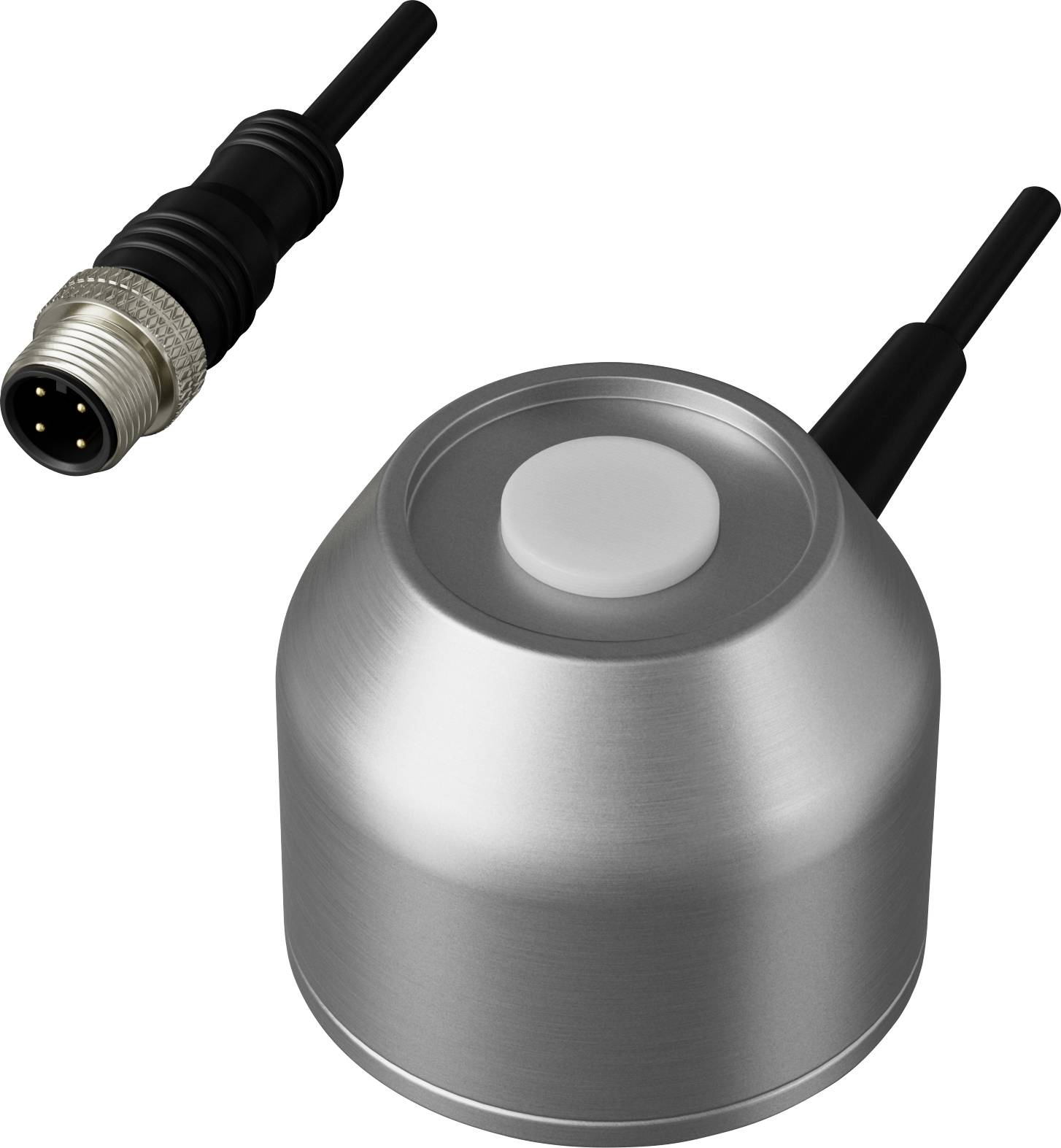

Senseca DX641-UVBC-L02 - Digital light sensor for UV-B and UV-C radiation (e.g. for PRO D5x), 2 m PVC cable
- Digital DX sensor family: Can be changed without loss of accuracy, combined with any DX sensors
- Precise sensor for combined UV-B and UV-C spectrum (210 ... 355 nm)
- Diffusor for cosine correction, measuring range 1.0
- 10⁻³ to 2000 W/m².
- High-quality measuring technology: Fast, precise and energy-efficient.
- Suitable for industrial use: Reliable use at operating temperatures from 0 to +50 °C.
- Practical: Sturdy stand and precise alignment through aluminum construction.
- Made in Italy
Technical specifications
- Product type
Lux meter
- Reading type
Light intensity
Luminance
Manufacturer's standards (no certificate)
- Dim
(L x W x H) 50 x 50 x 42 mm
- Display
Digital
- Weight
200 g
- Width
50 mm
- Height
42 mm
- Length
50 mm
- Interfaces
M12 plug
Documents & Downloads
Datasheet
Datasheet 3771551 Senseca 486785 DX641-UVBC-L02 Lux meter
User & Safety Instructions
User & Safety Instructions 3771551 Senseca 486785 DX641-UVBC-L02 Lux meter
Description
The Senseca DX641-UVBC-L02 is a high-quality digital photoradiometric sensor for use with the Senseca Pro-Line series.
This specialized sensor measures the radiation intensity in the extended ultraviolet spectral range from 210 to 355 nm (peak at 265 nm), covering a wide measuring range from 0.10 to 200 · 10³ Lux and 1.0 · 10⁻³ to 2000 W/m² from.
Typically, the sensor is used to test germicidal lamps that are used in sterilization systems and use LEDs as a UV source.
Thanks to the digital signal processing, all calibration data is stored directly in the probe head.

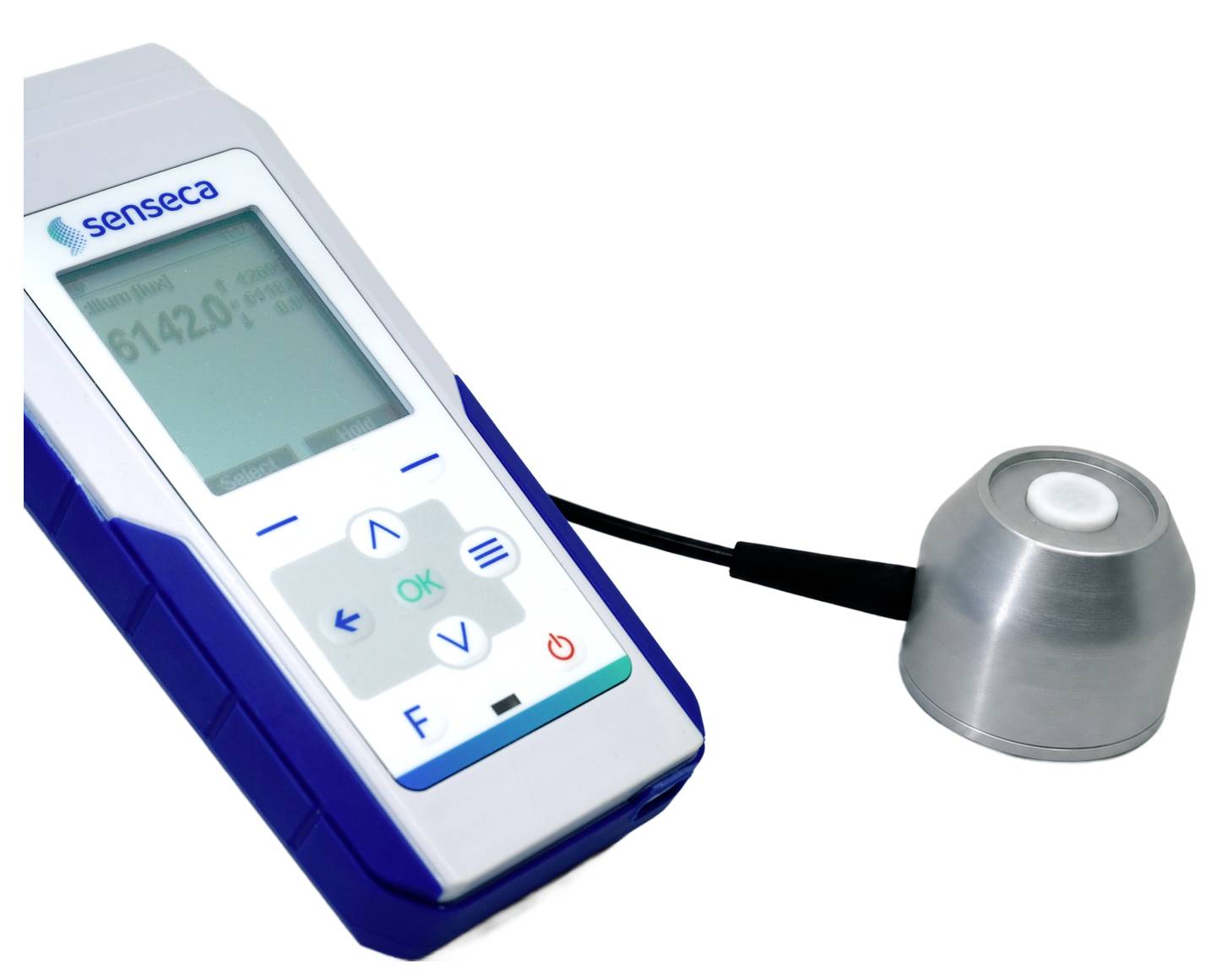

As a full member of the DX sensor family it can be connected to the SENSECA hand-held measuring devices PRO D01, D05, 925 and 595.
With the mentioned devices you can combine any DX sensors to make a versatile measuring system according to your needs. This unique versatility is unsurpassed in the market.
This text is machine translated.
This specialized sensor measures the radiation intensity in the extended ultraviolet spectral range from 210 to 355 nm (peak at 265 nm), covering a wide measuring range from 0.10 to 200 · 10³ Lux and 1.0 · 10⁻³ to 2000 W/m² from.
Typically, the sensor is used to test germicidal lamps that are used in sterilization systems and use LEDs as a UV source.
Thanks to the digital signal processing, all calibration data is stored directly in the probe head.
As a full member of the DX sensor family it can be connected to the SENSECA hand-held measuring devices PRO D01, D05, 925 and 595.
With the mentioned devices you can combine any DX sensors to make a versatile measuring system according to your needs. This unique versatility is unsurpassed in the market.
This text is machine translated.
Features
- UVB & UVC spectrum: Precise detection of the radiation intensity in the range 210 ... 355 nm (peak 265 nm)
- Plug & Play: Factory calibrated and immediately ready for use.
- Highly efficient: Extremely low power consumption (u. 1 mA typ.).

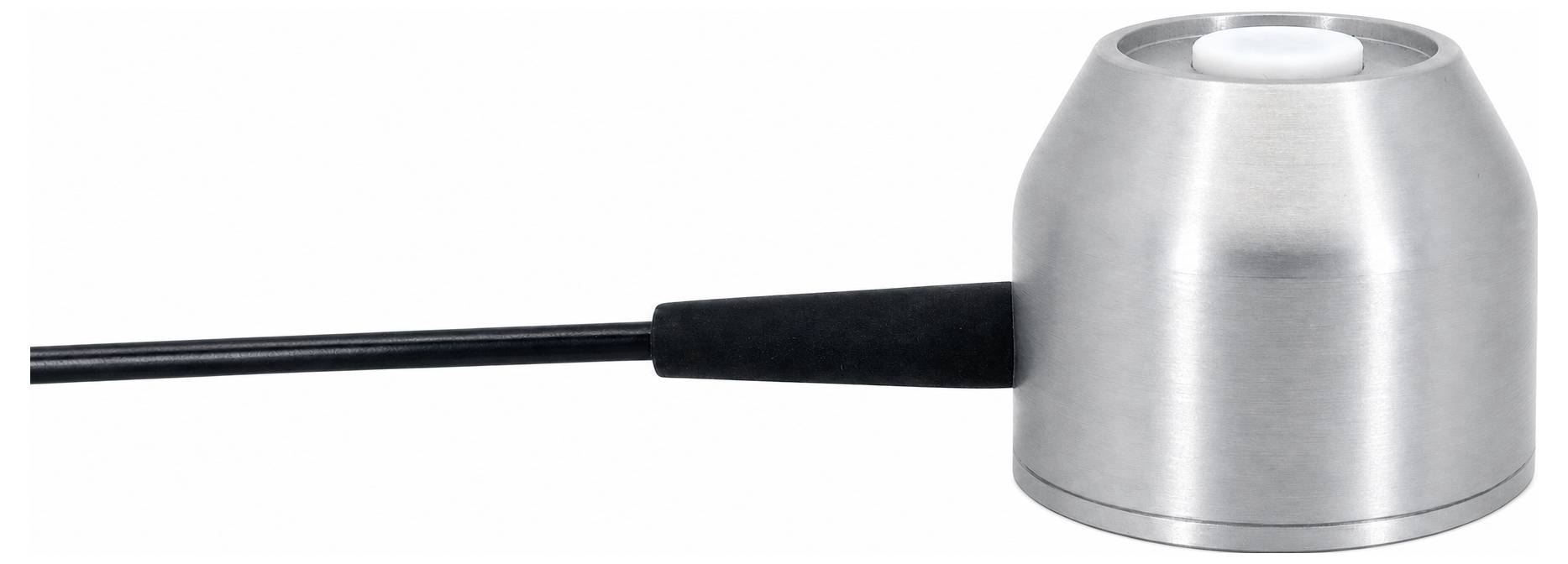

- Robust design: High-quality casing made of anodized aluminum with compact dimensions (Ø 50 x 42 mm).
- Easy to use: Includes fixed mounted 2 meter PVC cable and robust 4-pin M12 connector.
Scope of delivery
- Digital light sensor DX641-UVBC-L02 (with 2 meter PVC cable)
- Quickstart instructions
System requirements
- Compatible measuring device (e.g. PER D5x)
