Image similar

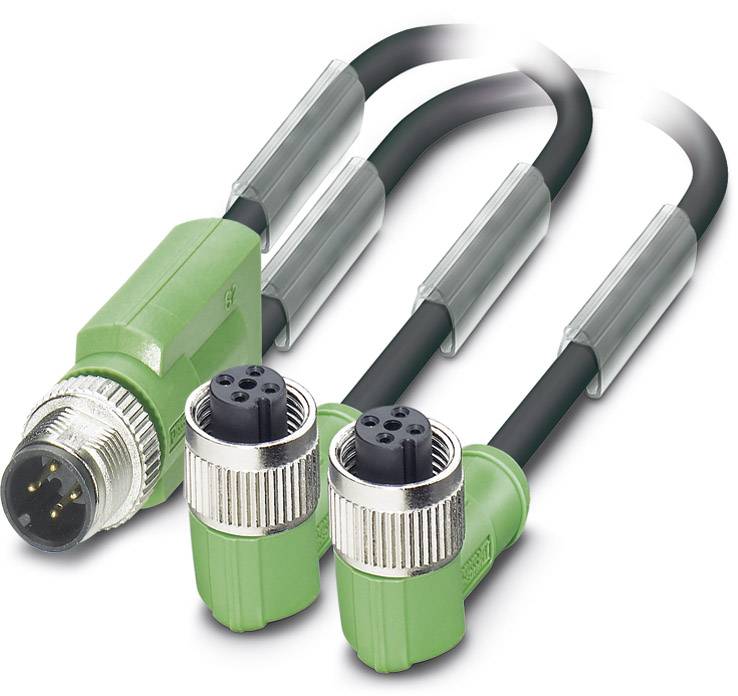

Sensor/Actuator cable SAC-3P-M12Y/2X0,3-PUR/M12FR B 1668991 Phoenix Contact
Product type
Sensor/actuator connector (pre-fab)
Connector type
Adapter, Y-shaped
Connector standard
Sensor connector
Connection side A
M12 plug, straight
Connection side B
M12 socket, right angle
M12 socket, right angle
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 42.99 / piece)
€ 42.99
incl. VAT
14-day return policy included
Technical specifications
- Type
SAC-3P-M12Y/2X0,3-PUR/M12FR B
- Product type
Sensor/actuator connector (pre-fab)
- Connector type
Adapter, Y-shaped
- Connector standard
Sensor connector
- Connection side A
M12 plug, straight
- Connection side B
M12 socket, right angle
M12 socket, right angle
- No. of pins
3
- Cable length
30.00 cm
- Jacket material
PUR
- Nominal voltage
250 V AC
250 V DC
- Nominal current
4 A
- Nominal current - rounded value
4 A
- Outside Ø
1.27 mm
- Cross-section (sensor/actuator wiring)
0.34 mm²
- Thread type connection side
M12
- Cable colour
Black
- Coding
A
IP65
- Manufacturer part #
1668991
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 716322 Sensor/Actuator cable SAC-3P-M12Y/2X0,3-PUR/M12FR B 1668991 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 716322 Sensor/Actuator cable SAC-3P-M12Y/2X0,3-PUR/M12FR B 1668991 Phoenix Contact
Description
Sensor/Actuator cable, 3-position, PUR halogen-free, Black-gray RAL 7021, Plug straight M12, A-coded, on Socket angled M12, A-coded, PIN 2+4 bridged and Socket, angled M12, A-coded, PIN 2+4 bridged, Cable length: 0.3 m
