Name: Siemens 3RA2415-8XE31-2BB4 Star-delta combo 3 makers 690 V AC Compatible with (relay brand): Siemens Single 1 pc(s)
Brand: Siemens
SKU: 1741649
Availability: BackOrder

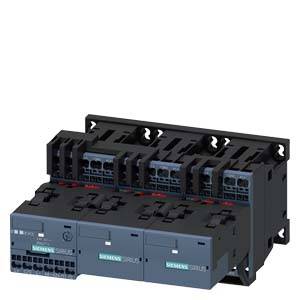

A Siemens electrical contactor module, suitable for industrial applications, displays several connections for circuit control.

A person is cutting a wooden board with a circular saw, with wood chippings flying around. Hands and tools are in focus.

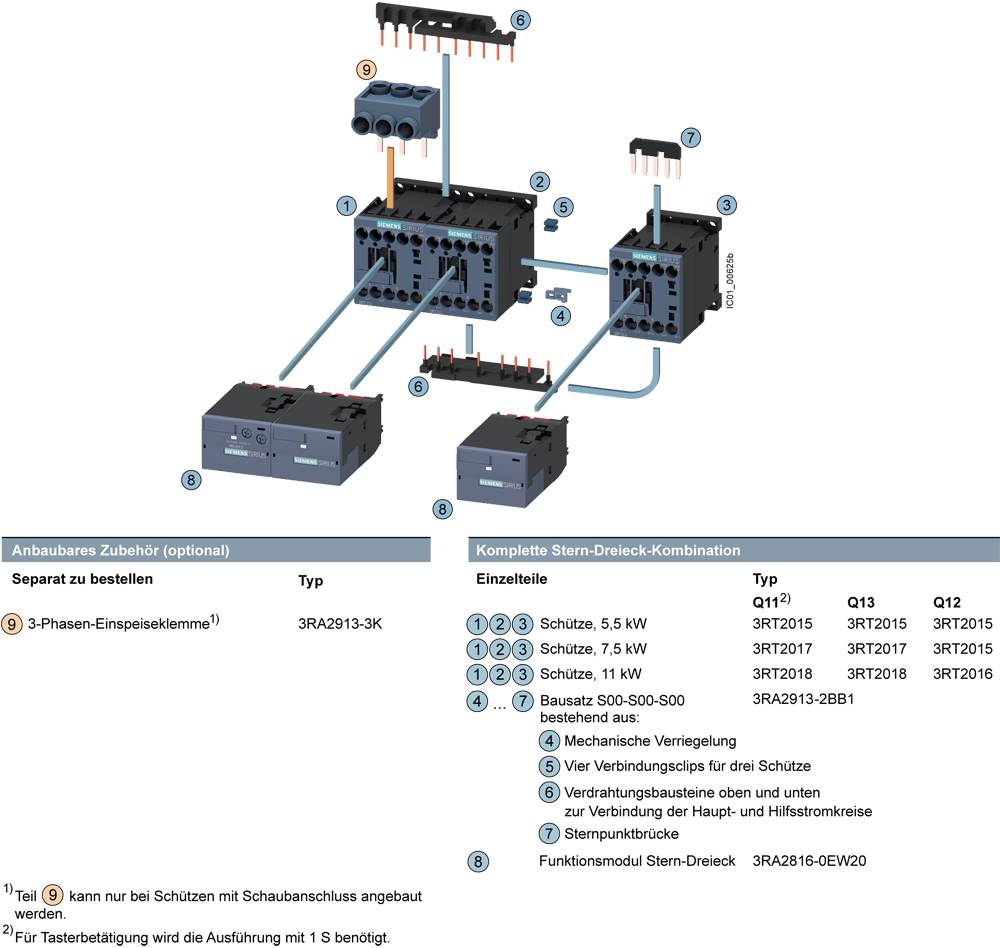

'Diagram of an electrical switching combination with accessories. Shows contactor types, connection parts, and functional modules with type designations.'

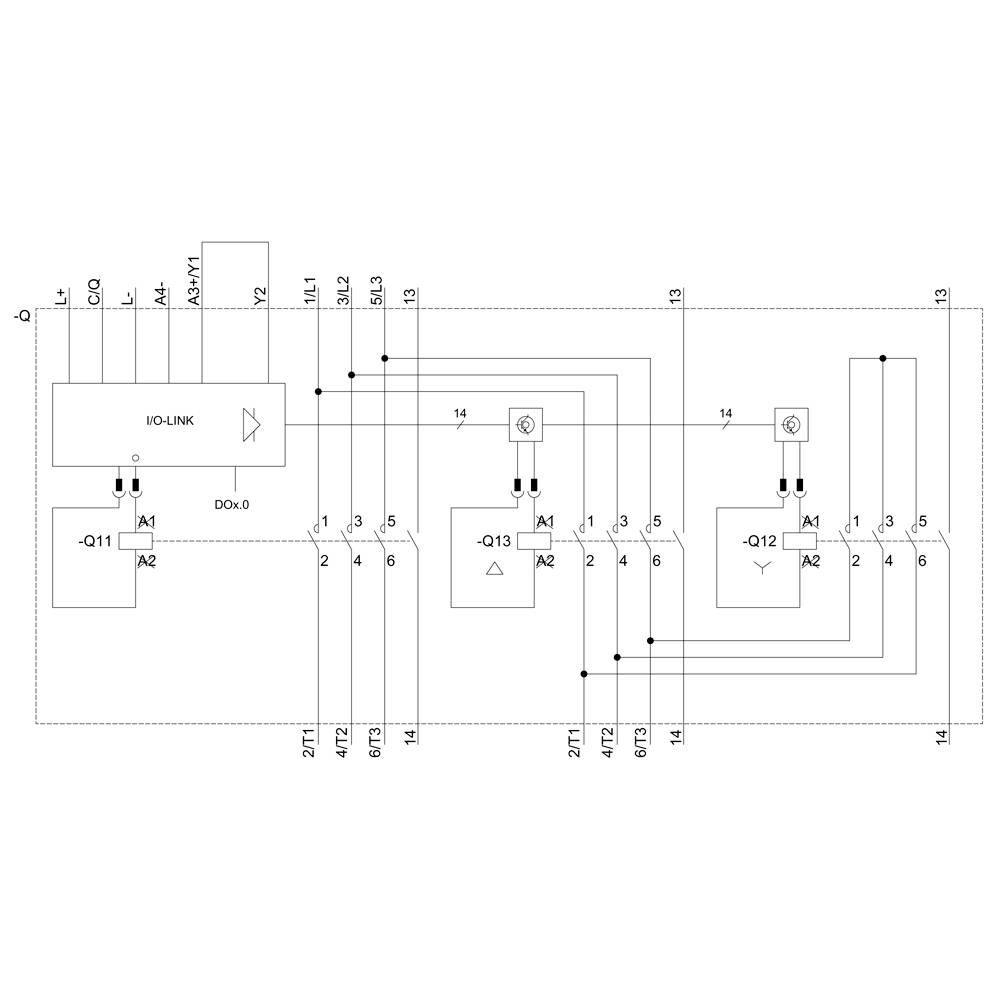

'Circuit diagram with IO-Link module and relays Q11, Q12, Q13. Shows the connection between components and their terminals.'

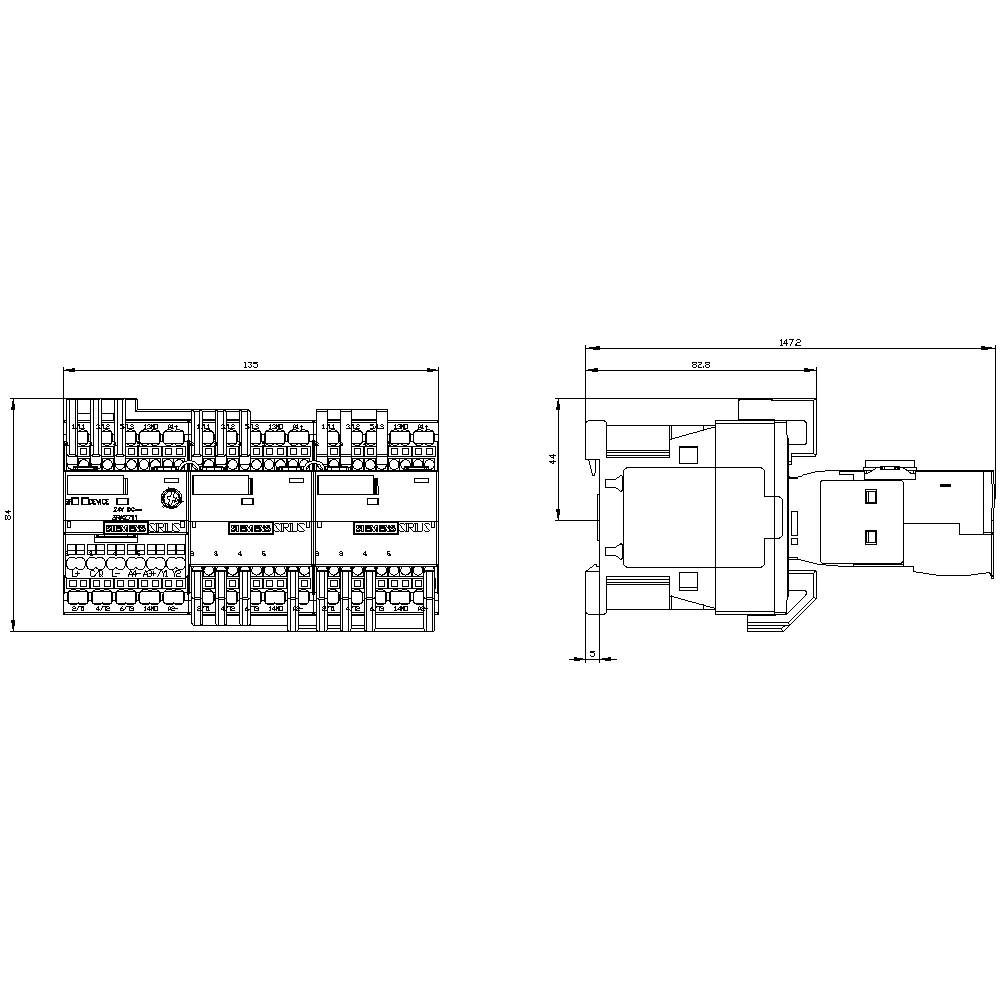

Technical Drawing: Detailed Construction Plans of an Electrical Circuit with Measurements in Millimetres. Shows Front and Side View.

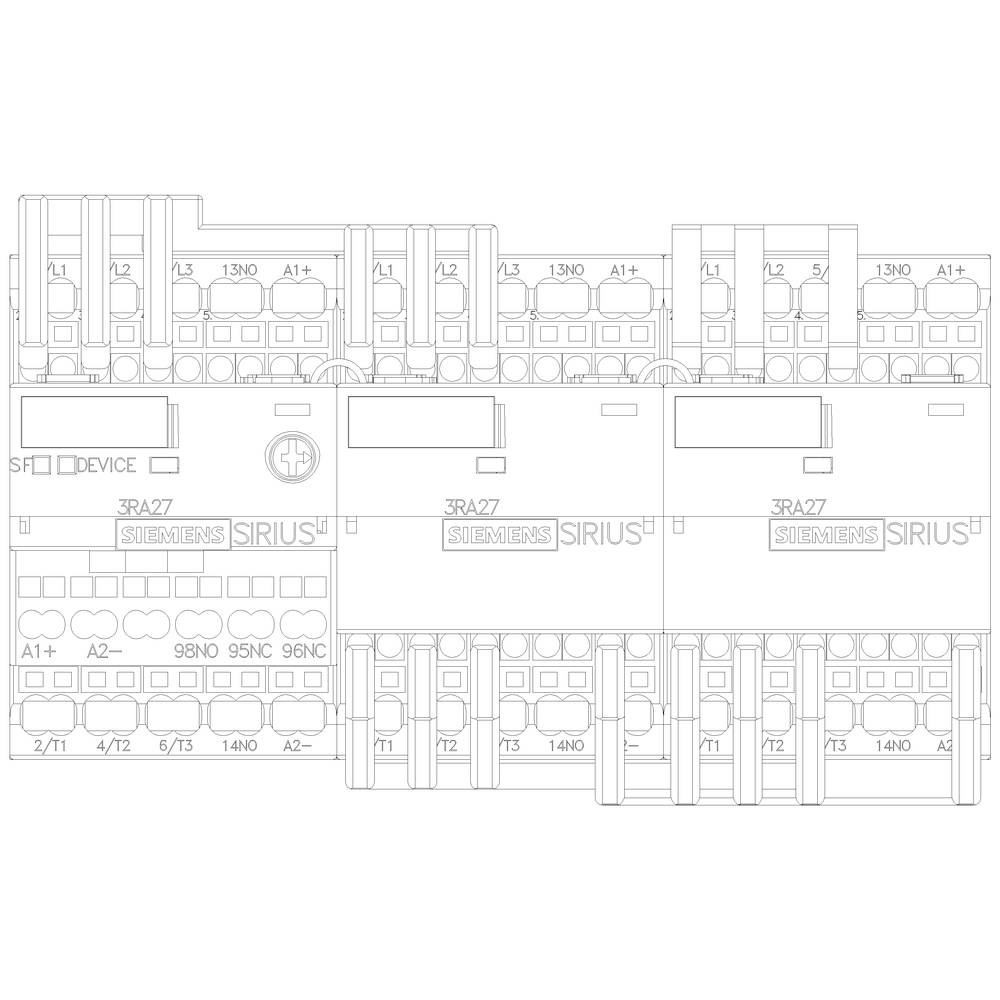

Line drawing of an electrical switching device with multiple components and connections, labelled 'SIRIUS' and '3RA27'.

1/6

Image similar

Product type

Star-delta combo

No. of pins

3-pin

Nominal voltage

690 V AC

Connection

Spring-loaded connector

Packaging type

Single

Datasheet (PDF)

Dispatches on Thu 19 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 455.00 / piece)

€ 455.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

SOLID-STATE CONTACTOR 3-PH 3RF3

Our service for you

Technical specifications

Type of voltage: DC
Conductor cross-section single or multi-wire: 4 mm²
Conductor cross-section for fine-wire: 2.5 mm²

Packaging type: Single

Product type: Star-delta combo

Type: 3RA2415-8XE31-2BB4

Type: S00

No. of pins: 3-pin

Contact type: 3 makers

Auxiliary contact type: 3 makers

Nominal voltage: 690 V AC

Control voltage (max.): 24 V DC

Control voltage range: 24 V DC (max)

Switching voltage (max.): 690 V AC

Compatible with: Siemens

Compatible with series: Siemens Sirius series

Mounting type: Snap-in
Screw-fit

Connection: Spring-loaded connector

Durability: 1000 0000

: IP20

Min. temperature: -25 °C

Max. temperature: +60 °C

Width: 135 mm

Height: 84 mm

Depth: 145 mm

Dim: (W x H x D) 135 x 84 x 145 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: Star-delta contactor

: 5.5 kW

: 3

: 0

: 12 A

: IP20

: Spring clamp connection

: DC

: Other

UKCA: not relevant
