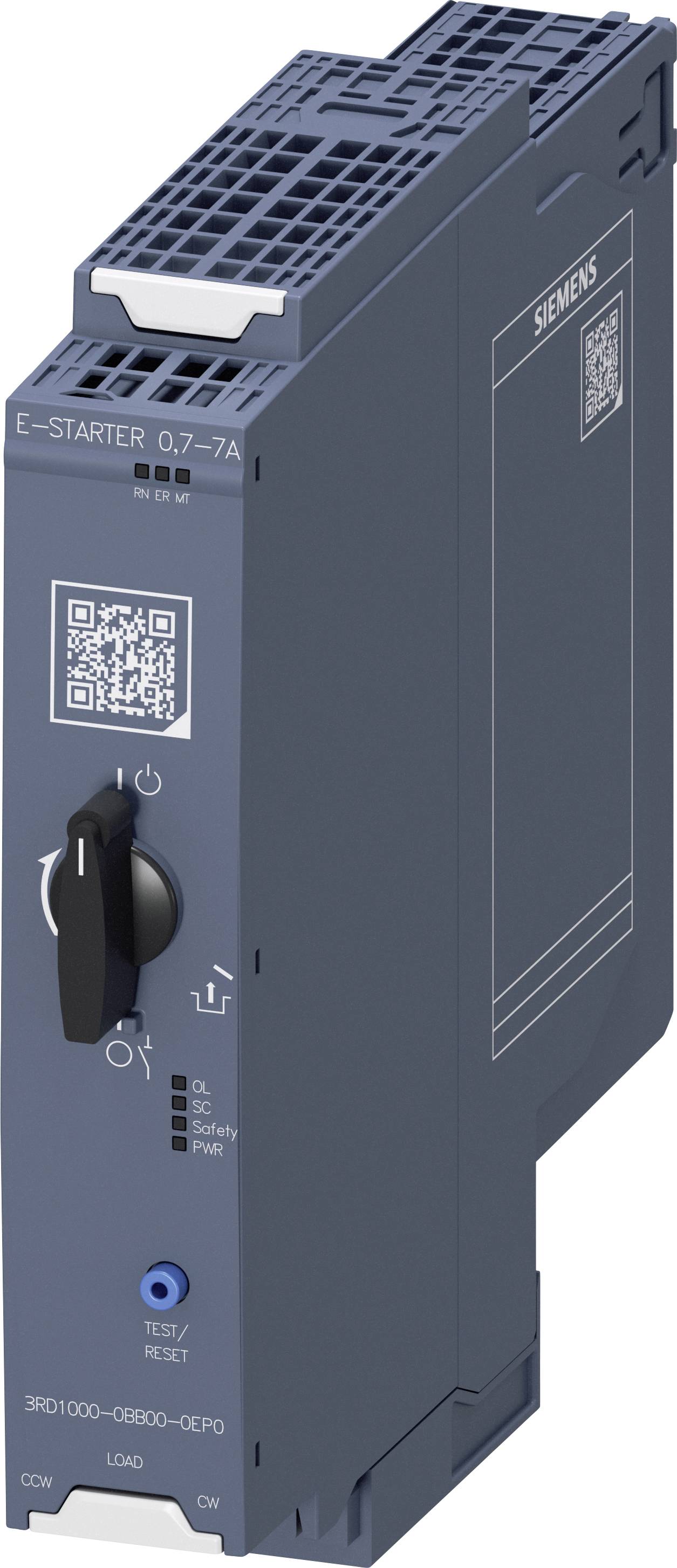

Siemens 3RD1000-0BB00-0EP0 3RD10000BB000EP0 Motor starter Motor power at 400 V 3 kW 400 V Nominal current 7 A

SIMATIC ET 200SP e-Starter Basic, 0.7 - 7.0 A. reversing starter SIMATIC ET 200SP for operational switching and protection of three-phase motors and resistive loads, with electronic short-circuit and overload protection. The multifunctional e-starters are fully integrated in the ET 200SP I/O system. The fast and extensive configuration is carried out in the TIA Portal. Thanks to extremely fast, fully electronic control, the devices are short circuit proof, wear resistant and extremely long life. Due to the wide adjustment range and the integrated turning functionality, the effort for warehousing and project planning is reduced with a small variety of devices. The narrow design saves space in the control cabinet. The simple installation by wiring bus and plug-in technology enables a quick start-up and increases the plant availability. The devices are globally approved (e.g. IEC, CCC and cULus) and IE3/IE4ready. Available as reversing starter with two different motor current ranges from 0.1 - 2A and from 0.7 - 7A. A base unit is required to operate the ET 200SP e-starter. Optionally, a 4DI (LC) submodule can be snapped on to set up a manual on-site operation with four additional digital inputs. The ET 200SP distributed I/O system replaces the tried and tested ET 200S system. E-Starter ET 200SP - Flexible. High Performance. Reliable.

This text is machine translated.
