Siemens 3RF2370-3AA04 SSC Zero crossing 1 maker 83 W 70 A Compatible with (relay brand): Siemens Single 1 pc(s)

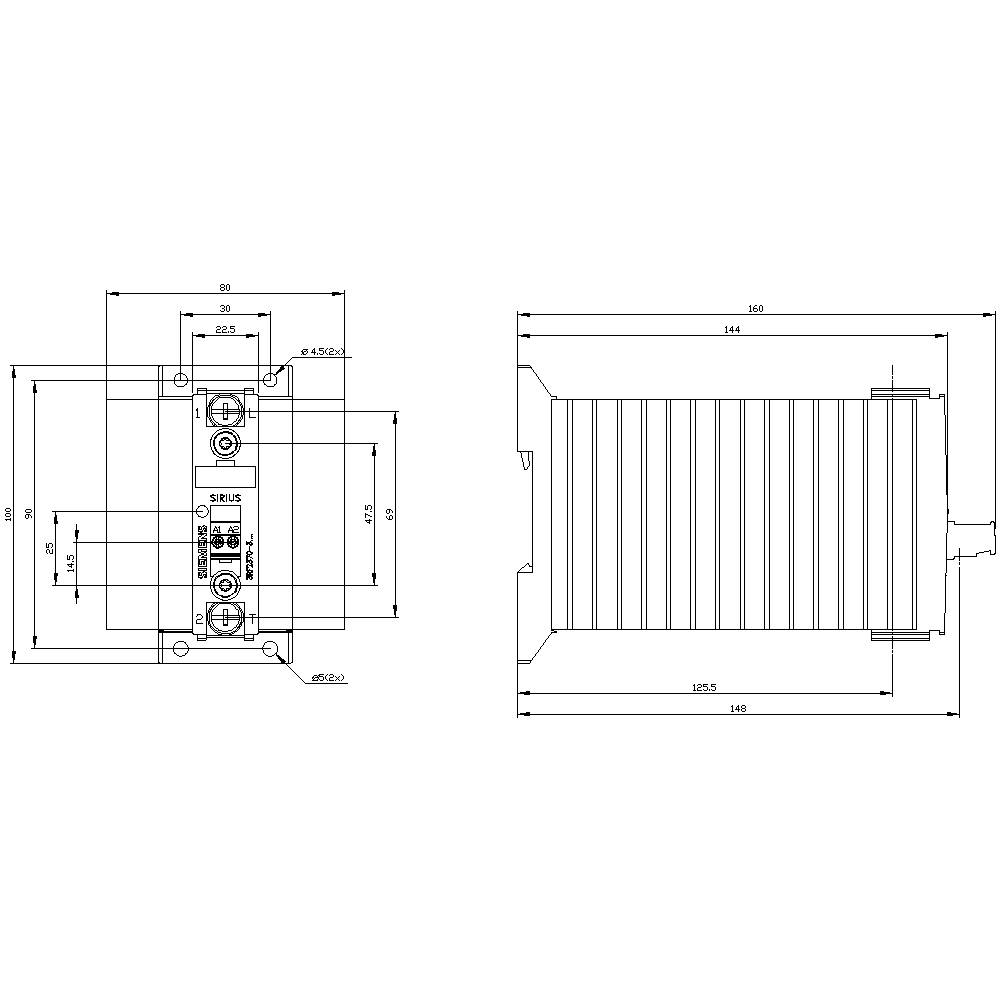

Solid-state contactor 1-phase 3RF2 AC 51 / 70 A / 40 °C 48-460 V / DC 24 V ring cable connection since 21.5.2018 the dimensions and the drilling pattern have changed, further information in the SIRIUS 3RF23 solid-state contactor industry online support for switching resistive/inductive loads, E.g. of radiators or valves in a filling plant.
The devices are wear-free and silent and are ideal for noise-sensitive areas (offices, hospitals). They are extremely reliable even at high switching frequencies. Since the heat sink is already integrated, it can be used directly in the control cabinet. The compact design saves space on the DIN rail. The solid-state contactors can also be expanded by simply clicking on the standardized 3RF29 function modules for a wide range of applications. The devices are approved worldwide (e.g. IEC and UL/CSA).
The solid-state contactors are available as single-phase or three-phase devices. They are available for different power ratings and rated operating voltages. Designed for AC or DC operation, they are available with screw, spring-loaded or ring cable lug connection.
In addition to the 3RF29 function modules, control plugs and terminal covers are also available as accessories.
Simple, efficient, always up-to-date - the SIRIUS modular system.
