Buy Siemens 3RH2122-2AV00 Auxiliary contactor Compatible with (relay brand): Siemens Single 1 pc(s) | Conrad Electronic | Conrad Electronic » All parts of success

All things technology
Delivery within Europe
Right to Cancel applies
Specialist retailer since 1923

A Siemens SIRIUS contactor, an electrical switching device, for controlling machines and motors, shown in a perspective view.

A Siemens SIRIUS contactor, an electrical switching device, for controlling machines and motors, shown in a perspective view.

An open electrical cabinet with various control components and wiring arranged on multiple levels.

'Diagram shows auxiliary shooter with accessories. Functional unit, connection terminals and components such as load disconnection adapter and LED modules.'

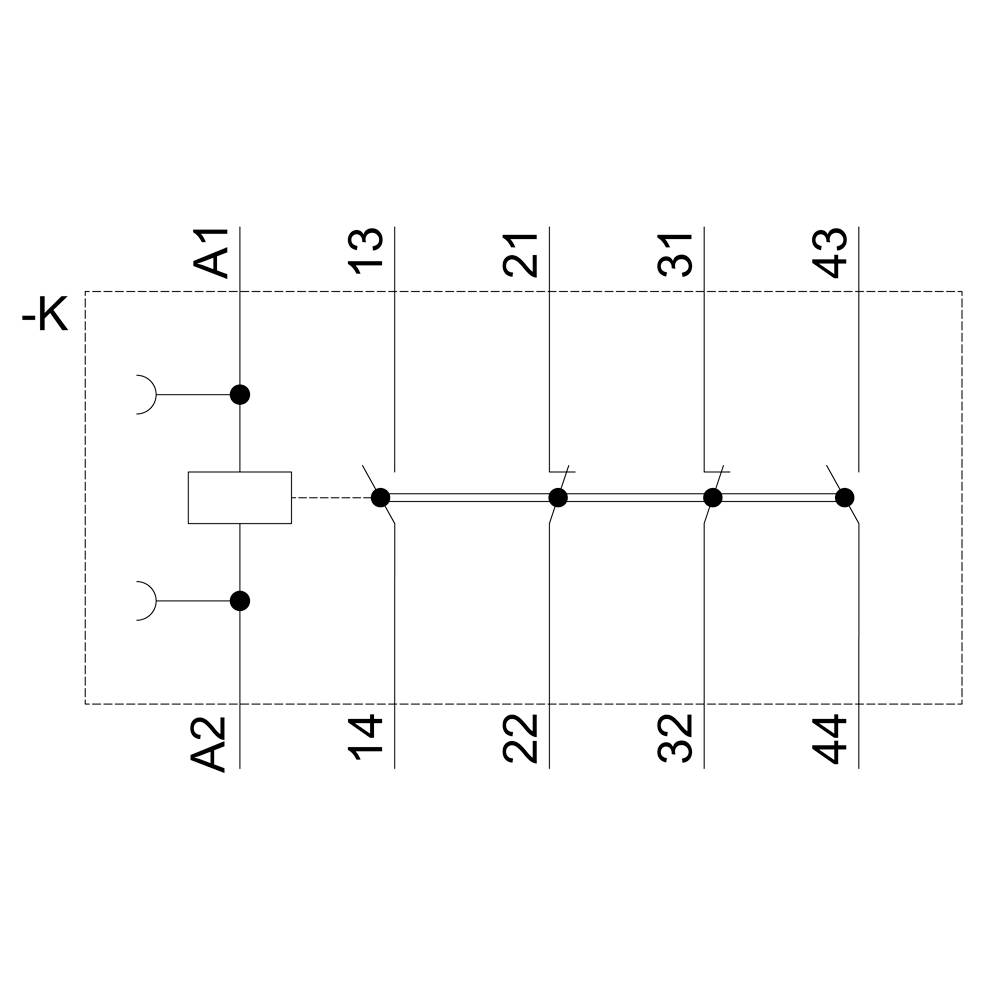

Diagram of an electrical circuit plan with a series of switching points. Shows branches from nodes A1 to A2 and 13 to 44.

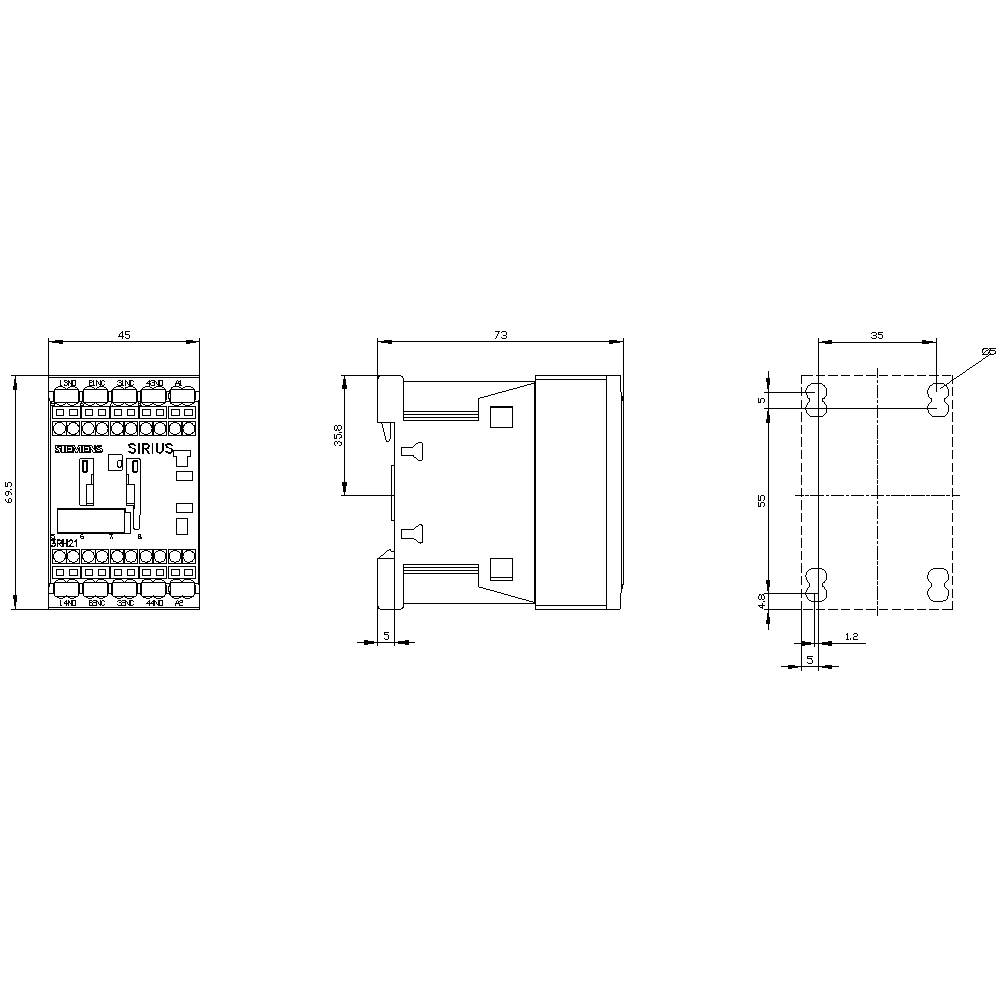

Technical drawing of a device with three views: Front view shows circuit boards; side view and top view display dimensions.

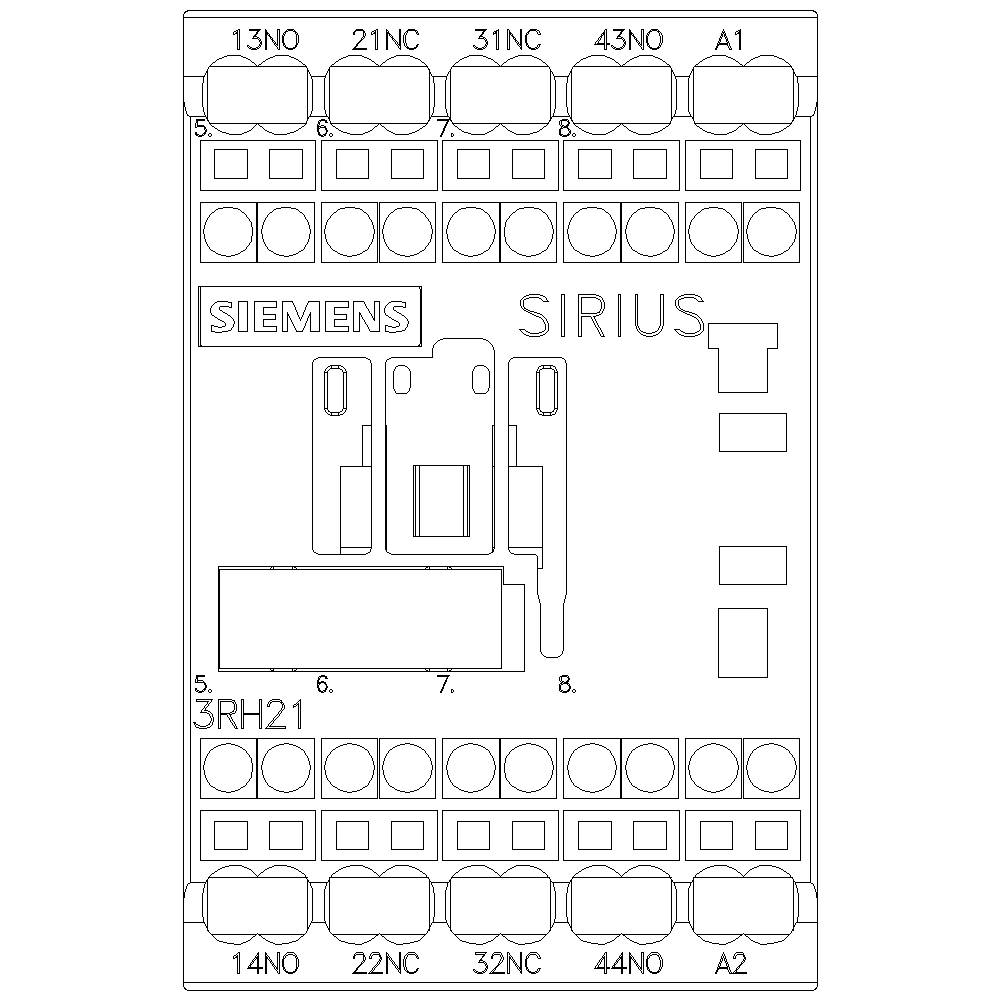

Circuit diagram of a Siemens SIRIUS relay module, showing contacts and connection numbers. Top: 13NO to 43NC, bottom: 14NO to 44NO.

1/6

Image similar

Siemens

Product type

Auxiliary contactor

No. of pins

4-pin

Connection

Spring-loaded connector

Packaging type

Single

Type

3RH2122-2AV00

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Thu 19 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 59.99 / piece)

€ 59.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Type of voltage: AC

Packaging type: Single

Product type: Auxiliary contactor

Type: 3RH2122-2AV00

Type: S00

No. of pins: 4-pin

Auxiliary contact type: 2 makers
2 breakers

Control voltage (max.): 400 V AC

Control voltage range: 400 V AC (max)

Compatible with: Siemens

Compatible with series: Siemens S00 type

Mounting type: Snap-in
Screw-fit

Connection: Spring-loaded connector

Durability: 3000 0000

: IP20

Min. temperature: -25 °C

Max. temperature: +60 °C

Width: 45 mm

Height: 70 mm

Depth: 73 mm

Dim: (W x H x D) 45 x 70 x 73 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: 2

: 2

: 3 A

: Spring clamp connection

: AC

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1702375 Siemens 3RH2122-2AV00 Auxiliary contactor Compatible with (relay brand): Siemens Single 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1702375 Siemens 3RH2122-2AV00 Auxiliary contactor Compatible with (relay brand): Siemens Single 1 pc(s)

Description

power contactor, AC-3 12 A, 5.5 kW / 400 V 1 NC, 24 V DC 0.7-1.25*US with integrated suppressor diode 3-pole, Size S00 Spring-type terminal suitable for PLC outputs

Hints

Please note that the product is a custom-made and therefore exempt from the returns policy. Special order, no right of withdrawal.

Description

power contactor, AC-3 12 A, 5.5 kW / 400 V 1 NC, 24 V DC 0.7-1.25*US with integrated suppressor diode 3-pole, Size S00 Spring-type terminal suitable for PLC outputs

Hints

Please note that the product is a custom-made and therefore exempt from the returns policy. Special order, no right of withdrawal.
