Name: Siemens 3RT2024-1DB44-3MA0 Electrical contactor 3 makers 5.5 kW 690 V AC + varistor Compatible with (relay brand): Sieme
Brand: Siemens
SKU: 1741014
Availability: BackOrder

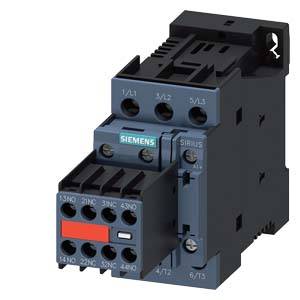

A Siemens electrical power switch with multiple connections.

Electrical control cabinet full of components on the left; wet, rain-covered glass pane on the right with a blurred industrial object behind it.

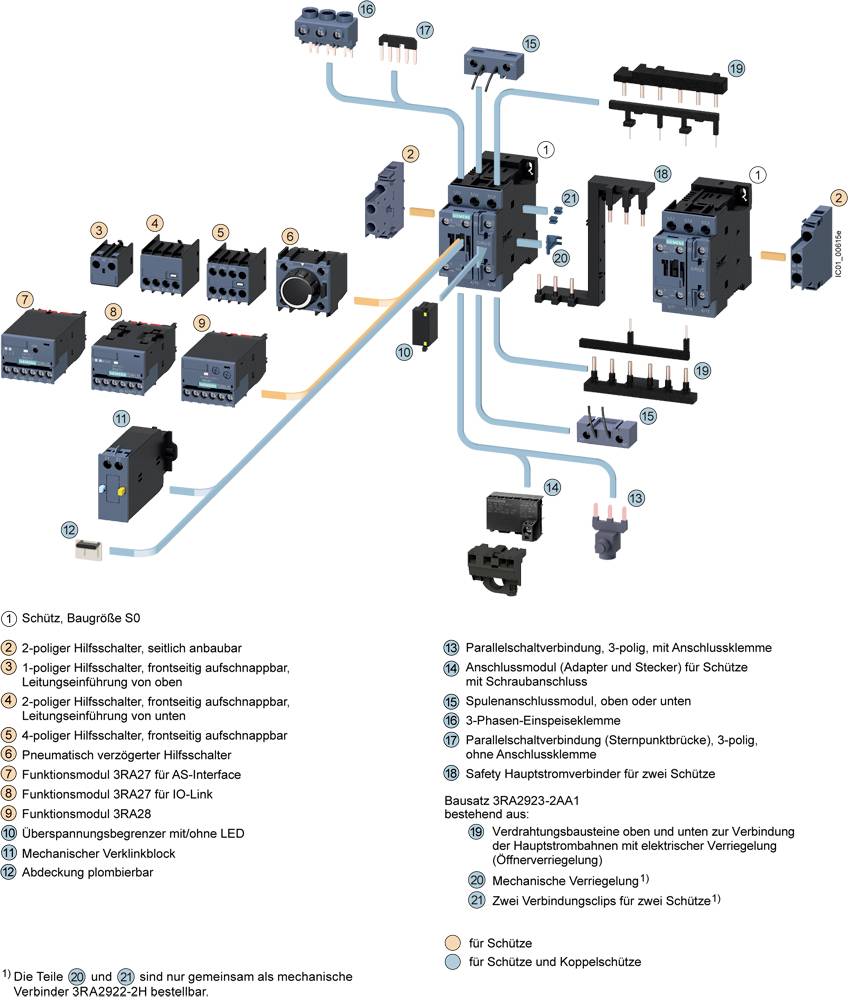

Electrical Circuit Diagram Sketch: shows the connection and function of contactors, auxiliary contactors, and accessories with labelling.

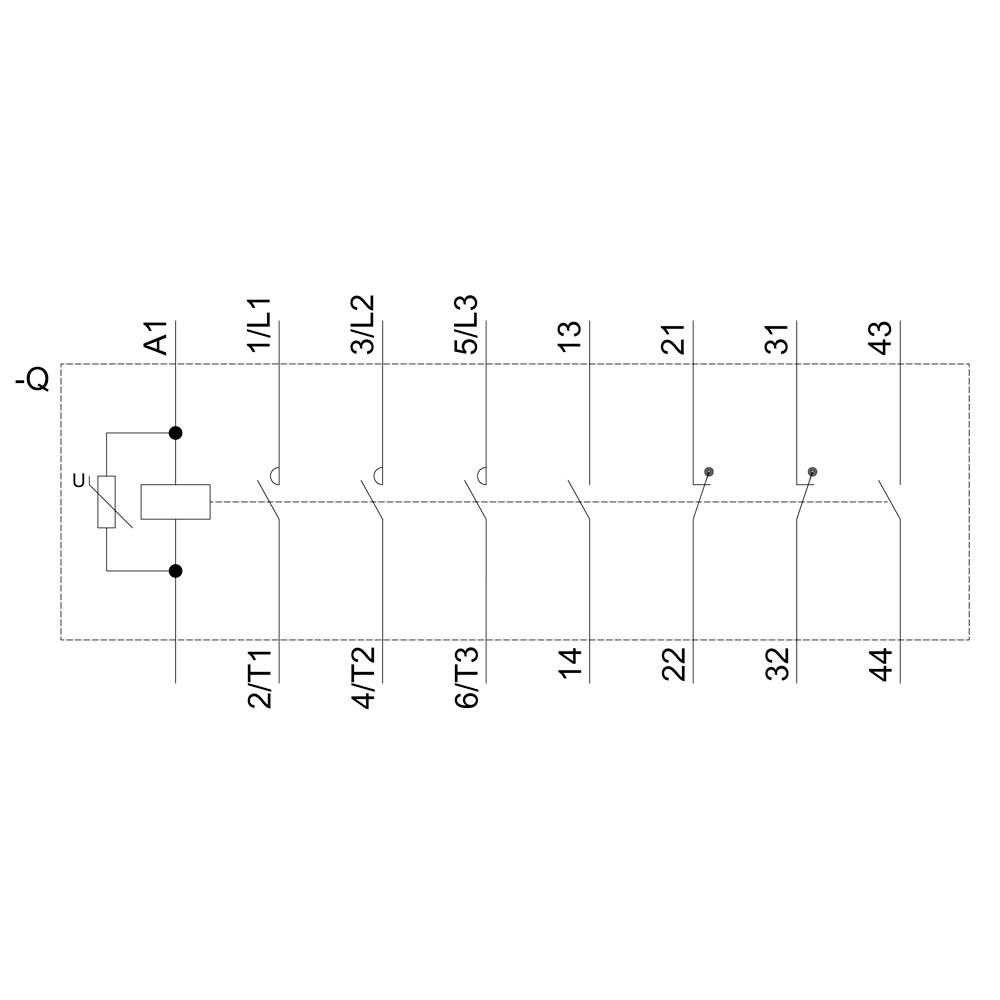

'Electronic circuit diagram of a relay with terminals A1, 1/L1, 3/L2, 5/L3, and outgoing connections 2/T1, 4/T2, 6/T3.'

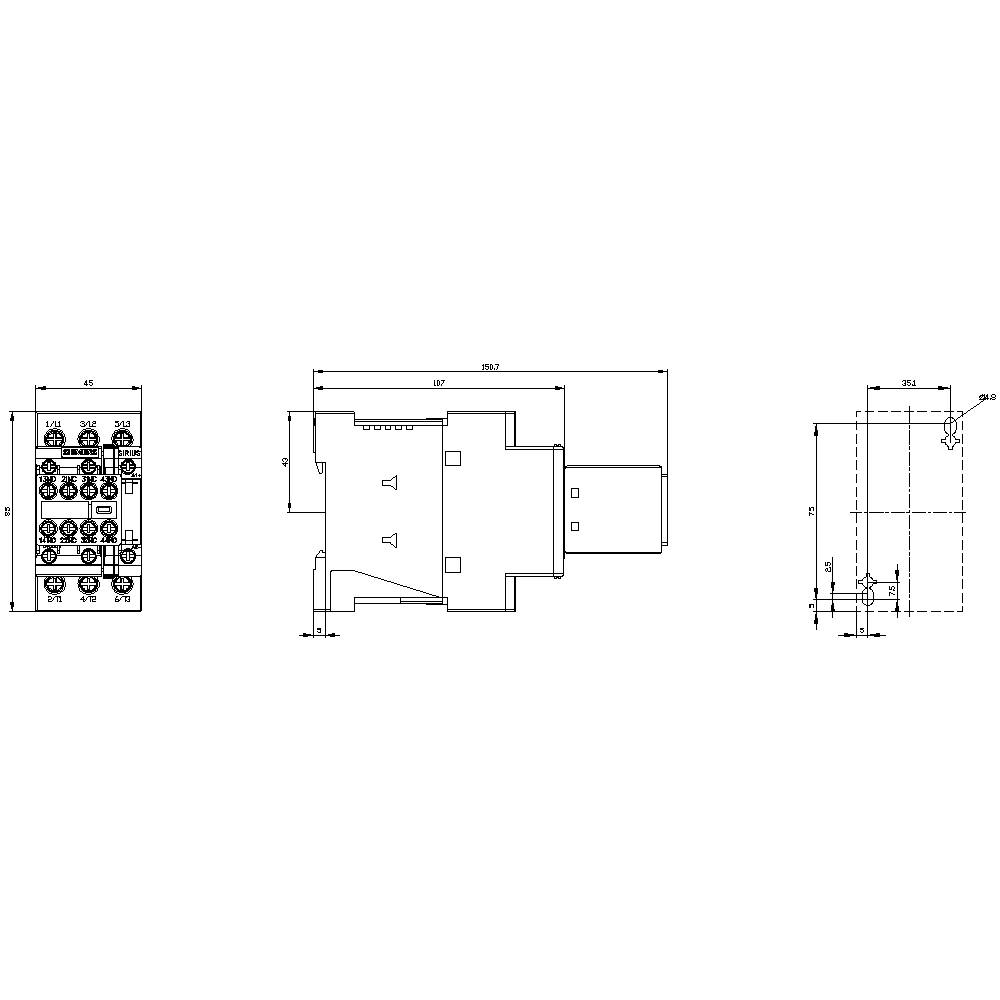

Technical drawing of an electrical component with front, side, and top views. Dimensions and connections are shown in detail.

'Relay circuit diagram with terminal labelling: L1, L2, L3, T1, T3, T5. Centrally at the top is written 'SIEMENS SIRIUS''

1/6

Image similar

Product type

Electrical contactor

No. of pins

3-pin

Nominal voltage

690 V AC

Power

5.5 kW

Connection

Screws

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Thu 12 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 139.99 / piece)

€ 139.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Type of voltage: DC
Conductor cross-section single or multi-strand: 10 mm²
Conductor cross-section for finely-stranded: 10 mm²

Product type: Electrical contactor

Type: 3RT2024-1DB44-3MA0

Type: S0

No. of pins: 3-pin

Contact type: 3 makers

Auxiliary contact type: 2 makers

Nominal voltage: 690 V AC

Switching voltage (max.): 690 V AC

Permanent current (max.): 12 A

: 5.5 kW

Compatible with: Siemens

Compatible with series: Siemens Sirius series

Features: + varistor

Mounting type: Snap-in
Screw-fit

Connection: Screws

Durability: 1000 0000

: IP20

Min. temperature: -25 °C

Max. temperature: +60 °C

Width: 45 mm

Height: 85 mm

Depth: 151 mm

Dim: (W x H x D) 45 x 85 x 151 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: TRUE

: 5.5 kW

: 3

: 2

: 2

: 12 A

: 40 A

: Screw connection

: DC

: 12.5 A

: 5.516240625

UKCA: yes
