Siemens 3RT2047-1SB30 Electrical contactor 55 kW + varistor Compatible with (relay brand): Siemens 1 pc(s)

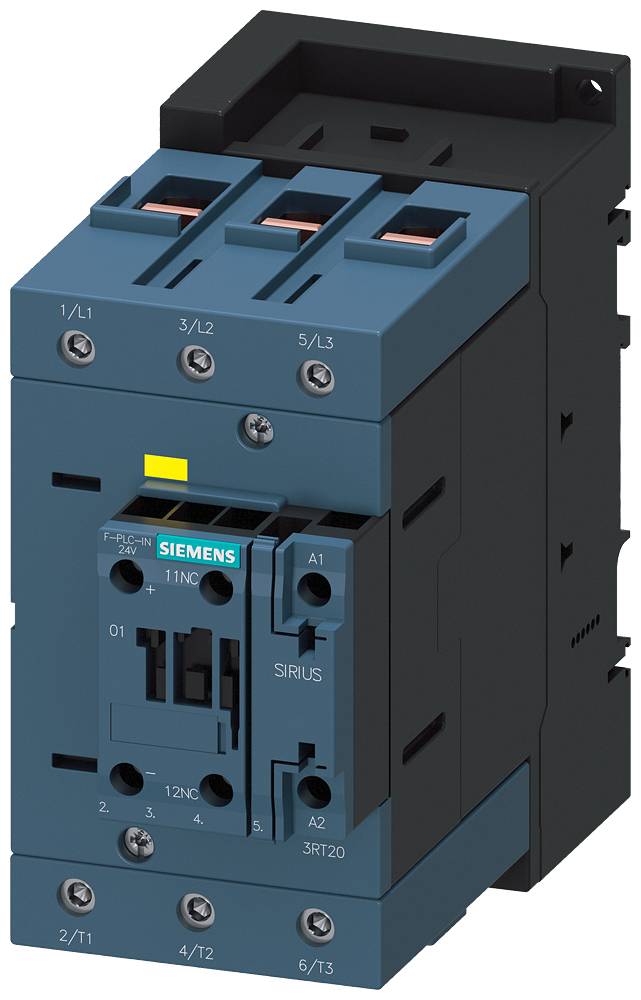

A blue electrical circuit breaker with multiple terminals and a manufacturer's logo on the front. Used for controlling electrical circuits.
Interior view of an industrial machine with a control panel on the left and a large window on the right, through which raindrops are visible.

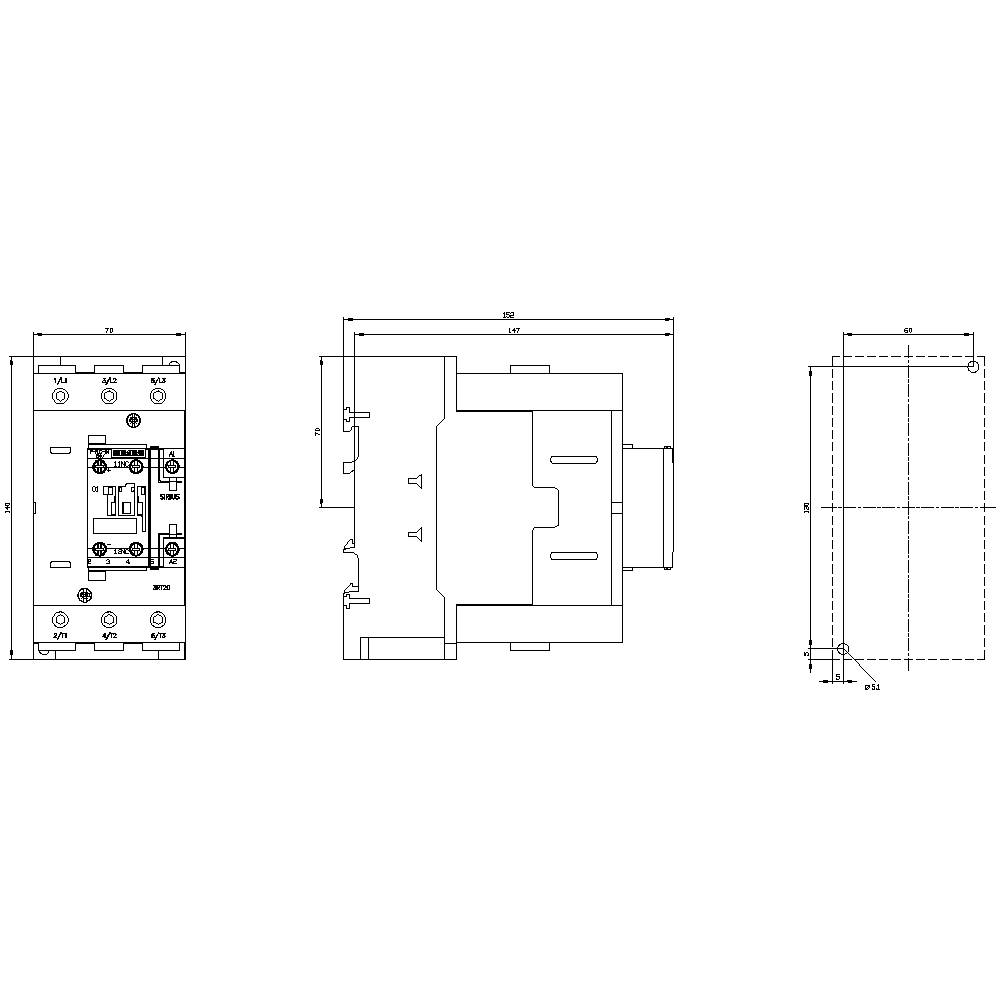

Technical drawing of an electrical switch with front, side, and top views, including dimensional specifications in millimetres.

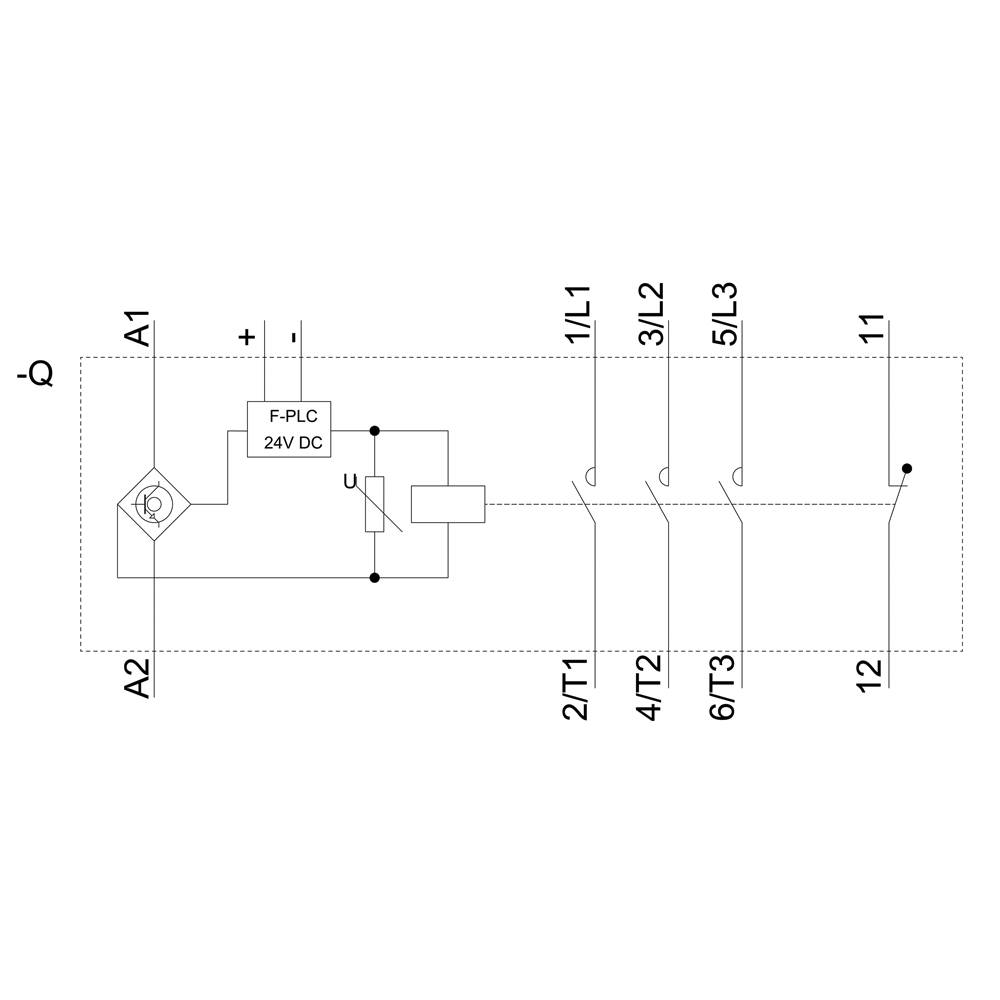

'Circuit diagram with 24V DC F-PLC connected to various terminals, labelled as 1/L1, 3/L2, 5/L3, and 2/T1, 4/T2, 6/T3.'
1/4
Image similar
Product type
Electrical contactor
No. of pins
3-pin
Power
55 kW
Type
3RT2047-1SB30
Type
S3
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Highlights & Details

Sluice, AC-3e, 110A/400V, 3-pin, AC/DC 21-33V, F-PLC-IN, 1O, SCREW CONNECTION

Our service for you

Technical specifications

Product type

Electrical contactor

Type

3RT2047-1SB30

Type

S3

No. of pins

3-pin

Auxiliary contact type

1 breaker

Permanent current (max.)

110 A

55 kW

Compatible with

Siemens

Features

+ varistor

Content

1 pc(s)

RoHS-compliant

Yes

55 kW

3

0

1

110 A

130 A

Screw connection

AC/DC

97 A

55.16240625

UKCA

not relevant

Documents & Downloads

Datasheet

Datasheet 2871839 Siemens 3RT2047-1SB30 Electrical contactor 55 kW + varistor Compatible with (relay brand): Siemens 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2871839 Siemens 3RT2047-1SB30 Electrical contactor 55 kW + varistor Compatible with (relay brand): Siemens 1 pc(s)

Description

Power protection, AC-3e/AC-3, 110 A, 55 kW /400 V, 3-pin, AC/DC 21-33 V, 50/60 Hz, with integrated varistor, Auxiliary contacts:1 NC, screw terminal, F-PLC-IN

This text is machine translated.

Accessories

(*All information is plus legal VAT)

The necessary accessories are required to use the article as described.
