Name: Siemens 3RV2011-0FA25 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.35 - 0.5 A Switching voltage (max.): 690 V
Brand: Siemens
SKU: 1740359
Availability: InStock

Siemens Sirius contactor in grey, front view. Key component for electrical switching systems with multiple connection terminals.

An open electrical cabinet reveals various cables and components. In the background, rain-streaked glass panes and blurred machinery can be seen.

'Mounting accessories for circuit breakers: Transverse auxiliary switch (1), Lateral auxiliary switch (2), Main switch (3), Signalling device (4).'

'Circuit diagram: On the left, three phases marked T1, T2, T3. In the centre, three switches. On the right, connection to two further contacts.'

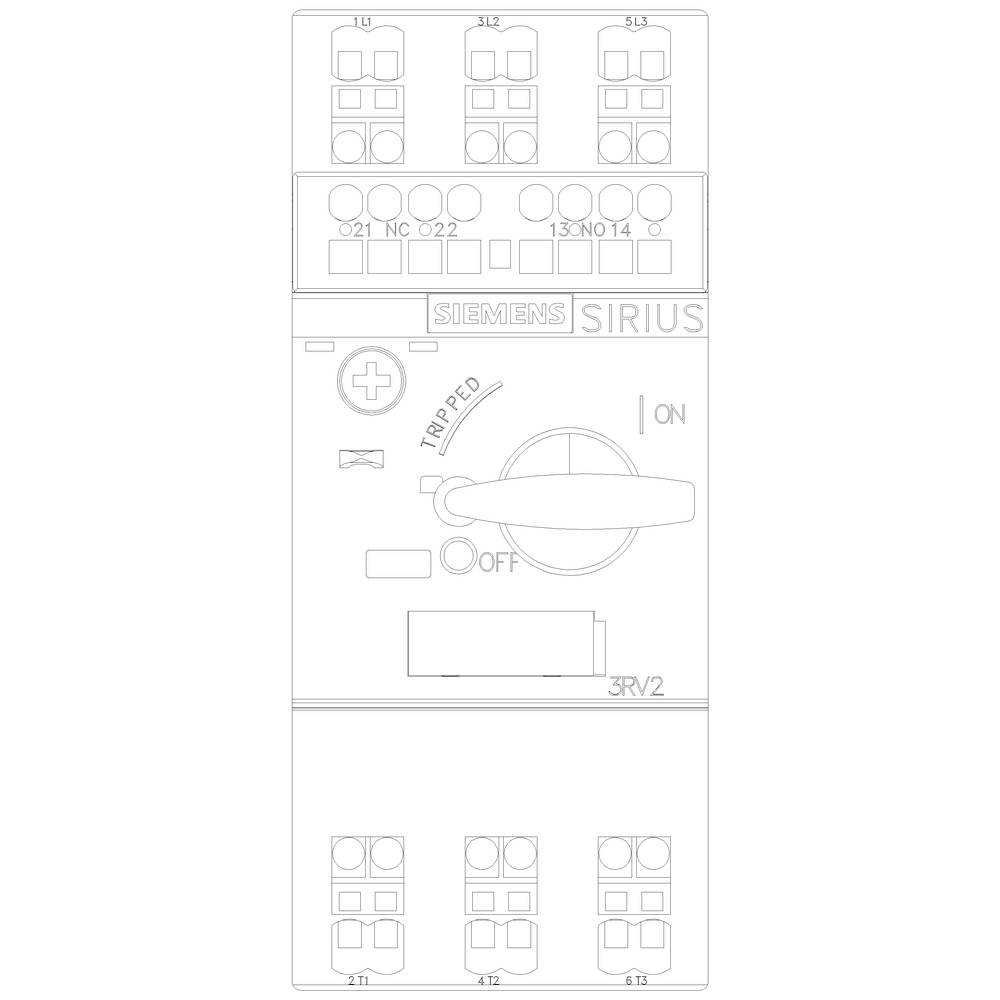

'Siemens SIRIUS' Switching Diagram. Shows switch positions: 'ON', 'OFF', 'TRIPPED'. Connection terminals are located at the top and bottom.

1/6

Image similar

Product type

Circuit breaker

Amperage adjustment range (max.)

0.5 A

Connection

Spring-loaded connector

Type

3RV2011-0FA25

Type

S00

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Fri 6 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 114.99 / piece)

€ 114.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Continuous current: 0.5 A
Mechanical life of main contacts: 100,000 switching cycles
Max. Conductor cross-section (solid or stranded): 4 mm²
Max. Conductor cross-section (fine): 2.5 mm²

Product type: Circuit breaker

Type: 3RV2011-0FA25

Type: S00

Amperage adjustment range (min.): 0.35 A

Amperage adjustment range (max.): 0.5 A

Adjustment range (amperage): 0.35 - 0.5 A

No. of pins: 3-pin

Switching voltage (max.): 690 V AC

Compatible with series: Siemens Sirius series

Compatible with: Siemens

Mounting type: Snap-in
Screw-fit

Min. temperature: -20 °C

Max. temperature: +60 °C

Features: + auxiliary contact

Connection: Spring-loaded connector

: IP20

Depth: 97 mm

Width: 45 mm

Height: 106 mm

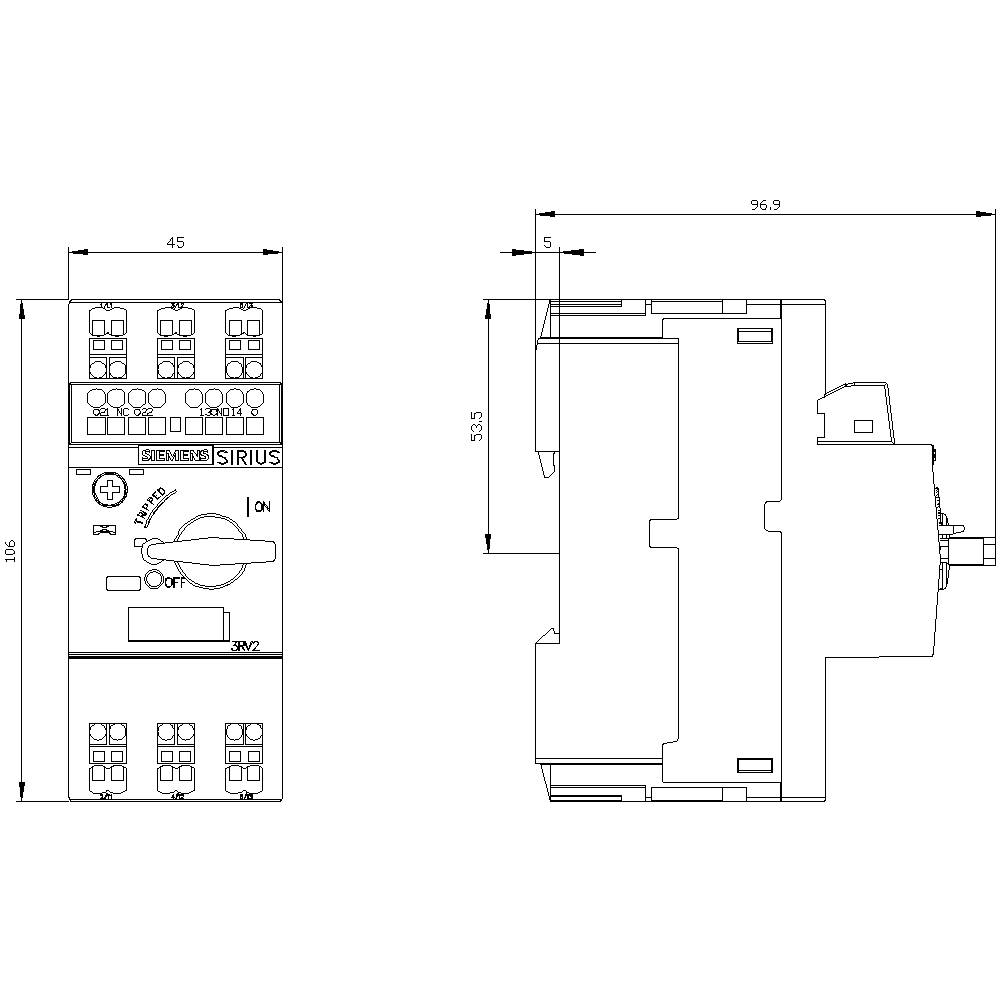

Dim: (W x H x D) 45 x 106 x 97 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: 45

: 106 mm

: 97 mm

: 0.12 kW

: TRUE

: 0.5 A

: FALSE

: 3

: 690-690 V

: 0.35-0.5 A

: IP20

: TRUE

: Spring clamp connection

: Turn button

: Magnetic

: 0.1 kW

: 100 kA

: TRUE

: Built-in device fixed built-in technique

UKCA: yes

Variants(All information include VAT, plus shipping costs)

Amperage adjustment range (max.)

Amperage adjustment range (min.)

Packaging type

Siemens 3RV1011-0AA10 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.11 - 0.16 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 90 x 75 mm Piece

Item no:1745448

Dispatches on Tue 10 Nov

Conrad Electronic

0.16 A

0.11 A

Piece

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 91.99^*

Siemens 3RV1011-0AA15 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.11 - 0.16 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 90 x 75 mm

Item no:1745449

Dispatches on Tue 10 Nov

Conrad Electronic

0.16 A

0.11 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 114.99^*

Siemens 3RV1011-0BA10 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.14 - 0.2 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 90 x 75 mm Piece

Item no:1745450

Dispatches on Tue 10 Nov

Conrad Electronic

0.2 A

0.14 A

Piece

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 91.99^*

Siemens 3RV1011-0BA15 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.14 - 0.2 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 90 x 75 mm

Item no:1745452

Dispatches on Tue 10 Nov

Conrad Electronic

0.2 A

0.14 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 114.99^*

Siemens 3RV1011-0CA15 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.18 - 0.25 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 90 x 75 mm Piece

Item no:1745453

Dispatches on Tue 10 Nov

Conrad Electronic

0.25 A

0.18 A

Piece

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 114.99^*

Siemens 3RV1011-0DA15 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.22 - 0.32 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 90 x 75 mm Piece

Item no:1745454

Dispatches on Tue 10 Nov

Conrad Electronic

0.32 A

0.22 A

Piece

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 114.99^*

Siemens 3RV1011-0EA15 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.28 - 0.4 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 90 x 75 mm Piece

Item no:1745455

Dispatches on Tue 10 Nov

Conrad Electronic

0.4 A

0.28 A

Piece

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 114.99^*

Siemens 3RV1011-0FA15 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.35 - 0.5 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 90 x 75 mm Single

Item no:1745456

Dispatches on Tue 10 Nov

Conrad Electronic

0.5 A

0.35 A

Single

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 114.99^*

Siemens 3RV1011-0GA15 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.45 - 0.63 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 90 x 75 mm Piece

Item no:1745457

Dispatches on Tue 10 Nov

Conrad Electronic

0.63 A

0.45 A

Piece

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 119.99^*

Siemens 3RV1011-0HA15 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.55 - 0.8 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 90 x 75 mm Piece

Item no:1745458

Dispatches on Tue 10 Nov

Conrad Electronic

0.8 A

0.55 A

Piece

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 124.99^*

Documents & Downloads

Datasheet

Datasheet 1740359 Siemens 3RV2011-0FA25 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.35 - 0.5 A Switching voltage (max.): 690 V

User & Safety Instructions

User & Safety Instructions 1740359 Siemens 3RV2011-0FA25 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.35 - 0.5 A Switching voltage (max.): 690 V

Description

Special type Circuit breaker size S00 for starter combination rated current 16 A N-release 208 A Spring-type terminal Standard switching capacity Ambient temperature -50 °C 500 switching cycles

Description

Special type Circuit breaker size S00 for starter combination rated current 16 A N-release 208 A Spring-type terminal Standard switching capacity Ambient temperature -50 °C 500 switching cycles
