Name: Siemens 3RV2011-0KA25 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.9 - 1.25 A Switching voltage (max.): 690 V
Brand: Siemens
SKU: 1740388
Availability: BackOrder

A Siemens electric motor protection circuit breaker, model Sirius. It is used to protect motors against overload and short-circuit.

Open electrical cabinet with cables and switchgear on the left. On the right in the background, a window with raindrops and a blurred view of machinery.

Circuit Diagram: Representation of switch modules and accessories with numbering. Shows interconnections and accessory usage for circuit breakers.

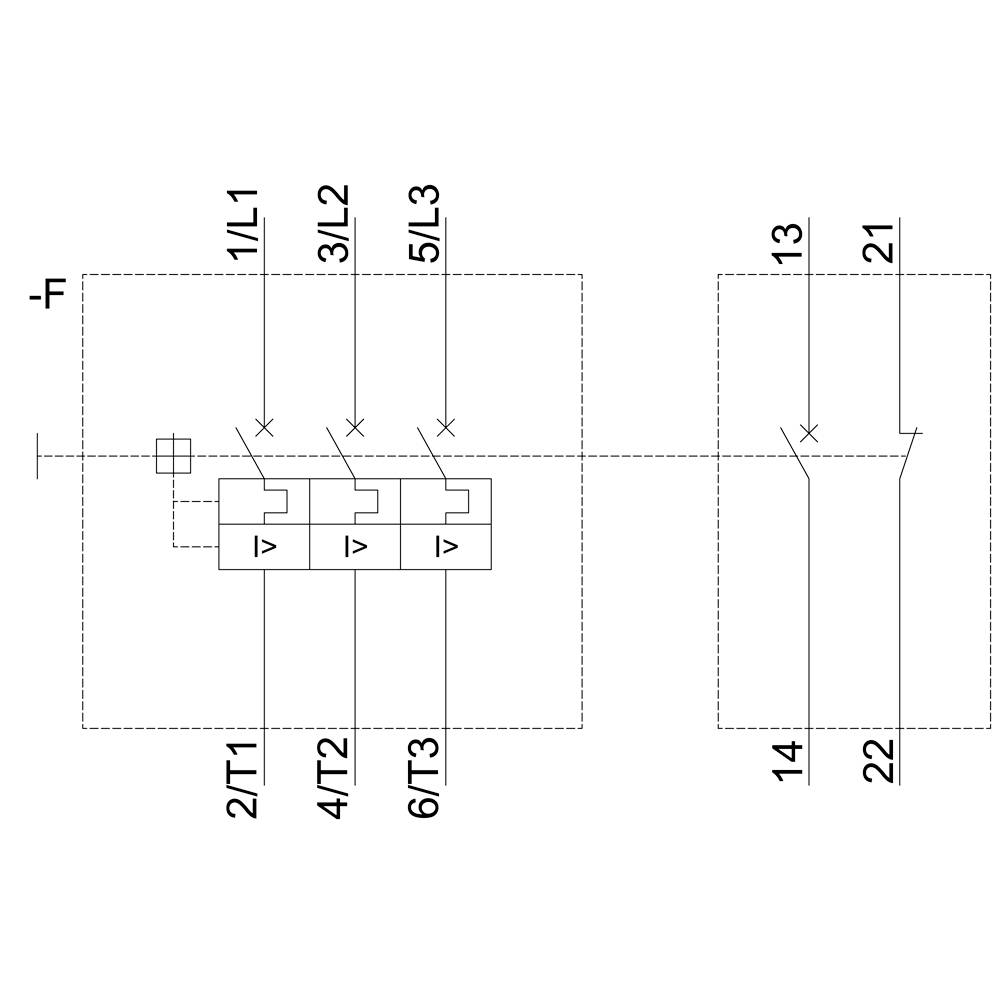

'Three-phase circuit diagram shows three switches with labels 1/L1, 3/L2, 5/L3 on the left side and 13, 14, 21, 22 on the right.'

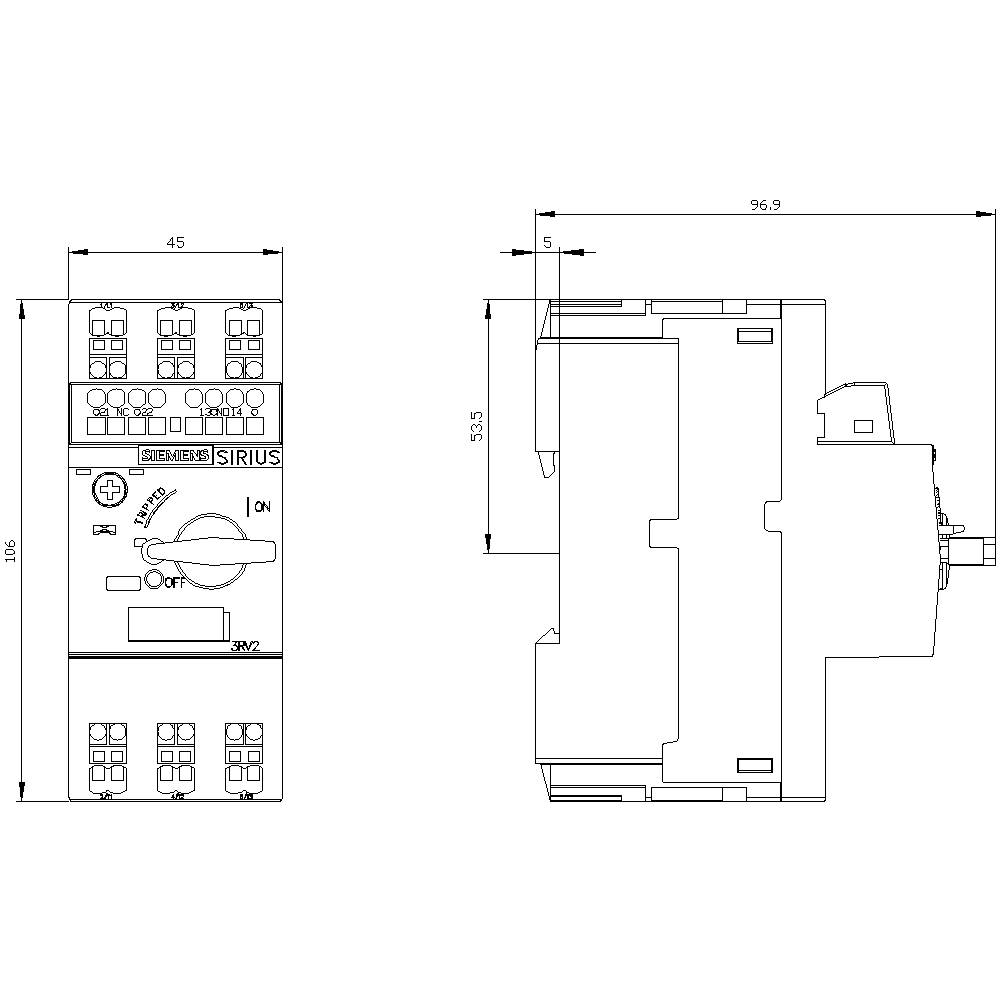

'Technical drawing of a SIRIUS contactor device, front and side view, with precise dimensions in millimetres.'

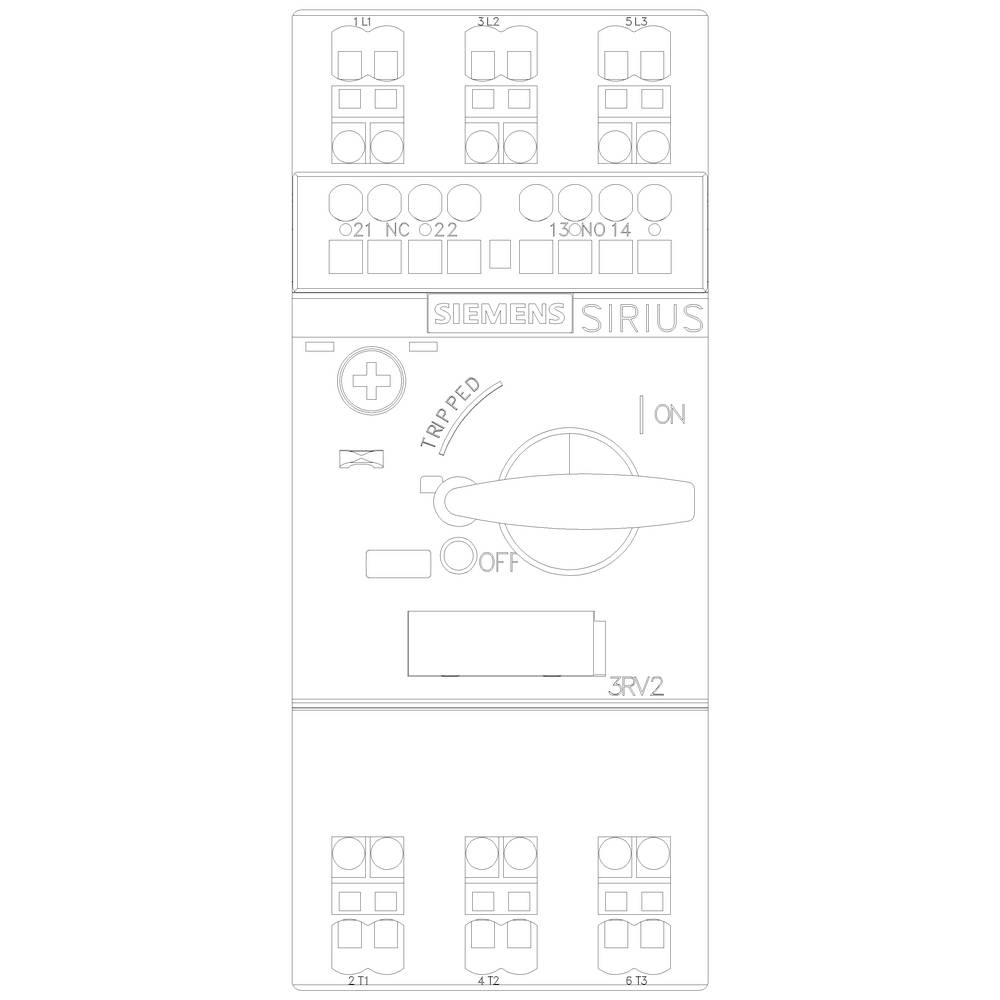

A Siemens Sirius switching device with a rotary switch that has a position indicator in the centre for 'ON', 'TRIPPED' and 'OFF'.

1/6

Image similar

Product type

Circuit breaker

Amperage adjustment range (max.)

1.25 A

Connection

Spring-loaded connector

Packaging type

Piece

Type

3RV2011-0KA25

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Tue 10 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 119.99 / piece)

€ 125.00

€ 119.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

CONT.,AC3:45KW,400VAC 50HZ/400.440V60HZ

Our service for you

Technical specifications

Continuous current 1.25 A
Mechanical life of main contacts: 100,000 switching cycles
Max. Conductor cross-section (solid or stranded): 4 mm²
Max. Conductor cross-section (fine): 2.5 mm²

Packaging type: Piece

Product type: Circuit breaker

Type: 3RV2011-0KA25

Type: S00

Amperage adjustment range (min.): 0.9 A

Amperage adjustment range (max.): 1.25 A

Adjustment range (amperage): 0.9 - 1.25 A

No. of pins: 3-pin

Switching voltage (max.): 690 V AC

Compatible with series: Siemens Sirius series

Compatible with: Siemens

Mounting type: Snap-in
Screw-fit

Min. temperature: -20 °C

Max. temperature: +60 °C

Features: + auxiliary contact

Connection: Spring-loaded connector

: IP20

Depth: 97 mm

Width: 45 mm

Height: 106 mm

Dim: (W x H x D) 45 x 106 x 97 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: 45

: 106 mm

: 97 mm

: 0.37 kW

: TRUE

: 1.25 A

: FALSE

: 3

: 690-690 V

: 0.9-1.25 A

: IP20

: TRUE

: Spring clamp connection

: Turn button

: Magnetic

: 0.2 kW

: 100 kA

: TRUE

: Built-in device fixed built-in technique

UKCA: not relevant
