Name: Siemens 3RV2011-1HA25 Circuit breaker 1 pc(s) Adjustment range (amperage): 5.5 - 8 A Switching voltage (max.): 690 V AC
Brand: Siemens
SKU: 1741922
Availability: InStock

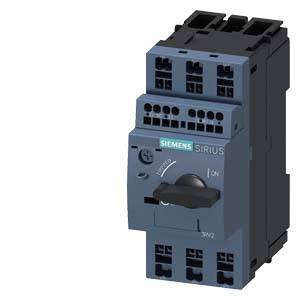

A Siemens electric switch, Sirius model, in grey. The switch is in the 'On' position.

A window separates an open electrical cabinet full of cables and switches from a wet industrial machine in the background.

'Diagram of an electrical system with power switches and accessories. Shows connection points and components such as auxiliary switches and terminal blocks.'

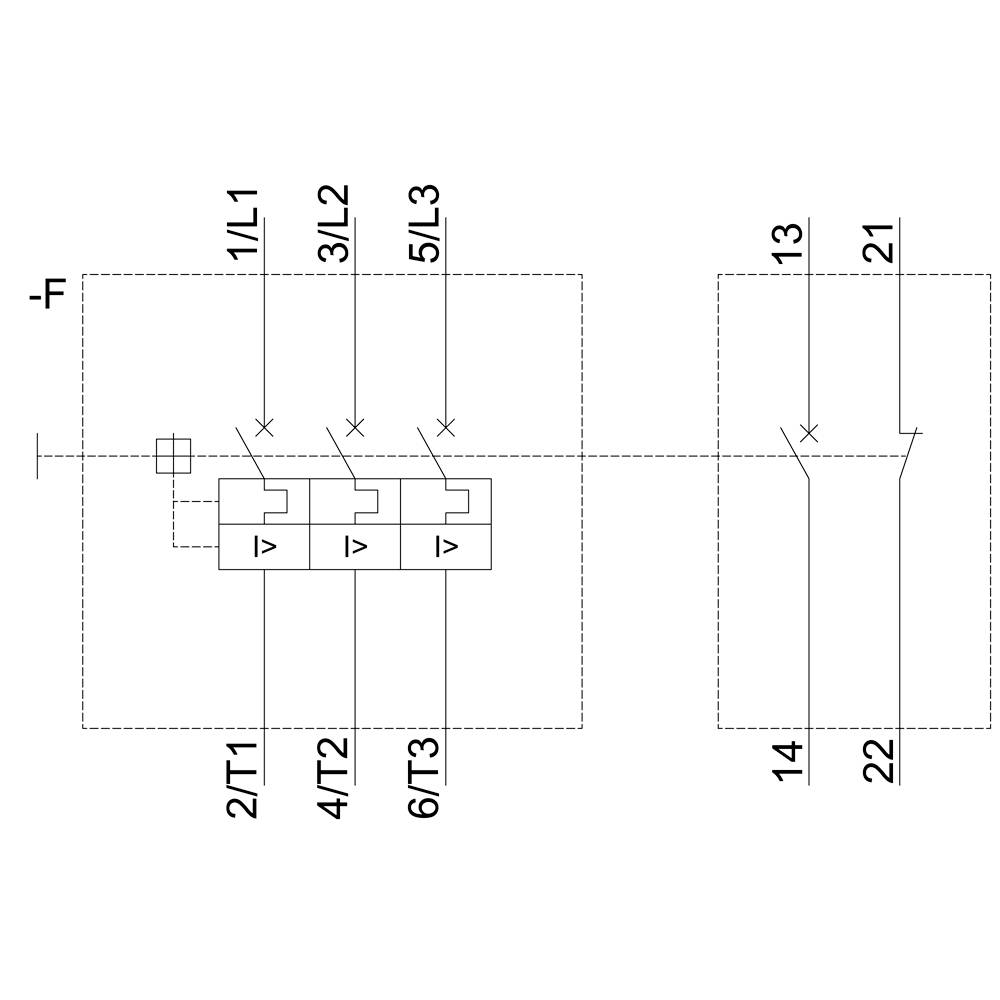

Circuit diagram of an electrical network with three switches, labelled 1L1, 3L2 and 5L3; cables lead to connections 2T1, 4T2, 6T3.

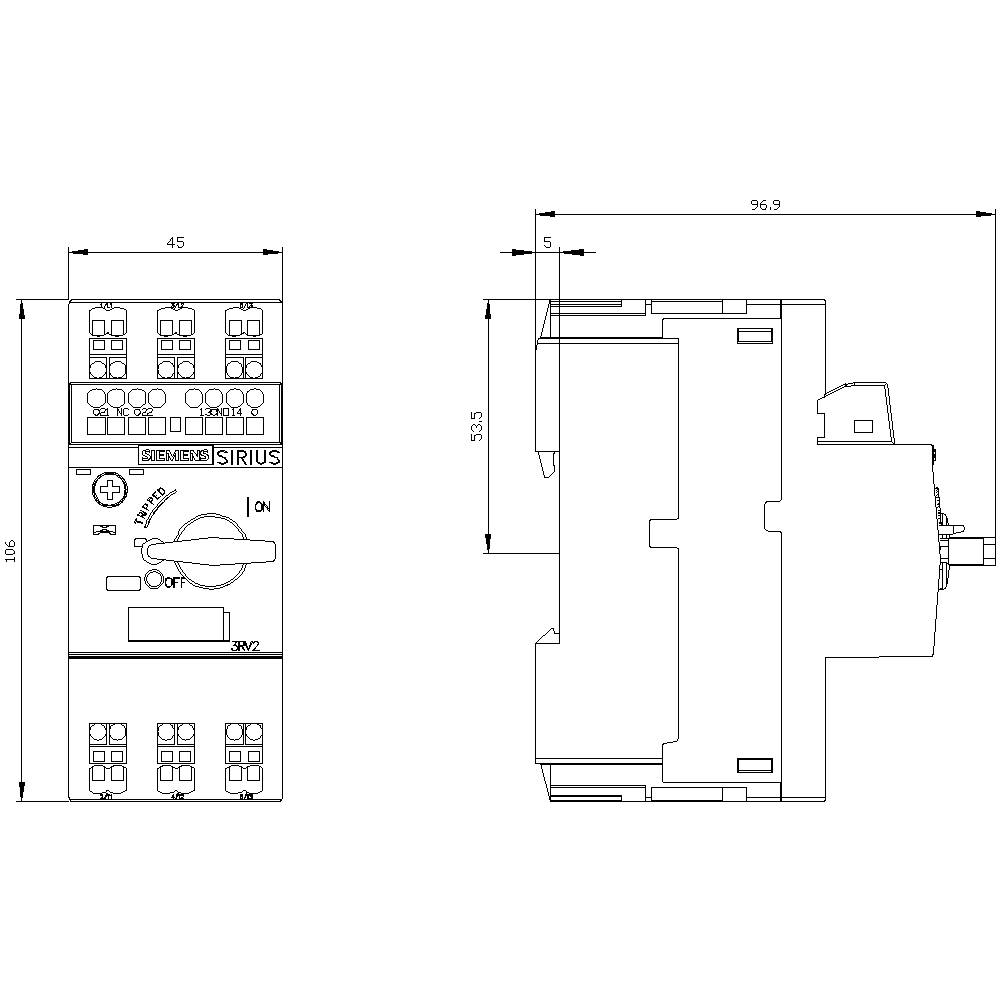

Technical drawing of an electrical switch with dimensional specifications. Front and side views are shown with measurements in millimetres.

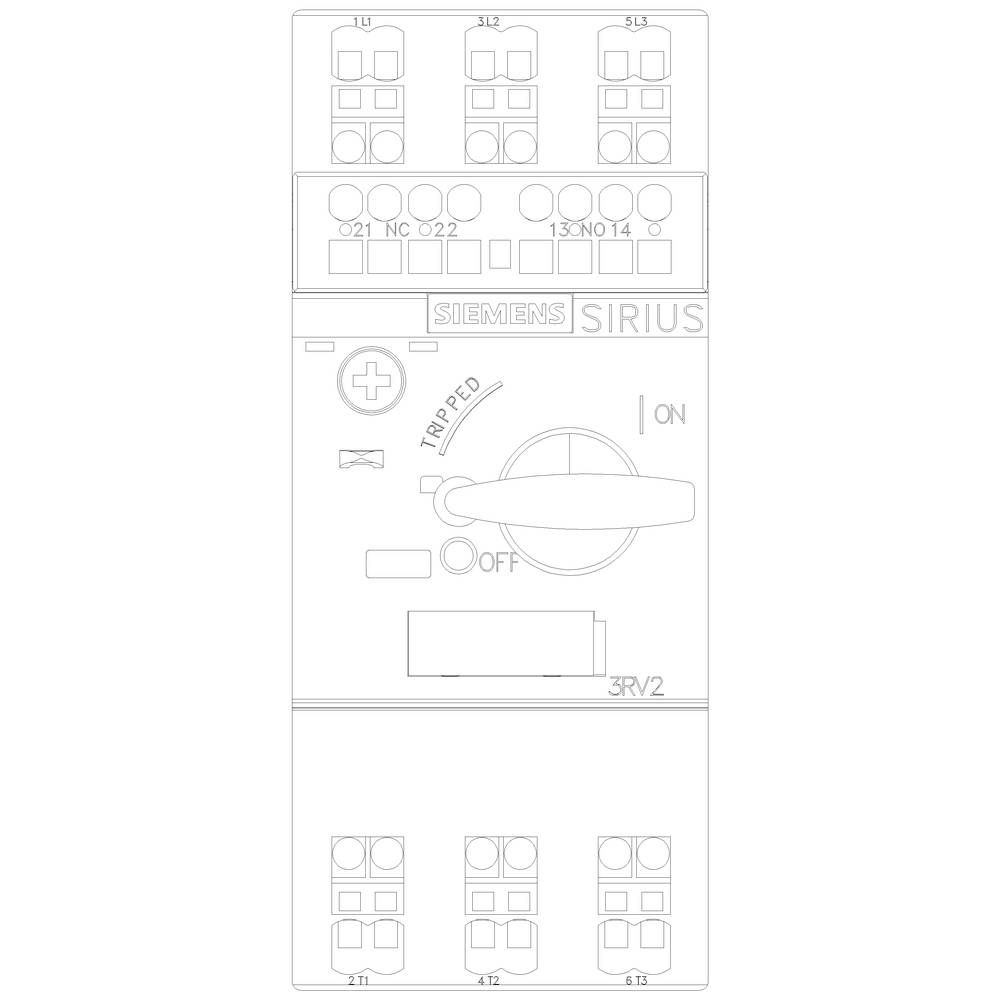

Industrial switch by Siemens, Sirius model, with various connection terminals, switch in mid-position between 'ON' and 'OFF'.

1/6

Image similar

Product type

Circuit breaker

Amperage adjustment range (max.)

8 A

Connection

Spring-loaded connector

Packaging type

Piece

Type

3RV2011-1HA25

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Tue 3 Nov

2 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 124.99 / piece)

€ 124.99

incl. VAT

Only 2 Piece(s) available

14-day return policy included

Report legal concerns

Technical specifications

Continuous current: 8 A
Mechanical life of main contacts: 100,000 switching cycles
Max. Conductor cross-section (solid or stranded): 4 mm²
Max. Conductor cross-section (fine): 2.5 mm²

Packaging type: Piece

Product type: Circuit breaker

Type: 3RV2011-1HA25

Type: S00

Amperage adjustment range (min.): 5.5 A

Amperage adjustment range (max.): 8 A

Adjustment range (amperage): 5.5 - 8 A

No. of pins: 3-pin

Switching voltage (max.): 690 V AC

Mounting type: Snap-in
Screw-fit

Min. temperature: -20 °C

Max. temperature: +60 °C

Features: + auxiliary contact

Connection: Spring-loaded connector

: IP20

Depth: 97 mm

Width: 45 mm

Height: 106 mm

Dim: (W x H x D) 45 x 106 x 97 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: 45

: 106 mm

: 97 mm

: 3 kW

: TRUE

: 8 A

: FALSE

: 3

: 690-690 V

: 5.5-8 A

: IP20

: TRUE

: Spring clamp connection

: Turn button

: Magnetic

: 1.5 kW

: 100 kA

: TRUE

: Built-in device fixed built-in technique

UKCA: yes
