Name: Siemens 3RW4036-1BB04 3RW40361BB04 Soft starter Motor power at 400 V 22 kW 480 V Nominal current 45 A
Brand: Siemens
SKU: 1746942
Availability: BackOrder

Electrical device by Siemens, Sirius model, used for controlling industrial switchgear, housed in a black and grey casing.

An open electrical cabinet with various electrical components and wiring, neatly arranged on multiple shelves.

The circuit diagram shows a soft starter 3RW40 with components such as connecting rails, terminal covers, connection covers, and a fan.

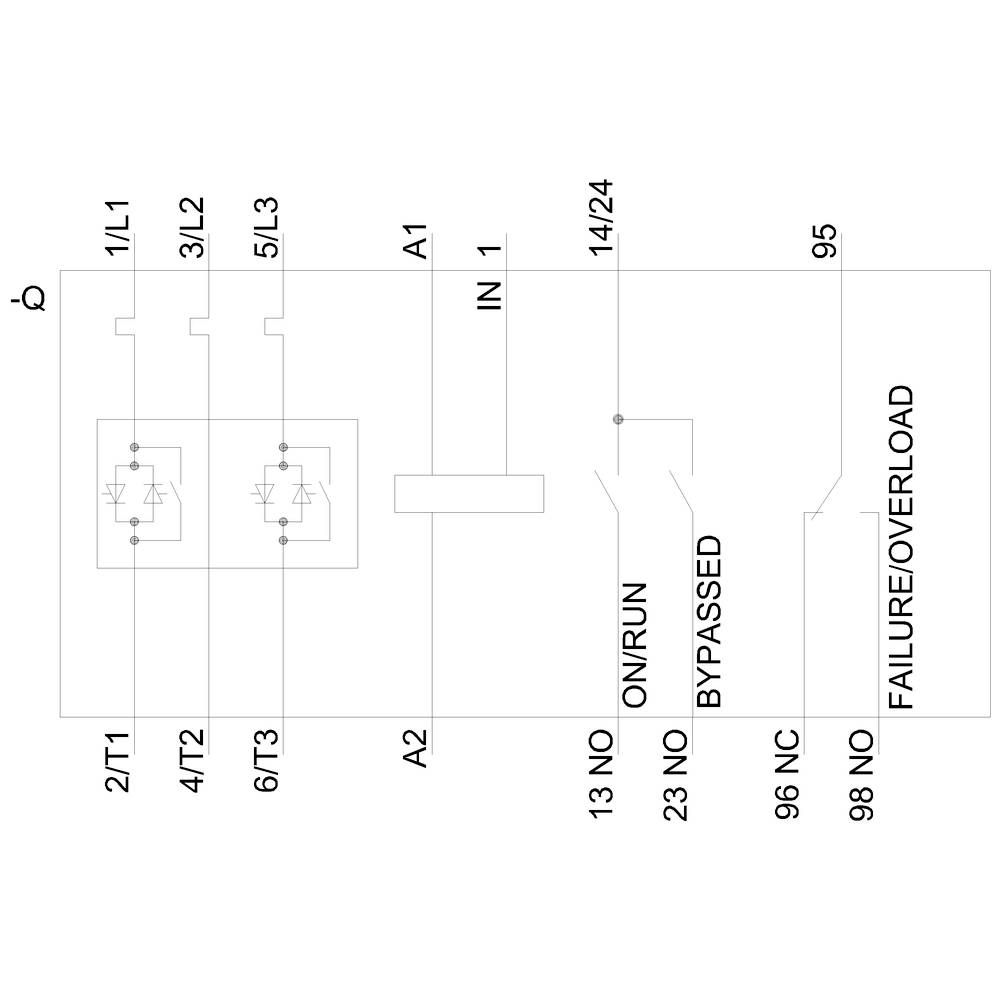

Circuit diagram shows contactor circuit with on/off switch, overload protection and bypass. Labels include 'ON/RUN', 'BYPASSED', 'FAILURE/OVERLOAD'.

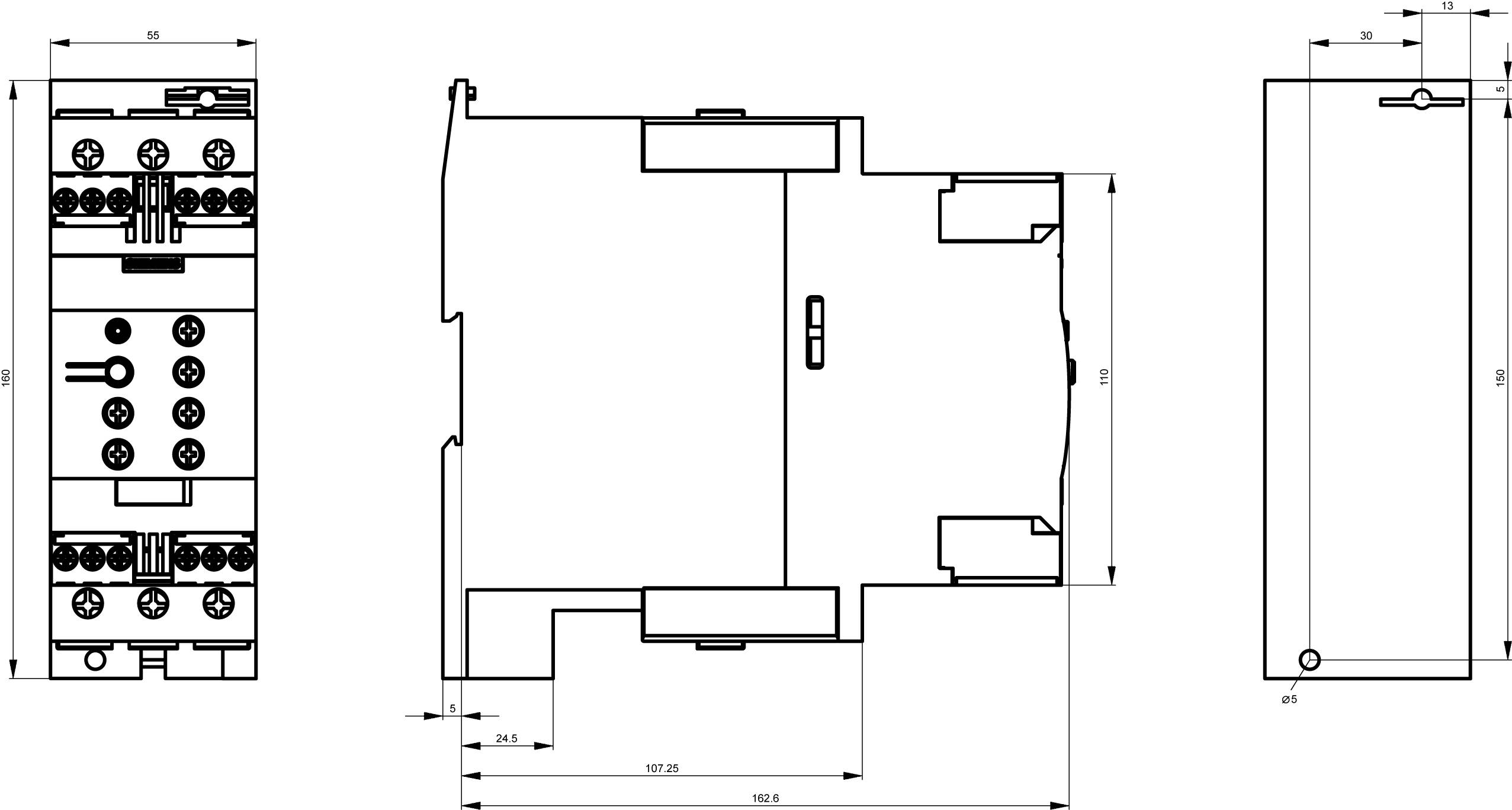

Technical drawing of an electrical device with front and side views. Dimensions are given in millimetres.

1/5

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Wed 11 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 929.00 / piece)

€ 929.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Protection class: IP00
Mounting type: screw and snap
Number of normally open contact: 2
Number of changer: 1
Size S2
Operating frequency: 50/60 Hz
Isolation voltage: 600 V

Motor voltage: 400 V

Product type: Soft starter

Supply current: 45 A

Motor power at 400 V: 22 kW

Nominal voltage: 480 V

Type: Screw connector

Manufacturer part #: 3RW40361BB04

Nominal current: 45 A

Nominal current - rounded value: 45 A

Type: 3RW4036-1BB04

Motor power at 230V / 400V: 22 kW

Dim: (W x H x D) 55 x 160 x 170 mm

Connection: Screw terminal

Width: 55 mm

Height: 160 mm

Depth: 170 mm

Max. temperature: +60 °C

Min. temperature: -25 °C

Weight: 1.30

: Single direction

: 24-24 V

: 24-24 V

: 24-24 V

: IP00

: Other

: 45 A

: 11 kW

: 22 kW

: 40 °C

: TRUE

: AC/DC

UKCA: yes
