Name: Siemens 3RW4036-2BB15 3RW40362BB15 Soft starter Motor power at 400 V 22 kW 600 V Nominal current 45 A
Brand: Siemens
SKU: 1746945
Availability: BackOrder

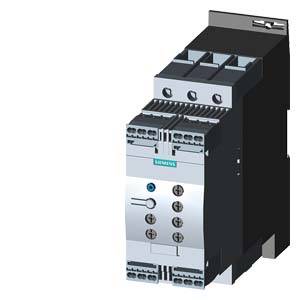

An electronic device for controlling electric motors, with multiple connection terminals and a switch on the front panel.

Refrigerator-sized control cabinet with an open glass door. Inside, neatly arranged electrical components and colourful cables are visible.

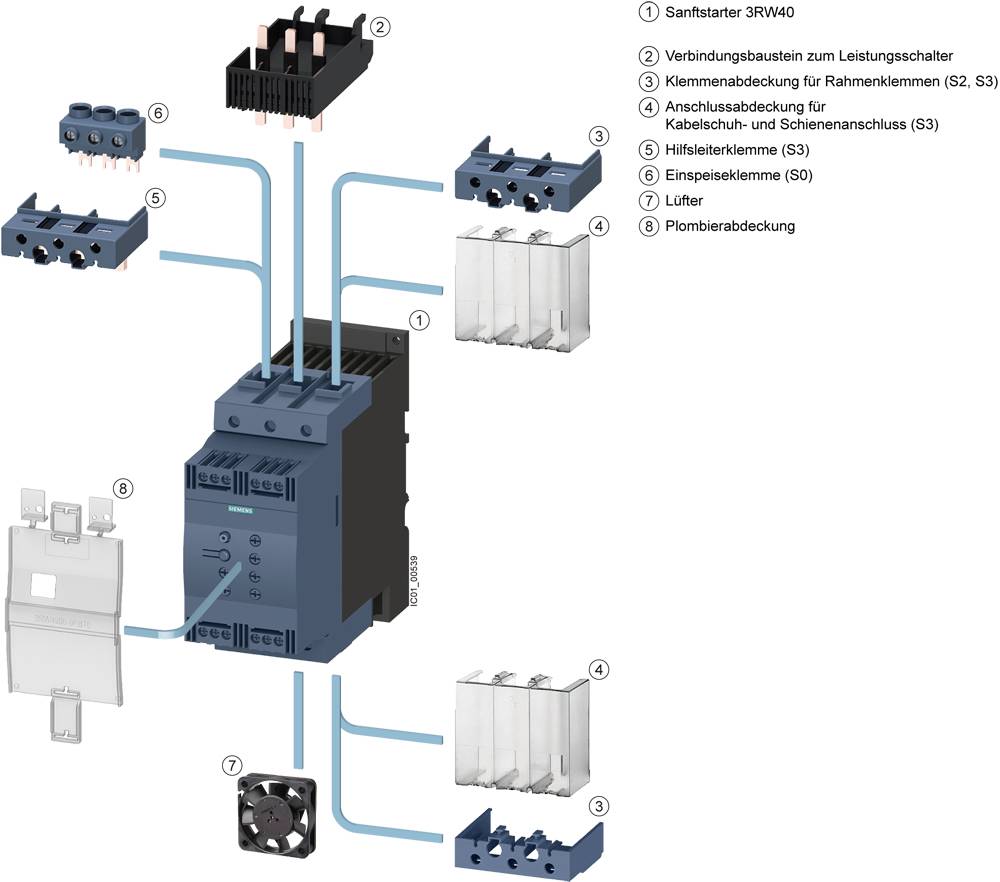

Exploded diagram of a 3RW40 soft starter with numbered components: circuit breaker, compound blocks, terminals, fan.

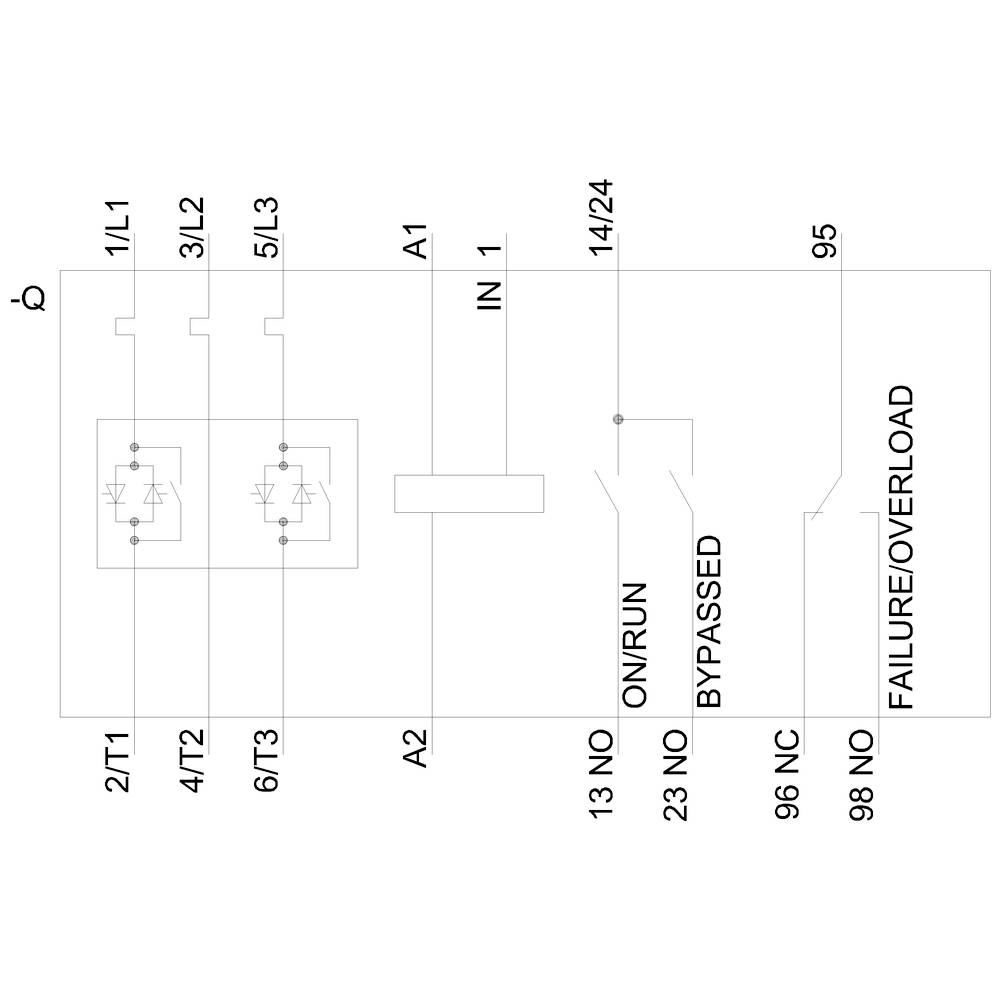

'Circuit diagram of an electric motor with terminals 1/L1, 3/L2, 5/L3 for inputs and 2/T1, 4/T2, 6/T3 for outputs; includes connections to control contacts ON/RUN and BYPASSED, as well as FAULT/OVERLOAD indicator.'

Technical drawings of an electrical component with front, side, and top views, including detailed dimensions and connection points.

1/5

Image similar

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Tue 10 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 1,065.00 / piece)

€ 1,065.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Protection class: IP00
Mounting type: screw and snap
Number of normally open contact: 2
Number of changer: 1
Size S2
Operating frequency: 50/60 Hz
Isolation voltage: 600 V

Motor voltage: 400 V

Product type: Soft starter

Supply current: 45 A

Motor power at 400 V: 22 kW

Nominal voltage: 600 V

Type: Screw connector

Manufacturer part #: 3RW40362BB15

Nominal current: 45 A

Nominal current - rounded value: 45 A

Type: 3RW4036-2BB15

Motor power at 230V / 400V: 22 kW

Dim: (W x H x D) 55 x 160 x 170 mm

Connection: Spring-loaded connector

Width: 55 mm

Height: 160 mm

Depth: 170 mm

Max. temperature: +60 °C

Min. temperature: -25 °C

: Single direction

: IP00

: Other

: 45 A

: 22 kW

: 40 °C

: TRUE

: AC/DC

UKCA: yes
