Name: Siemens 3RW4047-1BB14 3RW40471BB14 Soft starter Motor power at 400 V 55 kW 480 V Nominal current 106 A
Brand: Siemens
SKU: 1747676
Availability: InStock

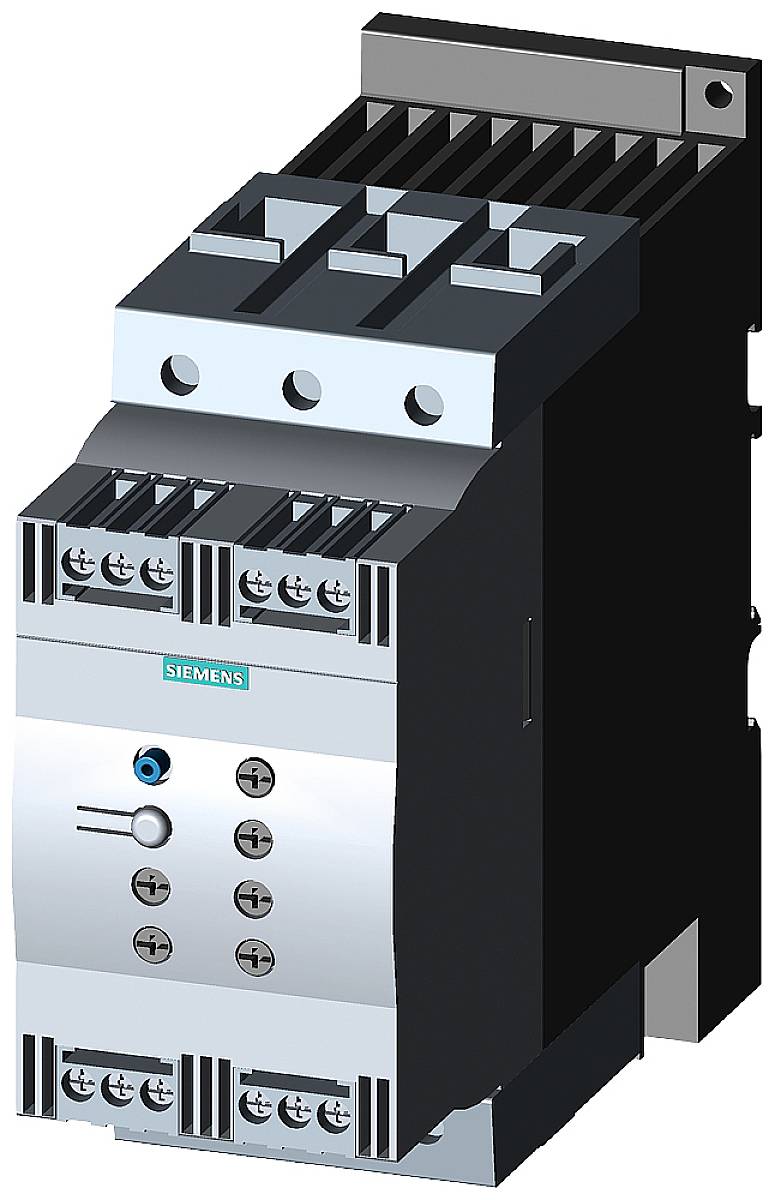

Siemens contactor with robust metal enclosure and multiple screw terminals, suitable for controlling electrical circuits.

An open electrical cabinet with various electrical components and wiring used for controlling electrical systems.

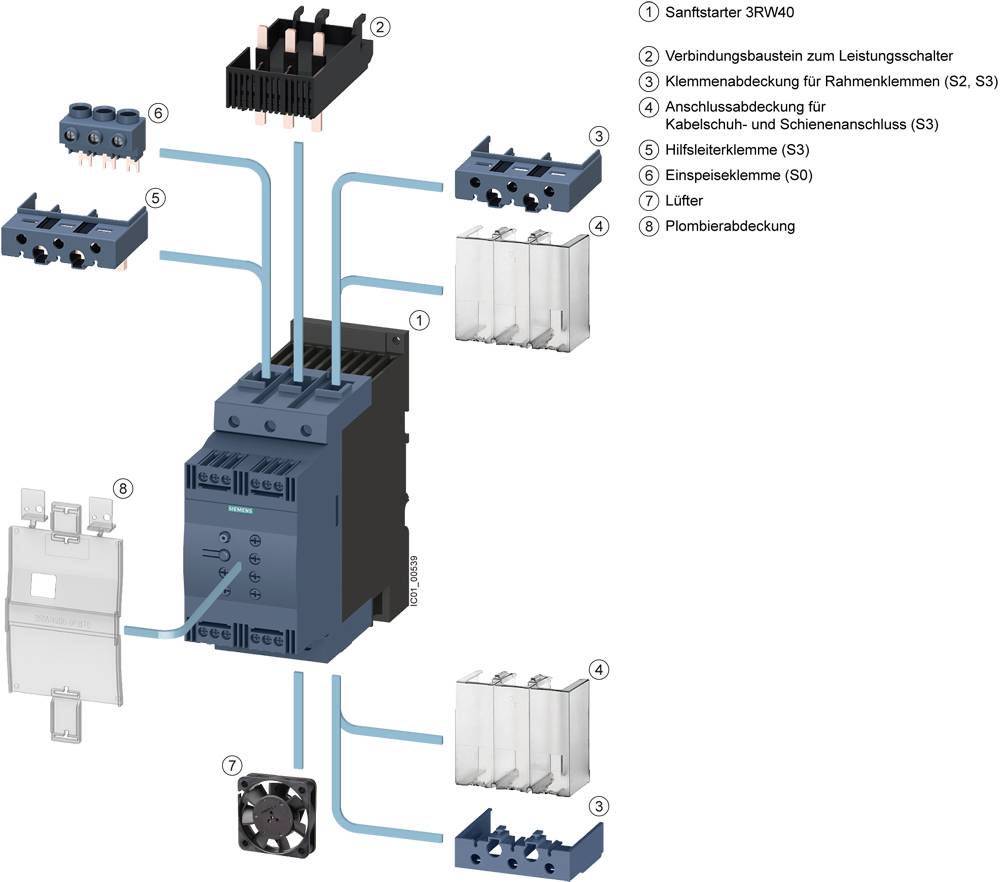

'Circuit Diagram of a Soft Starter 3RW40' with numbered components: 1) Power switch, 2) Connecting component, 3) Terminal cover, 4) Connection cover, 5) Sheath sterile terminal, 6) Feed-in terminal, 7) Fan, 8) Sealing cover.

'Circuit diagram of an electric motor with protective circuitry.'

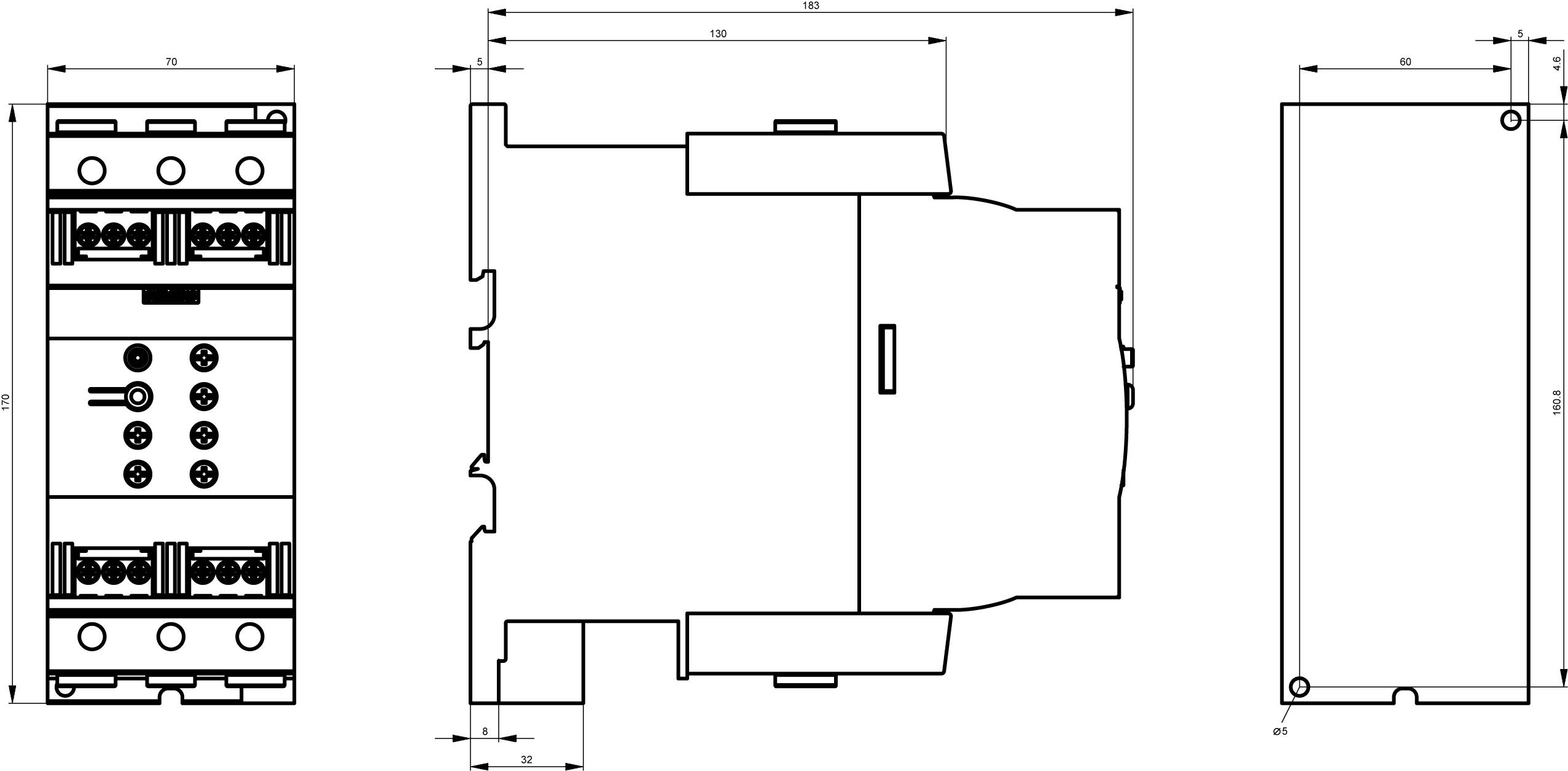

Technical drawing of an electrical device, front, side, and top view, with dimensions shown in millimetres.

1/5

Image similar

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Fri 6 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 1,575.00 / piece)

€ 1,575.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Protection class: IP00
Mounting type: screw and snap
Number of normally open contact: 2
Number of changer: 1
Size S3
Operating frequency: 50/60 Hz
Isolation voltage: 600 V

Motor voltage: 400 V

Product type: Soft starter

Supply current: 106 A

Motor power at 400 V: 55 kW

Nominal voltage: 480 V

Type: Screw connector

Manufacturer part #: 3RW40471BB14

Nominal current: 106 A

Nominal current - rounded value: 106 A

Type: 3RW4047-1BB14

Motor power at 230V / 400V: 55 kW

Dim: (W x H x D) 70 x 170 x 190 mm

Connection: Screw terminal

Width: 70 mm

Height: 170 mm

Depth: 190 mm

Max. temperature: +60 °C

Min. temperature: -25 °C

: Single direction

: 110-230 V

: 110-230 V

: 110-230 V

: IP00

: Other

: 106 A

: 30 kW

: 55 kW

: 40 °C

: TRUE

: AC/DC

UKCA: yes
