Name: Siemens 3SU10022BC500AA0 3SU1002-2BC50-0AA0 Knob-head switch illuminable Toggle Blue 1 x 45 ° 1 pc(s)
Brand: Siemens
SKU: 1701794
Availability: InStock

Black plastic component with blue and grey lever, presumably a switch handle in perspective view.

Cable car cabin at a mountain station with a control panel in the foreground. An orange cabin is ready for departure. Mountain landscape in the background.

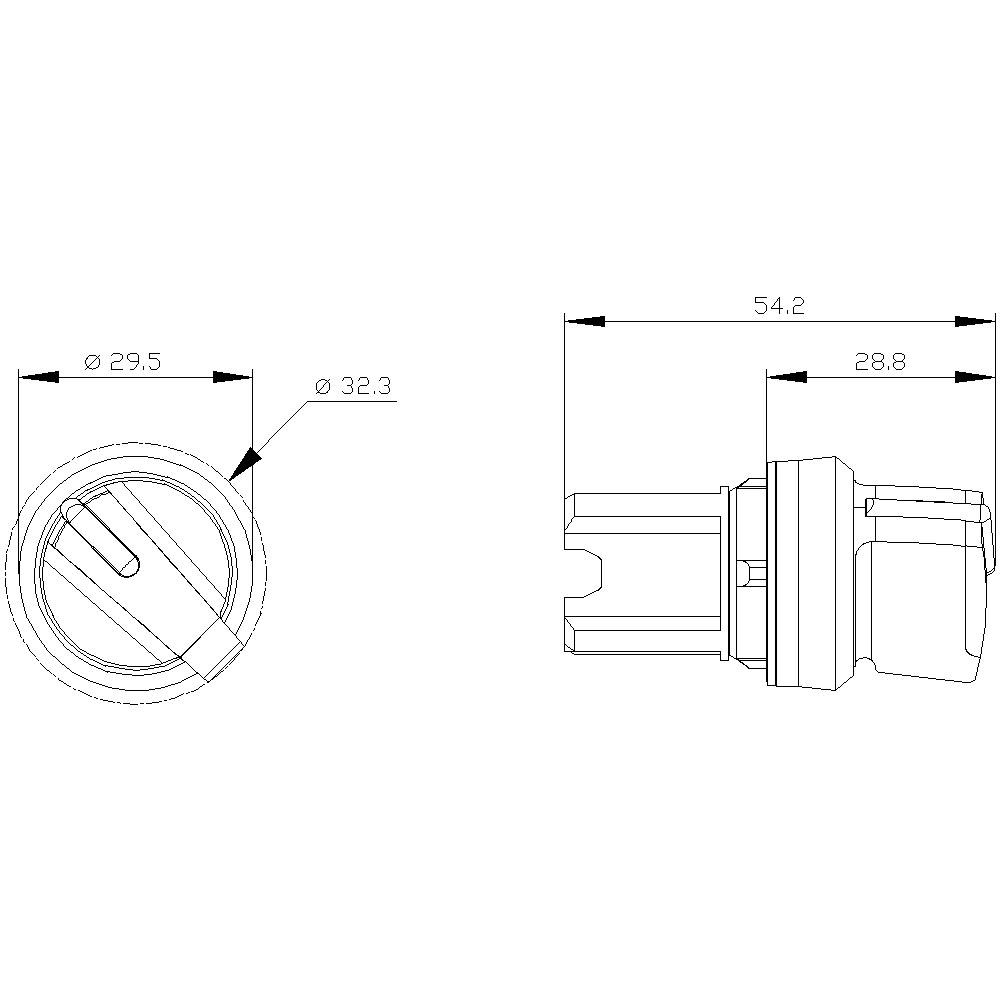

Technical drawing of a cylindrical component with dimensions: diameter 29.5 mm, 32.3 mm; length 54.2 mm, width 28.8 mm.

1/3

Image similar

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Thu 5 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 19.99 / piece)

€ 19.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Product type: Knob-head switch

Switch/button features: illuminable

Lighting type: incl. lighting

Operation type: Toggle

Factory colour: Blue

Case colour: Blue

Shape: Knob

Functions: momentary/latch

Durability: 1000000

Recess diameter: 22.3 mm

Type: Actuation/signaling element

: IP66
IP67
IP69/IP69K

Min. temperature: -25 °C

Max. temperature: +70 °C

Switching angle: 1 x 45 °

Width: 32.3 mm

Height: 28.8 mm

(Ø): 32.3 mm

Content: 1 pc(s)

Dim: (Ø x H) 32.3 mm x 28.8 mm

RoHS-compliant: Yes

Depth: 25.4 mm

Type: 3SU1002-2BC50-0AA0

: 22.3 mm

: 2

: TRUE

: TRUE

: Black

: IP67/IP69K

: 32.3 mm

: 28.8 mm

: Plastic

: TRUE

: Rectangular

: Toggle

: Blue

: Blue

: FALSE

UKCA: yes
