Name: Siemens 3UF73201AU000 3UF7320-1AU00-0 PLC add-on module
Brand: Siemens
SKU: 1740727
Availability: BackOrder

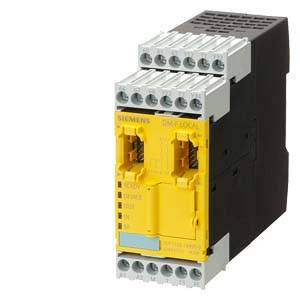

A Siemens safety switching device with a yellow control panel, used for emergency stop switching in industrial applications.

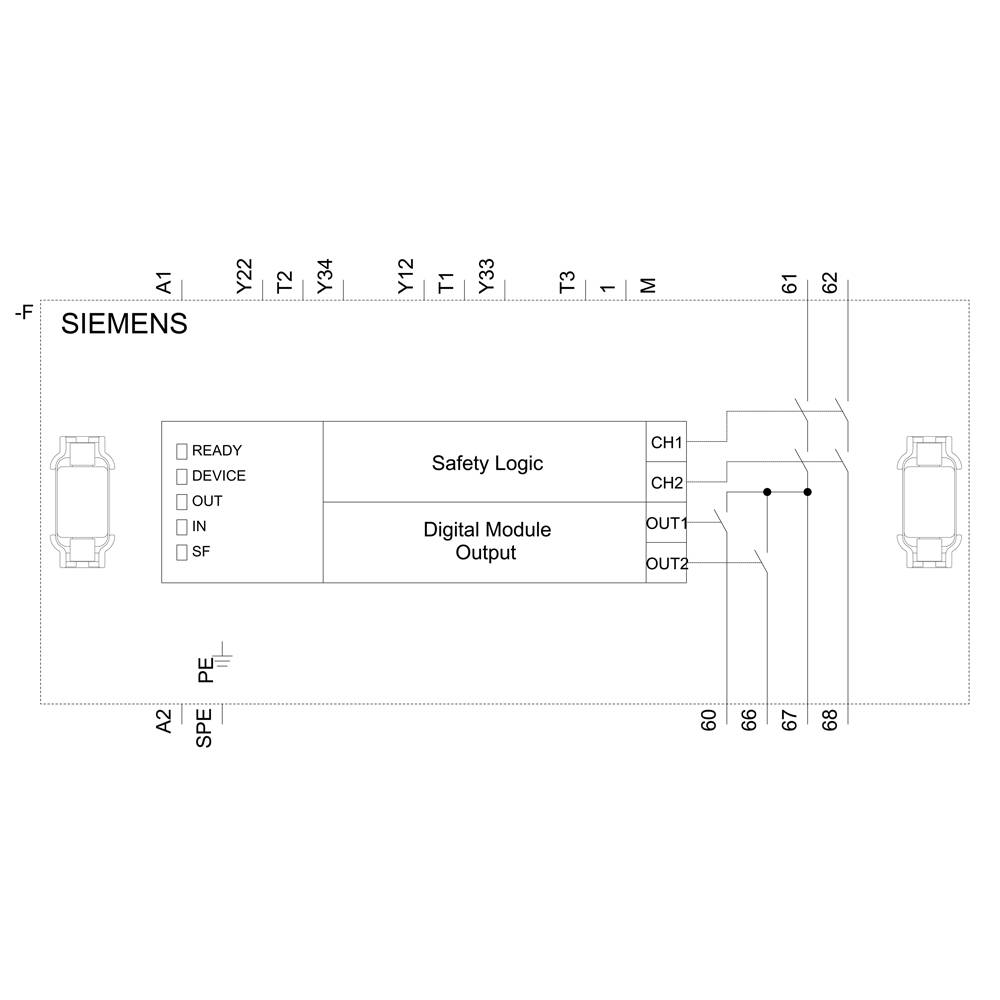

'Siemens Safety Logic Module', shows wiring diagram. Contains 'Safety Logic' and 'Digital Module Output' with connections to CH1 and CH2.

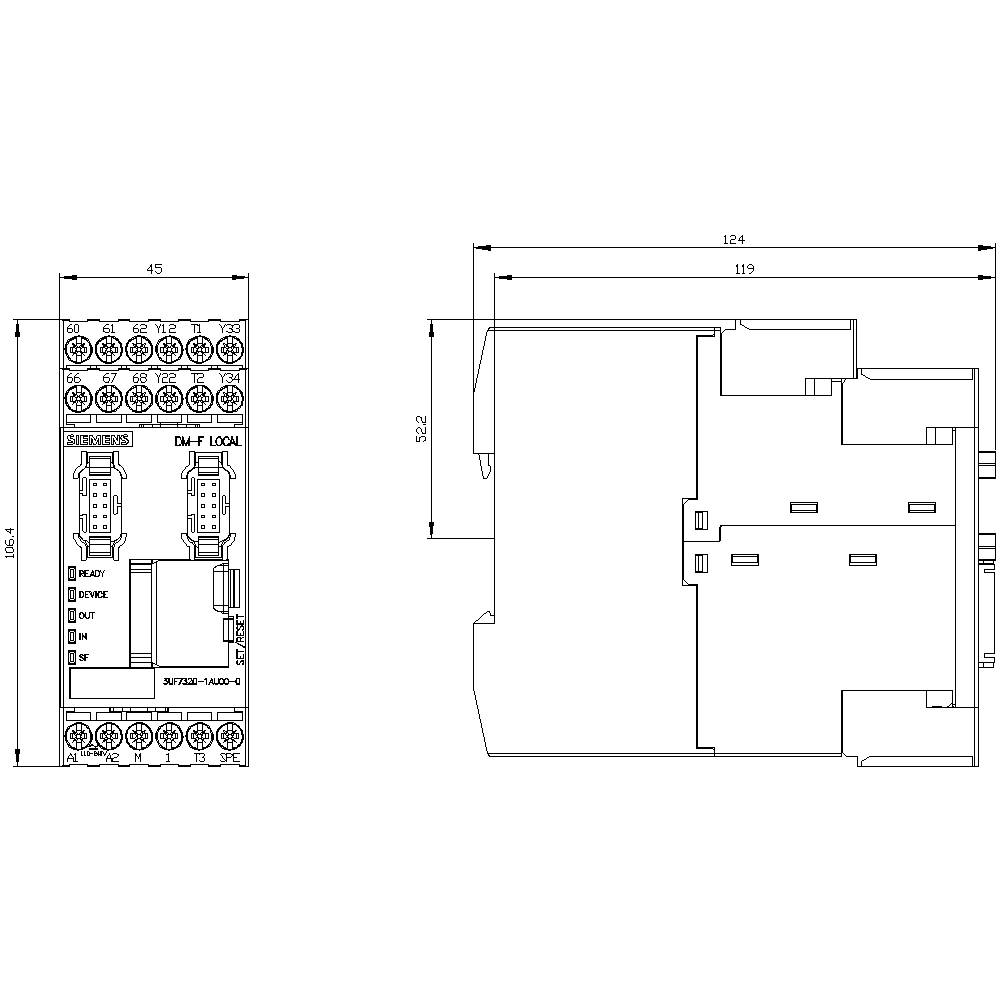

Technical drawing of an electrical device with dimensions: 45 x 162 x 124 mm. Shows connections and switch positions.

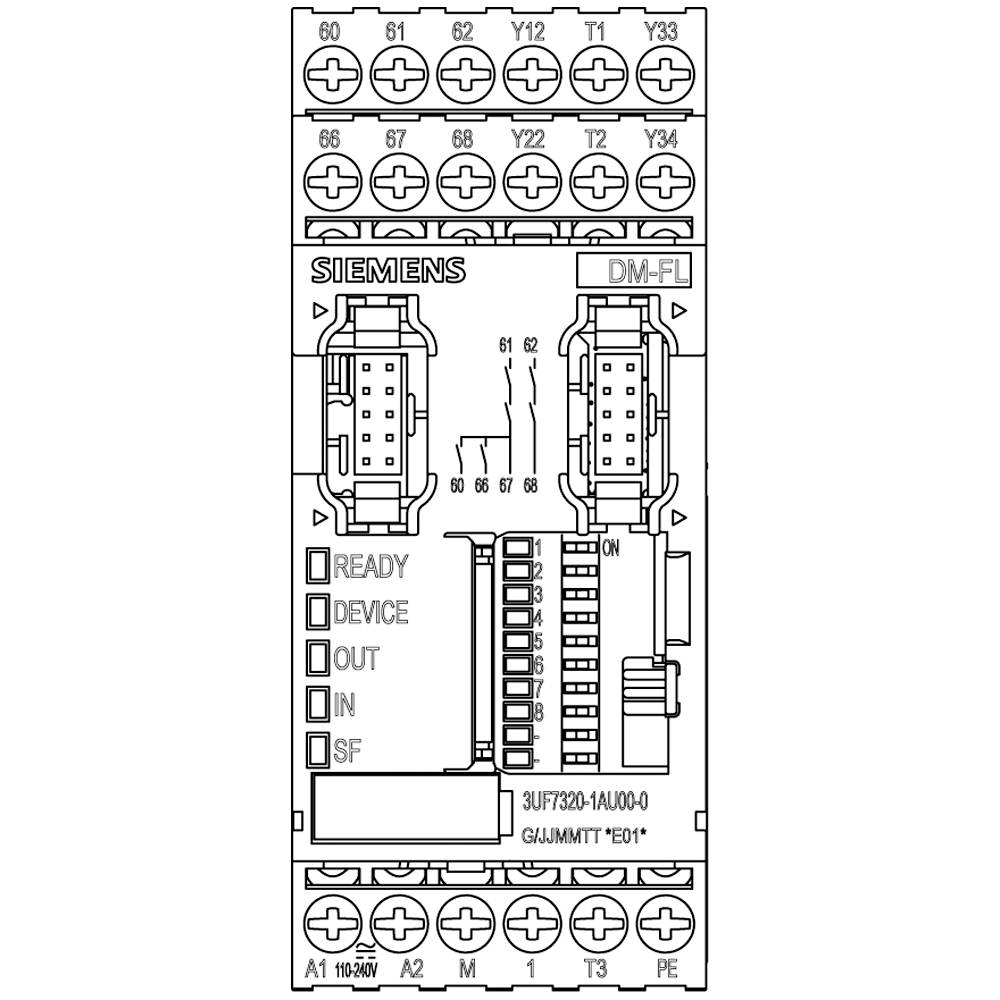

A digital switchgear device from Siemens with connection terminals and LED indicators for states such as 'ready', 'device', 'output', and 'fault'.

1/4

Image similar

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Mon 16 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 479.00 / piece)

€ 479.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Isolation voltage: 300 V
Mechanical life: 1000 0000
Electrical life: 100000
Design of the Electrical Connection: screw terminals.
Control supply voltage: 110V/DC 240 V/DC
Thermal current 5 A
Control supply voltage frequency: 50/60 Hz
Surge voltage resistance: 4000 V
Type of connectable conductor cross-section single-wire: 1 x (0.5 mm² - 4 mm²), 2x (0.5 mm² - 2.5 mm²)

Product type: PLC add-on module

Type: 3UF7320-1AU00-0

Manufacturer part #: 3UF73201AU000

Type: Digital module

No. of digital inputs (max.): 4

No. of inputs (max.): 5

No. of outputs (max.): 2

No. of relay outputs (max.): 2

Height: 106 mm

Length: 124 mm

Width: 45 mm

: IP20

Series: ET 200

Dim: (L x W x H) 124 x 45 x 106 mm

Content: 1 pc(s)

Fitting type (details): Screw and snap

Max. ambient temperature: +60 °C

Min. ambient temperature: -25 °C

: Digital module

: Mono stable

: 0

: 0

: 0

: 0

: 110-240 V

: 110-240 V

: 110-240 V

: IP20

: 0

: 2

: Screw connection

: FALSE

: FALSE

: FALSE

: AC/DC

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1740727 Siemens 3UF73201AU000 3UF7320-1AU00-0 PLC add-on module

User & Safety Instructions

User & Safety Instructions 1740727 Siemens 3UF73201AU000 3UF7320-1AU00-0 PLC add-on module

Description

circuit-breaker VL 400N standard breaking capacity Icu= 55kA, 415V AC 3-pole, plant protection electronic trip unit ETU10 LI In= 400A, rated current ir= 160...400A, overload protection, iI= 1.25 to 11 x In, short-circuit protection marine APproval for lrs, Dnv and gl without auxiliary release without auxiliary/alarm switch
