Name: Siemens 3UF76001AU010 3UF7600-1AU01-0 PLC add-on module
Brand: Siemens
SKU: 1740732
Availability: BackOrder

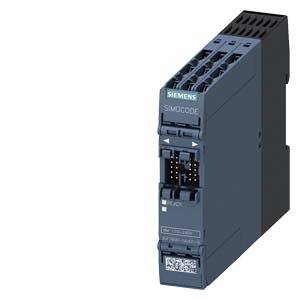

A blue Siemens SIMOCODE pro module, an intelligent motor control device, on a white background.

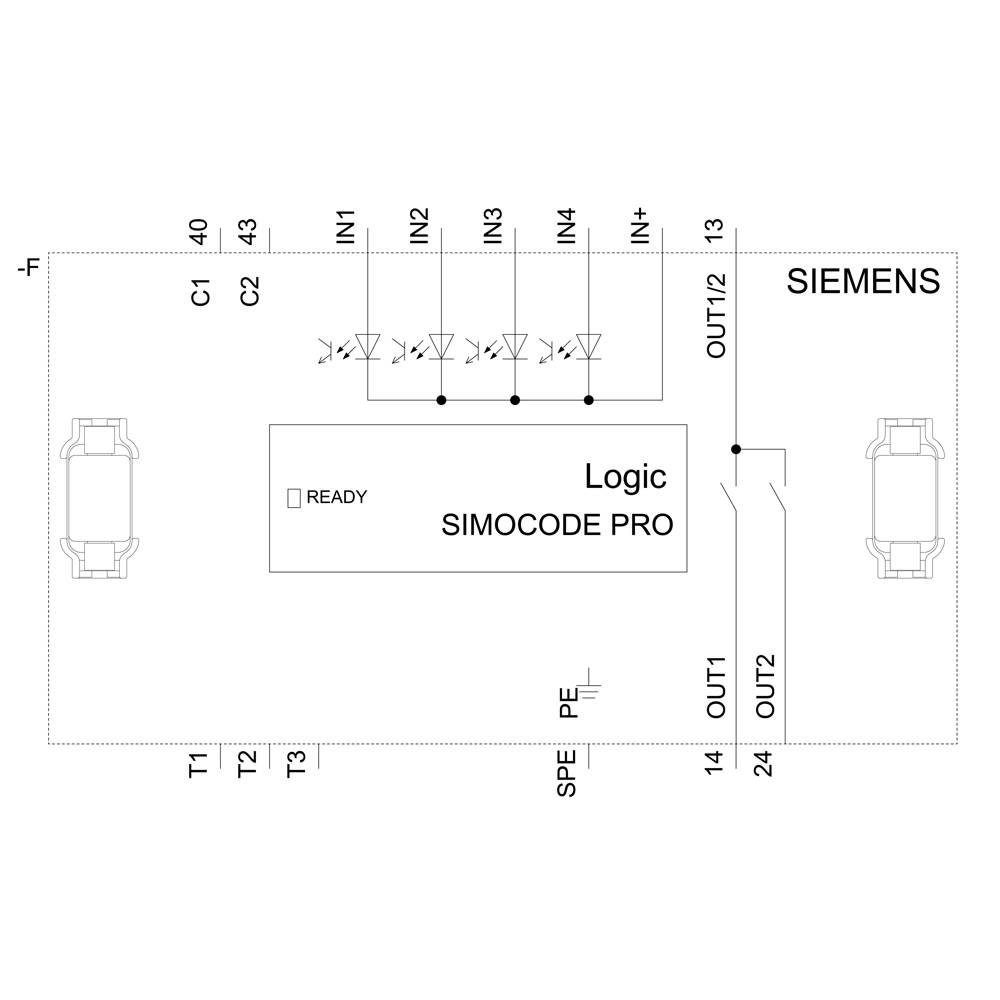

Circuit diagram of a SIMOCODE PRO from Siemens with logic unit and connections for inputs (IN1 to IN4), outputs (OUT1, OUT2) and transformers (T1 to T3).

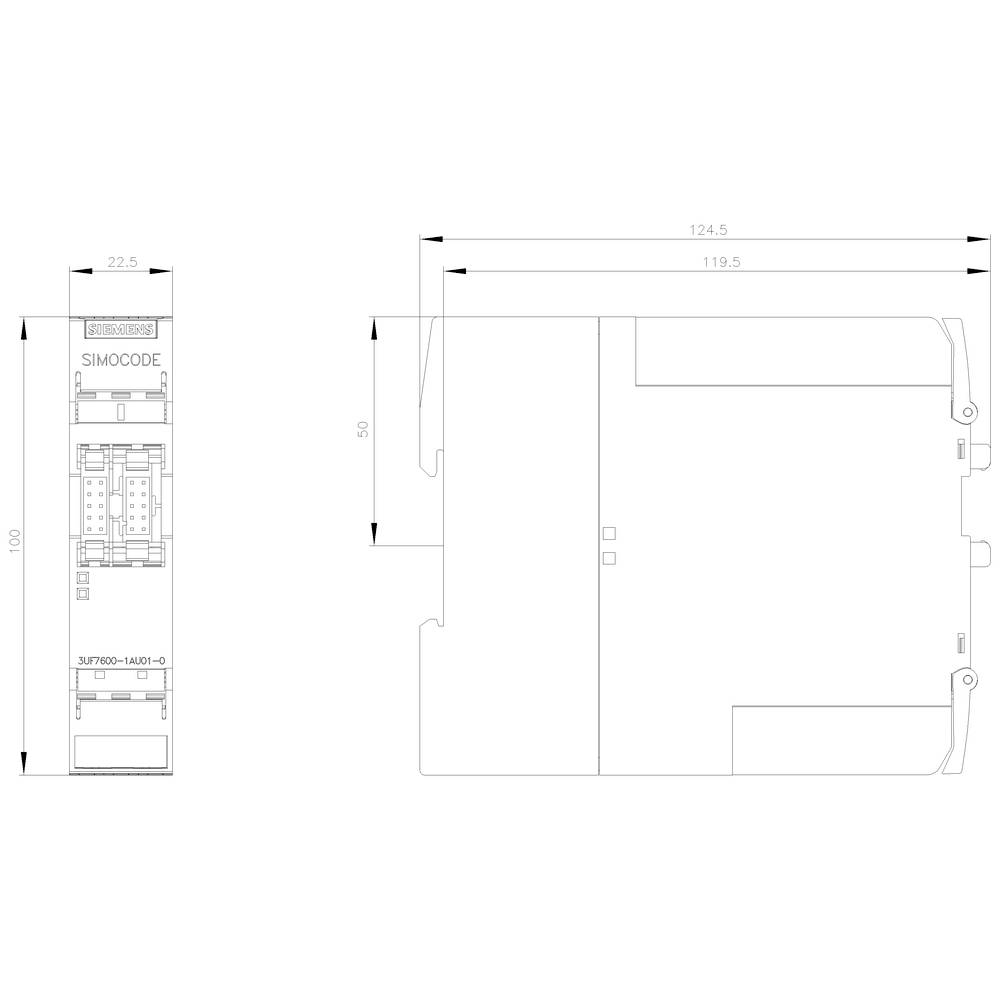

Dimensional drawing of an electrical device, front view on the left with labels 'SIMOCODE', '3UF7000-1AA10-0'. Dimensions in millimetres at the top.

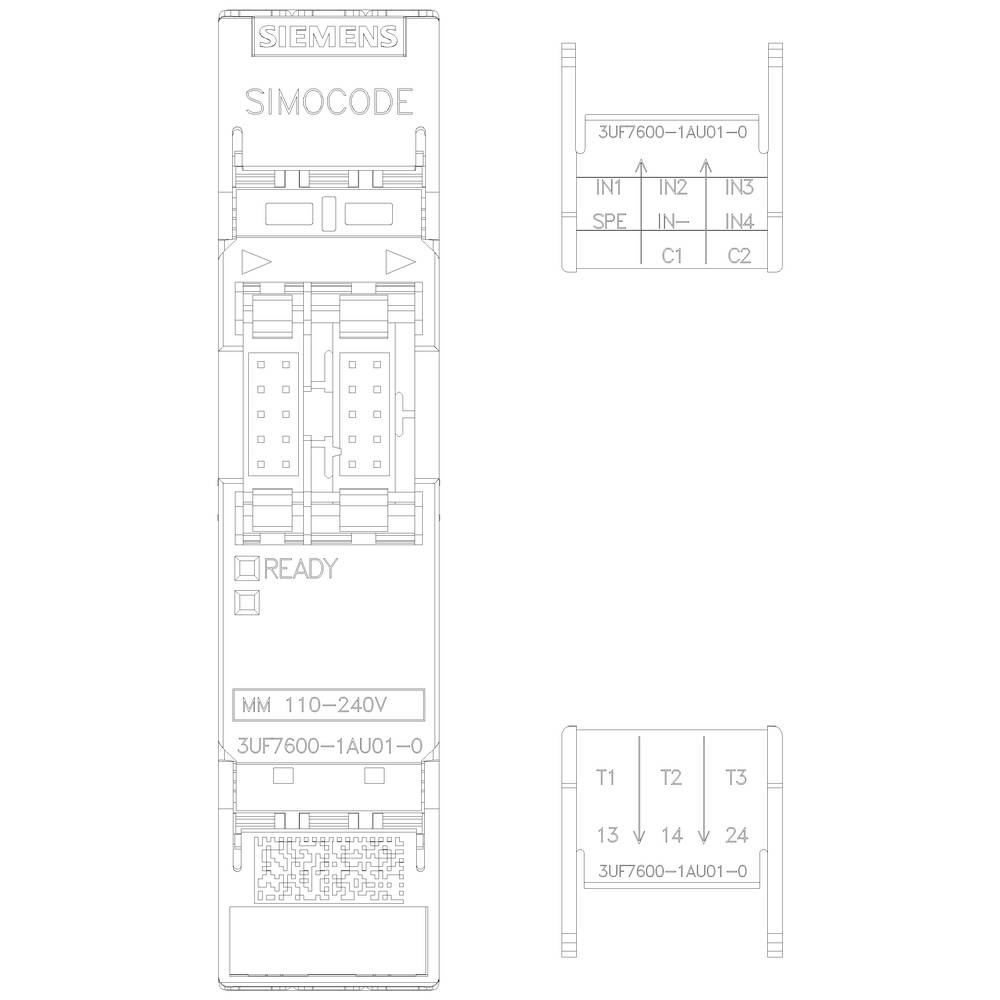

Circuit diagram of a Siemens SIMOCODE module with labels such as 'READY', 'MM 110-240V' and connections 'IN1', 'IN2', 'T1', 'T2', 'T3'.

1/4

Image similar

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Mon 16 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 309.00 / piece)

€ 309.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Electrical life: 100000
Mechanical life: 1000 0000
Design of the Electrical Connection: screw terminals.
Thermal current 6 A
Isolation voltage: 300 V

Product type: PLC add-on module

Type: 3UF7600-1AU01-0

Manufacturer part #: 3UF76001AU010

No. of digital inputs (max.): 4

No. of inputs (max.): 4

No. of outputs (max.): 2

No. of relay outputs (max.): 2

Height: 100 mm

Length: 124.5 mm

Width: 22.5 mm

: IP20

Series: ET 200

Dim: (L x W x H) 124.5 x 22.5 x 100 mm

Content: 1 pc(s)

Max. ambient temperature: +60 °C

Min. ambient temperature: -25 °C

: Other

: Mono stable

: 4

: 0

: 0

: 4

: IP20

: 0

: 2

: Screw connection

: TRUE

: TRUE

: FALSE

: AC/DC

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1740732 Siemens 3UF76001AU010 3UF7600-1AU01-0 PLC add-on module

User & Safety Instructions

User & Safety Instructions 1740732 Siemens 3UF76001AU010 3UF7600-1AU01-0 PLC add-on module

Description

circuit breaker 3VA2 IEC frame 100 breaking capacity class M Icu=55kA @ 415 V 3-pole, line protection ETU320, li, In=100A overload protection Ir=40A ...100A short circuit protection iI=1,5... 12 x In busbar connection Undervoltage release (UVR) 120-127 V AC 50/60 Hz
