Name: Siemens 3VA1150-4ED16-0AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 50 - 50 A Switching voltage (max.): 415
Brand: Siemens
SKU: 1539060
Availability: BackOrder

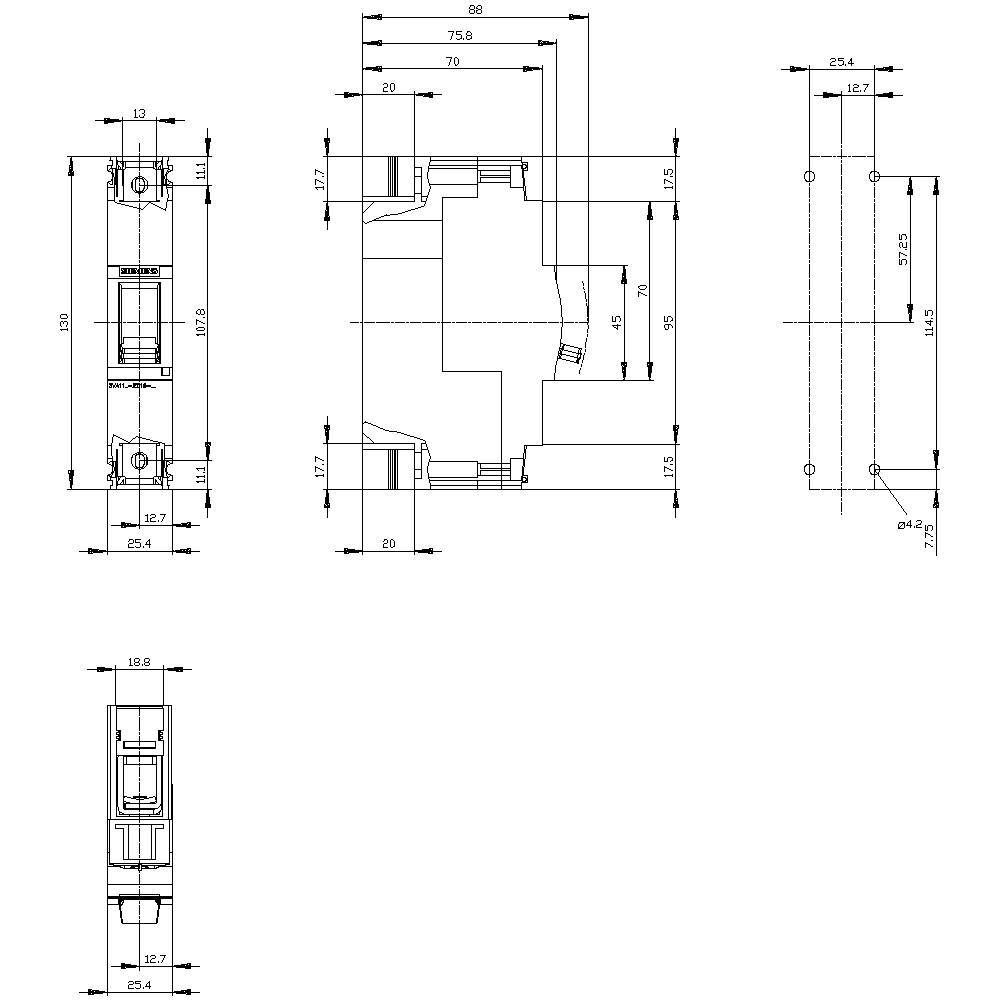

Technical drawing of an electrical component with dimensions in millimetres. Includes top, front, and side views.

Stroke drawing/circuit diagram

Product type

Circuit breaker

Amperage adjustment range (max.)

50 A

Connection

Clamp

Type

3VA1150-4ED16-0AA0

Amperage adjustment range (min.)

50 A

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Thu 12 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 174.99 / piece)

€ 174.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Design: System Protection
Mechanical life: 20000
Electrical life: 8000
Isolation voltage: 500 V
Mains frequency: 50/60 Hz.
Power loss: 4.9 W
Weight: 0.36 kg

Product type: Circuit breaker

Type: 3VA1150-4ED16-0AA0

Amperage adjustment range (min.): 50 A

Amperage adjustment range (max.): 50 A

Adjustment range (amperage): 50 - 50 A

No. of pins: 1-pin

Switching voltage (max.): 415 V AC

Mounting type: Fixed

Min. temperature: -25 °C

Max. temperature: +70 °C

Breaking capacity rating: S

OCR type: TM210

Connection: Clamp

: IP40

Depth: 70 mm

Width: 25.4 mm

Height: 130 mm

Dim: (W x H x D) 25.4 x 130 x 70 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: 0

: 0

: 50 A

: 1

: 0

: 4.87 W

: IP40

: Front side

: FALSE

: Frame clamp

: Rocker lever

: 6 kA

: TRUE

: FALSE

: FALSE

: Built-in device fixed built-in technique

: TRUE

: TRUE

UKCA: yes

Variants(All information include VAT, plus shipping costs)

Amperage adjustment range (max.)

Amperage adjustment range (min.)

Siemens 3VA1150-4ED16-0AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 50 - 50 A Switching voltage (max.): 415 V AC (W x H x D) 25.4 x 130 x 70 mm

Item no:1539060

Dispatches on Thu 12 Nov

Conrad Electronic

This article

50 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 174.99^*

Siemens 3VA1110-3ED16-0AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 100 - 100 A Switching voltage (max.): 415 V AC (W x H x D) 25.4 x 130 x 70 mm Piece

Item no:1539025

Dispatches on Thu 12 Nov

Conrad Electronic

100 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 204.99^*

Siemens 3VA1110-4ED16-0AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 100 - 100 A Switching voltage (max.): 415 V AC (W x H x D) 25.4 x 130 x 70 mm Piece

Item no:1539057

Dispatches on Thu 12 Nov

Conrad Electronic

100 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 204.99^*

Siemens 3VA1112-3ED16-0AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 125 - 125 A Switching voltage (max.): 415 V AC (W x H x D) 25.4 x 130 x 70 mm Piece

Item no:1539026

Dispatches on Thu 12 Nov

Conrad Electronic

125 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 299.00^*

Siemens 3VA1112-4ED16-0AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 125 - 125 A Switching voltage (max.): 415 V AC (W x H x D) 25.4 x 130 x 70 mm

Item no:1539014

Dispatches on Thu 12 Nov

Conrad Electronic

125 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 315.00^*

Siemens 3VA1116-3ED16-0AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 160 - 160 A Switching voltage (max.): 415 V AC (W x H x D) 25.4 x 130 x 70 mm Piece

Item no:1539027

Dispatches on Thu 12 Nov

Conrad Electronic

160 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 345.00^*

Siemens 3VA1116-4ED16-0AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 160 - 160 A Switching voltage (max.): 415 V AC (W x H x D) 25.4 x 130 x 70 mm Piece

Item no:1539015

Dispatches on Thu 12 Nov

Conrad Electronic

160 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 369.00^*

Siemens 3VA1120-3ED16-0AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 20 - 20 A Switching voltage (max.): 415 V AC (W x H x D) 25.4 x 130 x 70 mm Piece

Item no:1539029

Dispatches on Thu 12 Nov

Conrad Electronic

20 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 164.99^*

Siemens 3VA1120-4ED16-0AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 20 - 20 A Switching voltage (max.): 415 V AC (W x H x D) 25.4 x 130 x 70 mm

Item no:1539058

Dispatches on Thu 12 Nov

Conrad Electronic

20 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 174.99^*

Siemens 3VA1125-3ED16-0AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 25 - 25 A Switching voltage (max.): 415 V AC (W x H x D) 25.4 x 130 x 70 mm

Item no:1539030

Dispatches on Thu 12 Nov

Conrad Electronic

25 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 164.99^*

Documents & Downloads

Datasheet

Datasheet 1539060 Siemens 3VA1150-4ED16-0AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 50 - 50 A Switching voltage (max.): 415

User & Safety Instructions

User & Safety Instructions 1539060 Siemens 3VA1150-4ED16-0AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 50 - 50 A Switching voltage (max.): 415

Description

Circuit breaker 3VA1 IEC Frame 160 switching capacity class S ICU=36kA @ 240V 1-pin, system protection TM210, FTFM, in=50A Overload protection IR=50A permanently set Short-circuit protection II=10 x in terminal connection Compact circuit breaker 3VA1 for starter protection. The 3VA compact circuit breakers from Siemens are an important component of the SENTRON protective components for industrial applications as well as for applications in the infrastructure sector and offer effective plant, starter and motor protection through safe shutdown in the event of an overload or short-circuit. The 3VA compact circuit breakers set new standards in flexibility and a wide range of modular accessories. Uniform accessories for several sizes across all series of 3VA1 and 3VA2 compact circuit breakers. This version of the 3VA compact circuit breaker is characterized above all by: 1. Compact design. 2. Available as a starter protection variant for protecting electric motors against short-circuits. 3. Available in 3-pin design. 4. Depending on the size: Rated operating current of 32 A....200 A. 5. Switching capacity of 55 kA ... 70 kA at 415 V. 6. Mounting in fixed installation and plug-in technology possible. 7. The series has a thermal-magnetic overcurrent release 8. Modular and easy to install internal accessories with a wide range of functions. 9. Integrated accessory platform via all 3VA compact circuit breakers. Siemens offers a comprehensive portfolio of protection, switching, measuring and monitoring devices, distribution systems, switches and sockets for the safe, efficient electrical infrastructure in buildings and industry.

This text is machine translated.
