Name: Siemens 4NC5432-2DH21 4NC54322DH21 Single phase current transformer Primary current 1000 A Secondary current 5 A Line fe
Brand: Siemens
SKU: 1750149
Availability: InStock

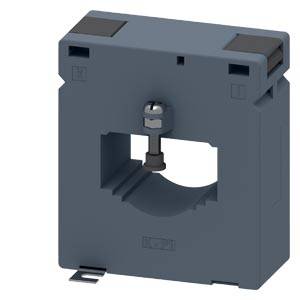

A rectangular, grey current transformer with a central aperture for cable routing, used in electrical circuits.

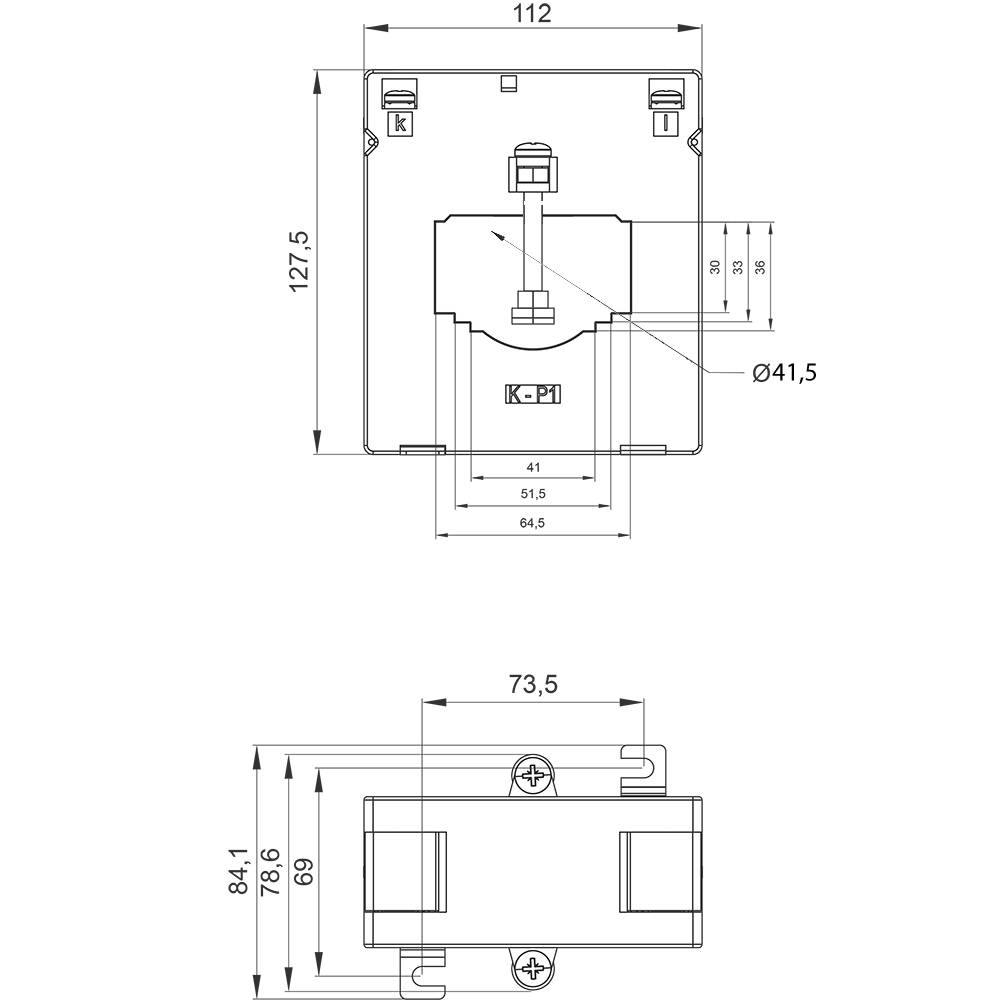

Technical drawing of an electrical switch with dimensions: 127.5 x 112 mm, with details of screw positions and connection measurements.

1/2

Image similar

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Thu 5 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 129.99 / piece)

€ 129.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

SIMATIC IPC427D (MICROBOX PC)

Input current (current) 1000 A
Output current 5 A
Line feed-through diameter 41 mm

Technical specifications

Protection class: IP20
Ambient temperature: -30 °C to +55 °C
Operating frequency: 50/60 Hz

Product type: Single phase current transformer

Fitting type: Screw-fit

Primary current: 1000 A

Secondary current: 5 A

: 10 VA

Line feed-through diameter: 41 mm

Accuracy class: 0.5

Type: 4NC5432-2DH21

Dim: (L x W x H) 77 x 112 x 127.5 mm

Weight: 1052 g

Output current: 5 A

Input current: 1000 A

Width: 112 mm

Height: 127.5 mm

Length: 77 mm

: Attachable current transformer

: 0.5

: 41 mm

: 1

: 1000 A

: 10 VA

: 5 A

: FS 10

: TRUE

UKCA: yes
