Name: Siemens 7KM3120-0BA01-1DA0 Digital rack-mount meter
Brand: Siemens
SKU: 2464215
Availability: BackOrder

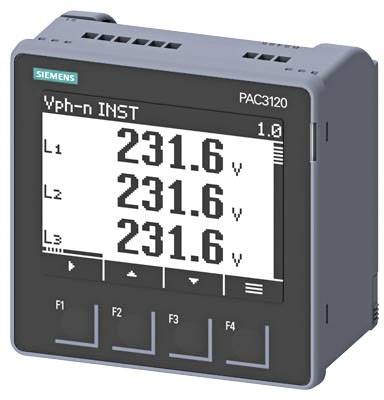

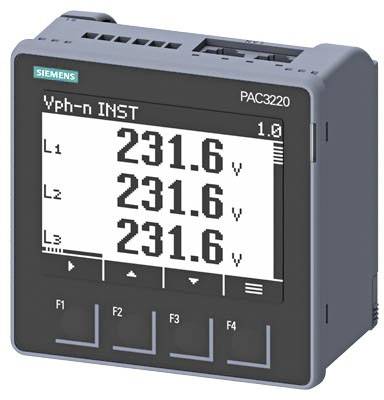

A Siemens PAC3120 voltage meter displays three phase values: L1 231.6V, L2 231.6V, L3 231.6V.

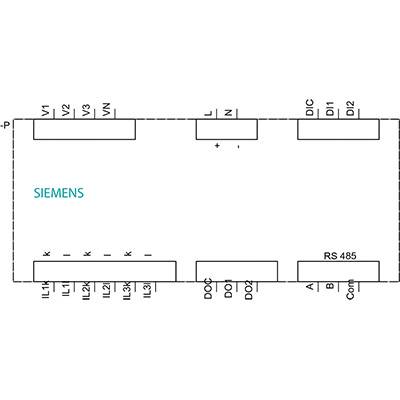

'Circuit diagram of a Siemens device with connections: V1, V2, V3, VN, L, N, DI1, DI2, IL1-IL3, K, DIC, DOC, DO1, DO2, RS 485.'

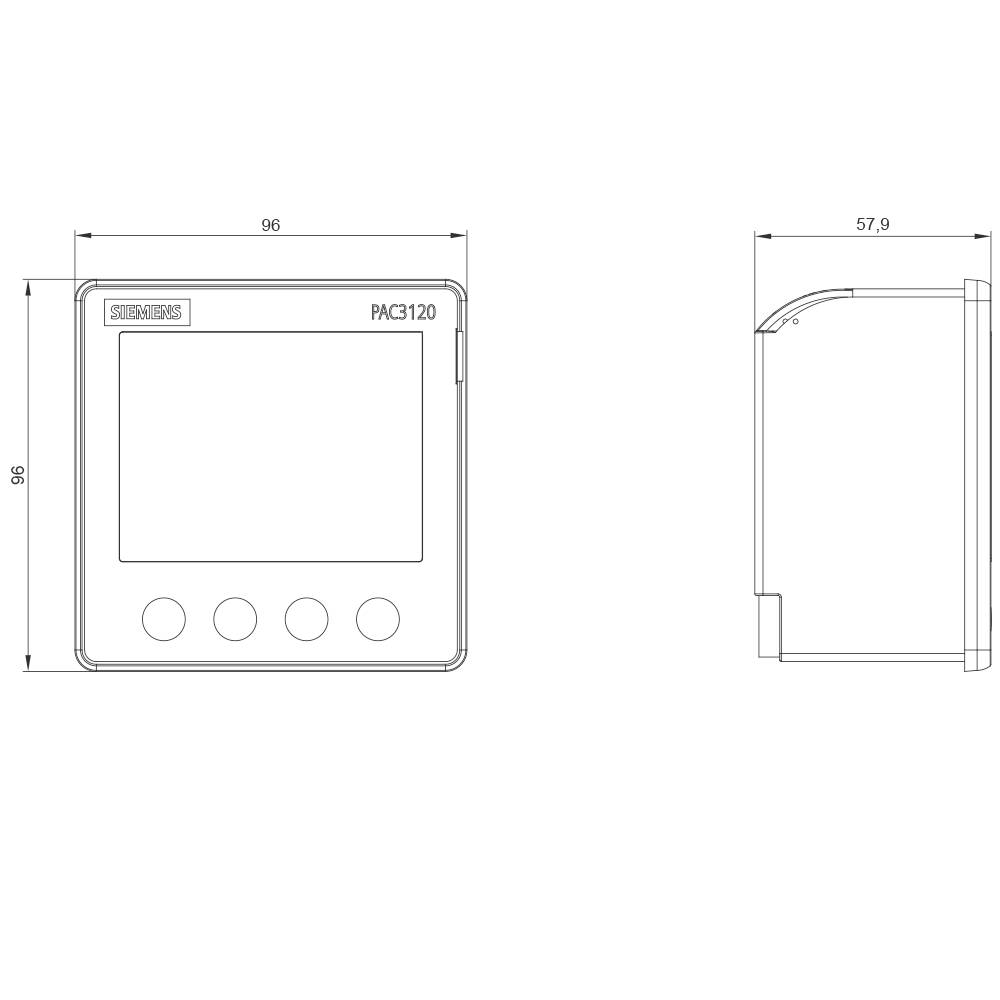

Technical drawing of a Siemens PAC3120 current measuring device, front and side view. Dimensions: 96mm width, 96mm height, 57.9mm depth.

1/3

Image similar

Datasheet (PDF)

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 355.00 / piece)

€ 355.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

3-phase; Accuracy class Active energy: Class 0.2S; Power frequency: 45/65 Hz; Local language / display / supported: De, en, fr, spa, ita, por, tur, rus, chi, pol

Product type: Digital rack-mount meter

Reading type: Power
Frequency
AC current
Voltage
Active energy
Amperage

Reading range (min.): 45 Hz

Type: 7KM3120-0BA01-1DA0

Reading range (max.): 5 A

Display technology: LCD

: IP65 (front)
IP20

Recess width: 92

Recess height: 92 mm

Dim: (W x H x D) 96 x 96 x 56 mm

Weight: 325 g

Max. operating voltage: 240 V AC
340 V DC

Min. operating voltage: 95 V AC
110 V DC

Display lighting: white

Factory colour: Black
White

Reading category: CAT III

Width: 96 mm

Height: 96 mm

Interfaces: Screw terminal

Depth: 56 mm

Connections: Screw terminals

Display (details): Point matrix, 130 x 100 pixels

Assembly dimensions: 92 mm x 92 mm

Power supply (details): 95 - 240 V/AC, 110 - 340 A V DC

Reading category: CAT III

Documents & Downloads

Datasheet

Datasheet 2464215 Siemens 7KM3120-0BA01-1DA0 Digital rack-mount meter

User & Safety Instructions

User & Safety Instructions 2464215 Siemens 7KM3120-0BA01-1DA0 Digital rack-mount meter

Description

The device measures the power values of electronic feeders or individual consumers in the low voltage-power distribution. It can be used for single and multiphase networks (TN, TT, IT) and provides important data for assessment of the system status and power quality. Can be in incorporated into next level automation and power management systems.
