Siemens Flasher module 8WD44200CD 8WD4420-0CD Xenon 1 pc(s)

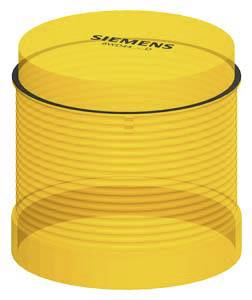

Yellow, cylindrical cover with grooves, likely serving as a protective casing or shield for a technical device, featuring the Siemens logo.
A yellow charging station with a display and charger in the foreground. In the background, a person is operating a machine.

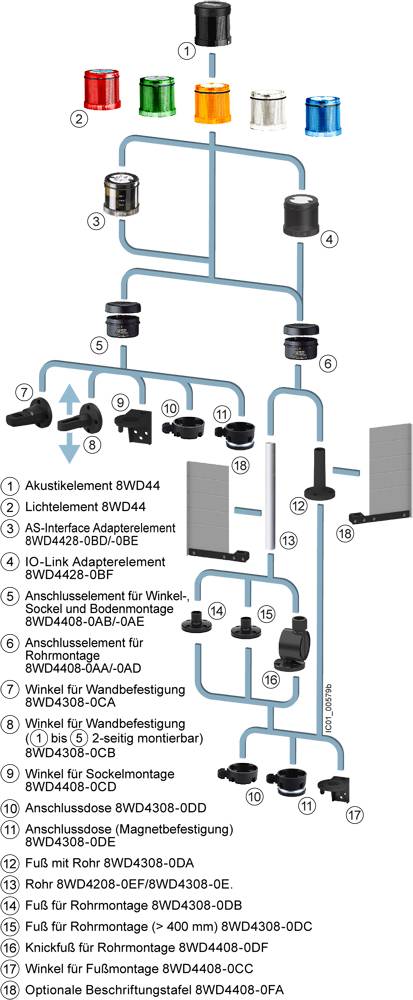

'Diagram of an industrial communication structure with various components such as acoustic and light elements, AS-Interface, connection sockets and mounting fixtures.'

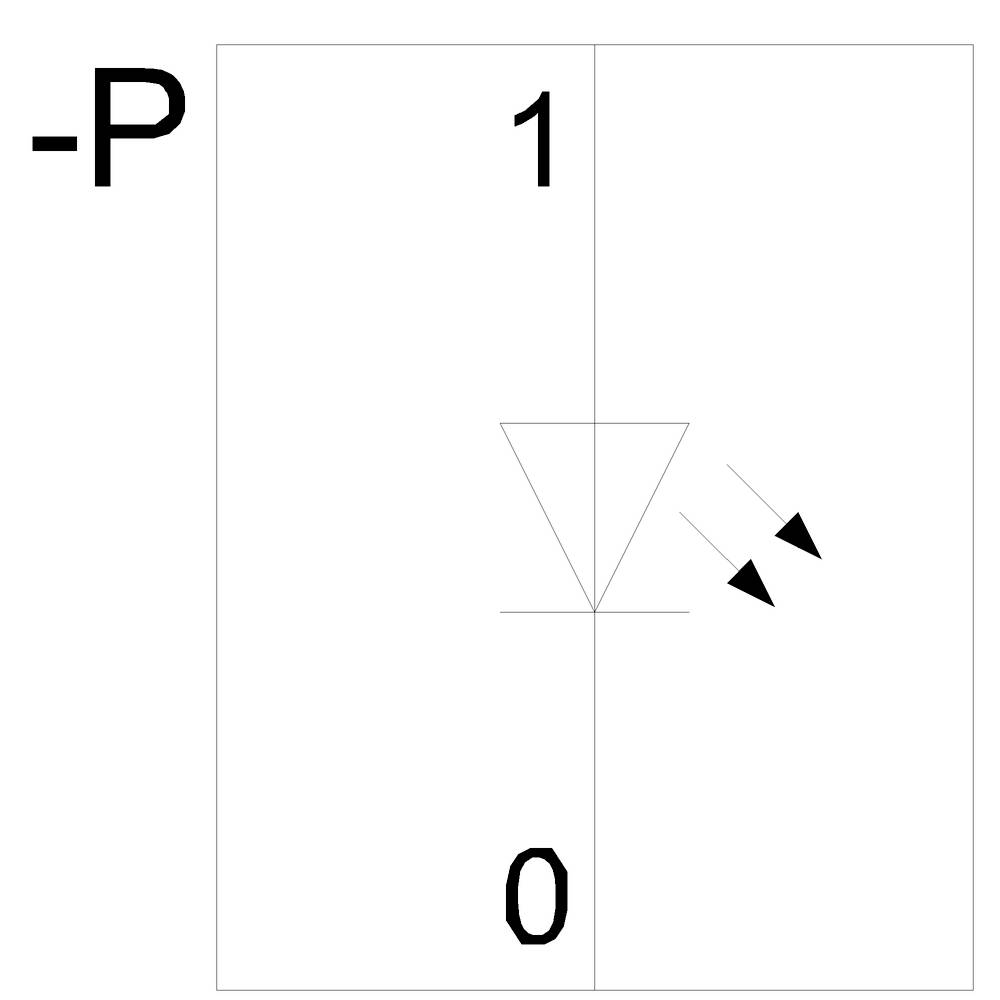

'Diagram of a diode: on the left with label -P, two arrows pointing towards the diode. A 1 top right, a 0 bottom right.'

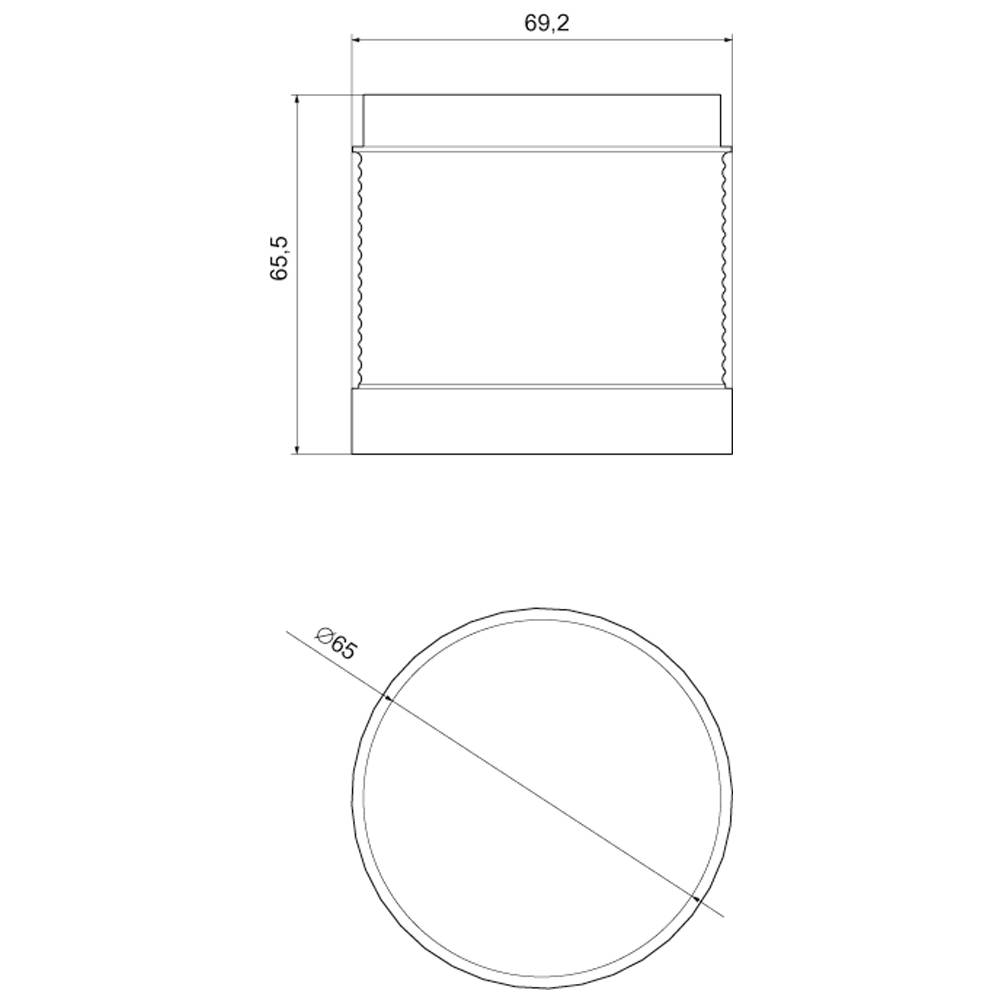

A technical diagram shows the front and top view of a cylindrical object with dimensions of 69.2 x 68.5 mm.
1/5
Image similar
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Thu 5 Nov
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 179.99 / piece)
€ 179.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

  • Design of the product: Including bulbs
  • Ambient temperature: -20 °C to +50 °C
  • Current consumption max. 125 mA
  • Type of bulb: Xenon gas discharge bulb
Product type

Flasher module

Operating voltage

24 V

Max. current consumption

125 mA

Factory colour

Yellow

Lighted picture

Flash

Signal type

Flash

(Ø)

70 mm

Height

65.5 mm

Features

Xenon

IP65

Dim

(Ø x H) 70 mm x 65.5 mm

Width

70 mm

Material

PC

Type

8WD4420-0CD

Light intensity

52304 cd

Weight

90 g

Type

Bayonet

Calotte colour

Yellow

Max. temperature

+50 °C

Min. temperature

-20 °C

Yellow

70 mm

Flash light

Other

DC

Xenon

IP65

Other

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 1706978 Siemens Flasher module 8WD44200CD 8WD4420-0CD Xenon 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1706978 Siemens Flasher module 8WD44200CD 8WD4420-0CD Xenon 1 pc(s)

Description

Continuous light element, with integrated LED, yellow, 24 V AC/DC, Diameter 70 mm
