Automation & PneumaticsAutomationSignal DevicesSignal Towers

Siemens Flasher module 8WD44200CF 8WD4420-0CF Xenon Blue 1 pc(s)

A blue cylinder with the black text 'Siemens' on top. The cylinder has horizontal lines and looks structured.
A yellow charging station with indicator lights; red, orange and green. In the background, a person is blurrily visible working on devices.

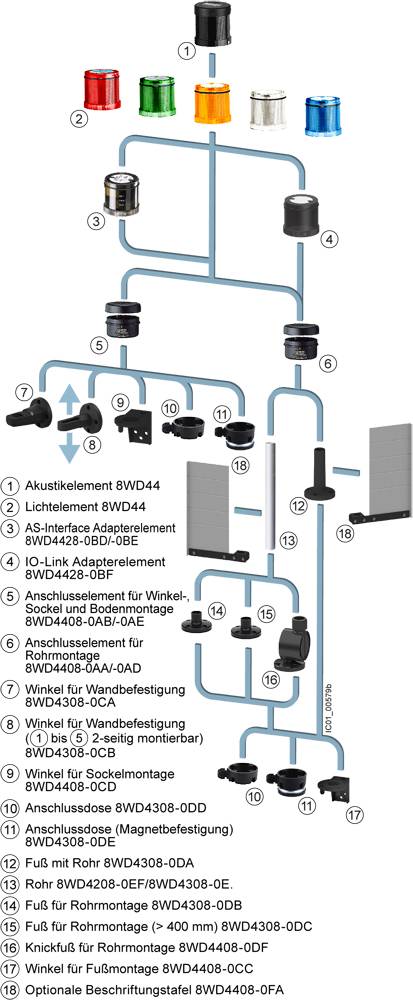

'Diagram of the automation system with connection and identification numbers of components from 1 to 17.'

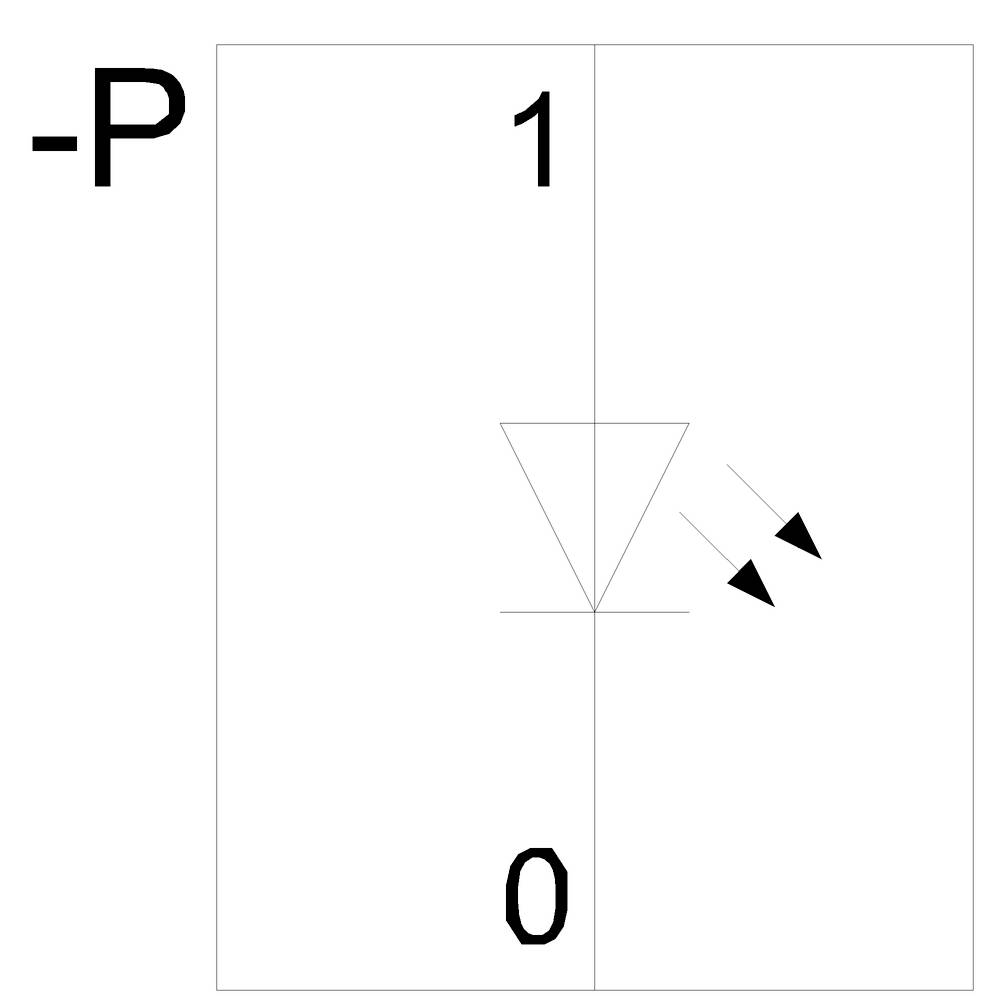

A rectangle shows two triangles pointing to the right, labelled '1' on the upper half and '0' on the lower half on the left side ('-P' top left).

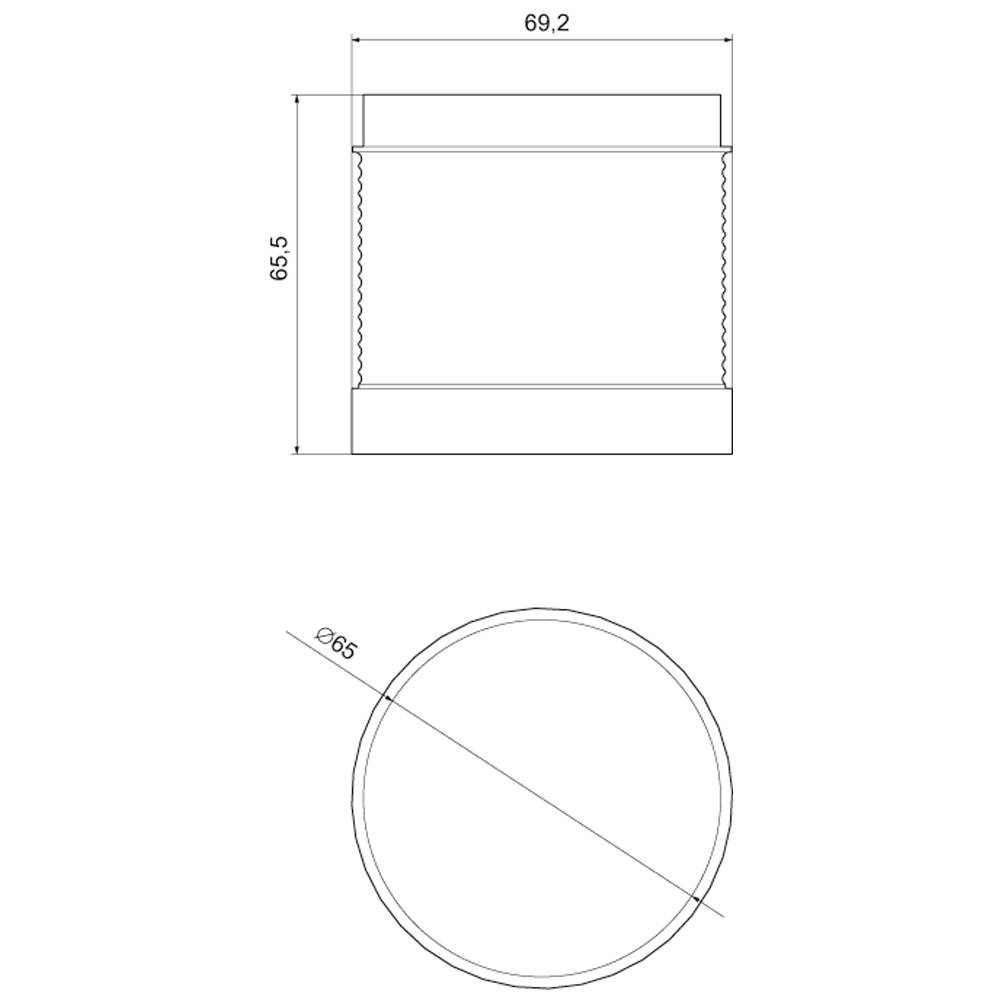

Technical drawing of a cylindrical object with dimensions: height 68.5 mm, top diameter 69.2 mm, base diameter 68.5 mm.
1/5
Image similar
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Thu 5 Nov
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 179.99 / piece)
€ 179.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

  • Design of the product: Including bulbs
  • Ambient temperature: -20 °C to +50 °C
  • Current consumption max. 125 mA
  • Type of bulb: Xenon gas discharge bulb
Product type

Flasher module

Operating voltage

24 V

Max. current consumption

125 mA

Factory colour

Blue

Lighted picture

Flash

Signal type

Flash

(Ø)

70 mm

Height

65.5 mm

Features

Xenon

IP65

Dim

(Ø x H) 70 mm x 65.5 mm

Width

70 mm

Colour

Blue

Material

PC

Type

8WD4420-0CF

Light intensity

44261 cd

Weight

91 g

Type

Bayonet

Max. temperature

+50 °C

Min. temperature

-20 °C

Blue

70 mm

Flash light

Blue

DC

Xenon

IP65

Other

UKCA

not relevant

Documents & Downloads

Datasheet

Datasheet 1706979 Siemens Flasher module 8WD44200CF 8WD4420-0CF Xenon Blue 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1706979 Siemens Flasher module 8WD44200CF 8WD4420-0CF Xenon Blue 1 pc(s)

Description

Continuous light element, with integrated LED, blue, 24 V AC/DC, Diameter 70 mm

Accessories

(*All information is plus legal VAT)

The necessary accessories are required to use the article as described.
