Name: Siemens SM 1223 6ES72231PL320XB0 PLC digital I/O module 28.8 V
Brand: Siemens
SKU: 197682
Availability: InStock

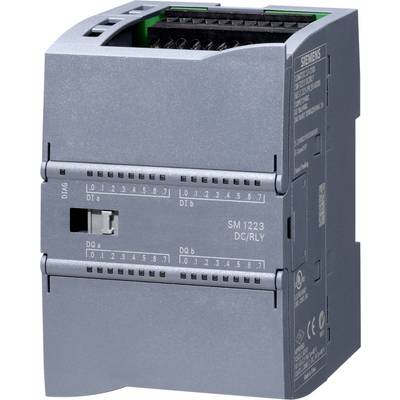

'Siemens SM 1223 DC/RLY' programmable logic controller module, grey plastic casing with labeled ports and a switch on the front.

Diagram of a relay output module labeled '2234-PD32-030' with terminal connections for DC inputs and relay outputs on both sides.

1/2

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

3 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 435.00 / piece)

€ 435.00

incl. VAT

Only 3 Piece(s) available

14-day return policy included

Report legal concerns

Technical specifications

SIMATIC S7-1200, digital I/O SM 1223, 16DI/16DO, 16 DI 24 V DC,
Sink / Source, 16 DO, relay 2A;
Weight: 350 g

Compatible with (details): Siemens SIMATIC S7-1200

Product type: PLC digital I/O module

Type: SM 1223

Manufacturer part #: 6ES72231PL320XB0

Type: 16 DI 24 V/DC, 16 outputs relay 2 A

No. of digital inputs (max.): 16

No. of inputs (max.): 16

No. of outputs (max.): 16

No. of relay outputs (max.): 16

Min. operating voltage: 20.4 V

Operating voltage: 20.4 - 28.8 V

Max. operating voltage: 28.8 V

Operating voltage: 28.8 V

Height: 100 mm

Length: 75 mm

Width: 70 mm

: IP20

Series: S7-1200

Dim: (L x W x H) 75 x 70 x 100 mm

Content: 1 pc(s)

Max. ambient temperature: +60 °C

Min. ambient temperature: -20 °C

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 197682 Siemens SM 1223 6ES72231PL320XB0 PLC digital I/O module 28.8 V

User & Safety Instructions

User & Safety Instructions 197682 Siemens SM 1223 6ES72231PL320XB0 PLC digital I/O module 28.8 V

Description

Digital inputs to complement the integrated peripherals of CPUs for the flexible adjustment of the controller to the task and the subsequent expansion of the system with additional inputs.

Description

Digital inputs to complement the integrated peripherals of CPUs for the flexible adjustment of the controller to the task and the subsequent expansion of the system with additional inputs.
