Signal Construct MWGB25549 LED bulb White BA9s 24 V DC/AC
EAN:
Part number:
Item no:
Product type
LED bulb
Operating voltage
24 V DC/AC
Base
BA9s
Connection
Jack connector
Factory colour
White
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 9.24
3
6% = € 0.53
€ 8.71
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 9.24 / piece)
€ 9.24
plus VAT.
Technical specifications
- Product type
LED bulb
- Factory colour
White
- Operating voltage
24 V DC/AC
BA9s
- Case colour
White
- Colour temperature
3000K
- Radiation angle
160°
- Connection
Jack connector
- Dim
(Ø x H) 10 mm x 25 mm
- Length
25 mm
- Width
9.6 mm
- Height
25 mm
- (Ø)
10 mm
100000
- Min. temperature
+70 °C
- Max. temperature
-30 °C
- RoHS-compliant
Yes
- Type (LEDs)
White
- Content
1 pc(s)
3000 K
- Colour temperature range
3000 K
- Moisture Sensitiviy Level (MSL)
1
Documents & Downloads
Datasheet
Datasheet 2435479 Signal Construct MWGB25549 LED bulb White BA9s 24 V DC/AC
User & Safety Instructions
User & Safety Instructions 2435479 Signal Construct MWGB25549 LED bulb White BA9s 24 V DC/AC
Description
This multi-look LED lamp as a 4-chip
Design clearly Leuchtkraft
Standard 3W bulbs. By the
Control of the chip LED both a
Magnification of the radiation angle as well as on

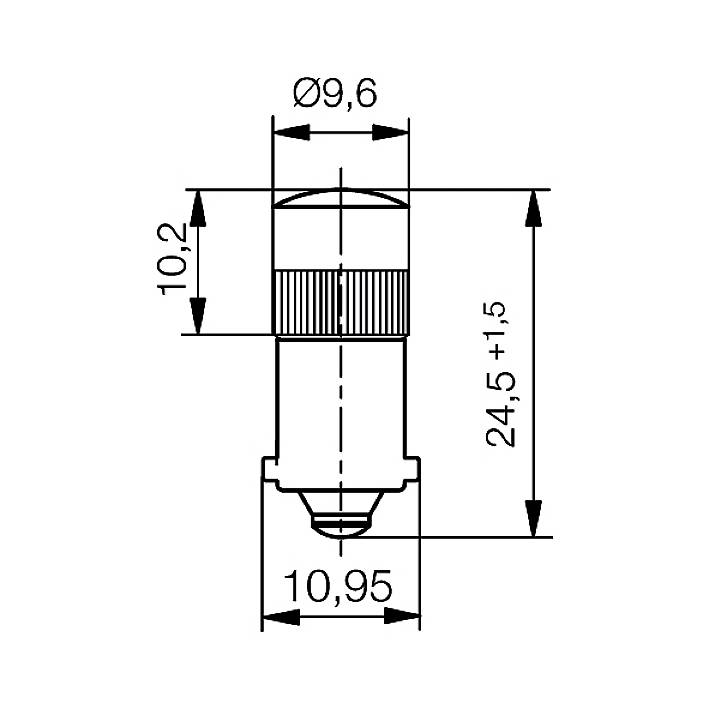

High mechanical protection achieved. Dimensions: Ø9,6 mm / length 25 mm
Socket: BA9s.
OPERATING VOLTAGE 6V,12V,24V,42V,60V +15% AC/DC
130V, 230V +10% AC/DC
IMPORTANT!
The 130V types must not be
Elements with integrated series resistor for
Operation of 130V lamps. For
These applications are exclusively used
Of our standard 230V types.
This text is machine translated.
Design clearly Leuchtkraft
Standard 3W bulbs. By the
Control of the chip LED both a
Magnification of the radiation angle as well as on
High mechanical protection achieved. Dimensions: Ø9,6 mm / length 25 mm
Socket: BA9s.
OPERATING VOLTAGE 6V,12V,24V,42V,60V +15% AC/DC
130V, 230V +10% AC/DC
IMPORTANT!
The 130V types must not be
Elements with integrated series resistor for
Operation of 130V lamps. For
These applications are exclusively used
Of our standard 230V types.
This text is machine translated.
