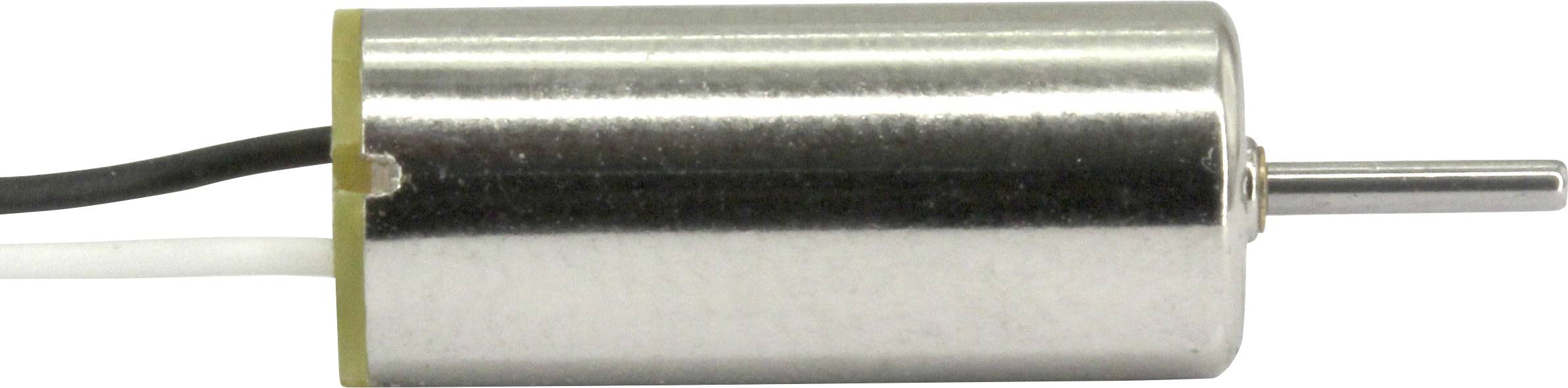

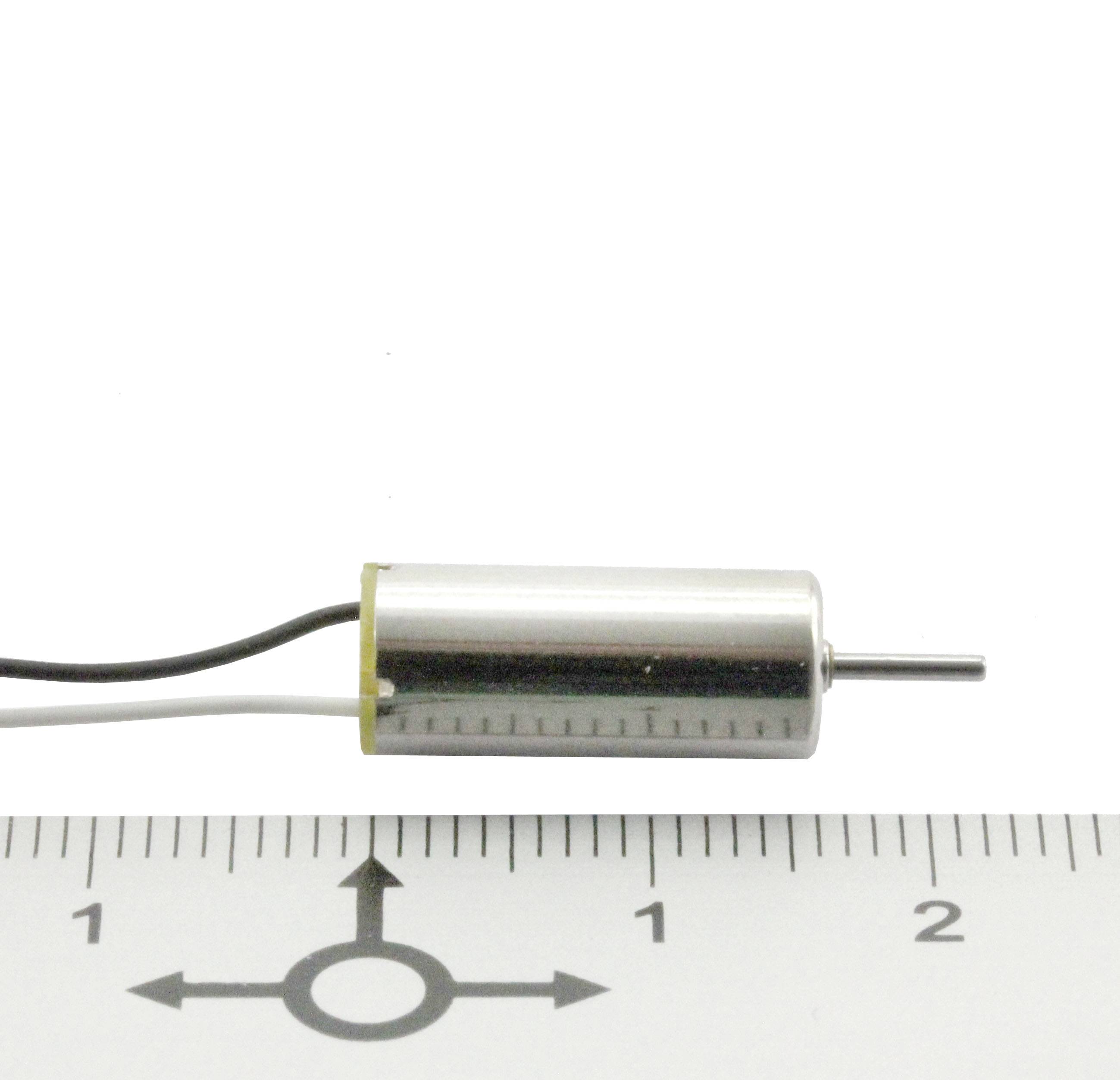

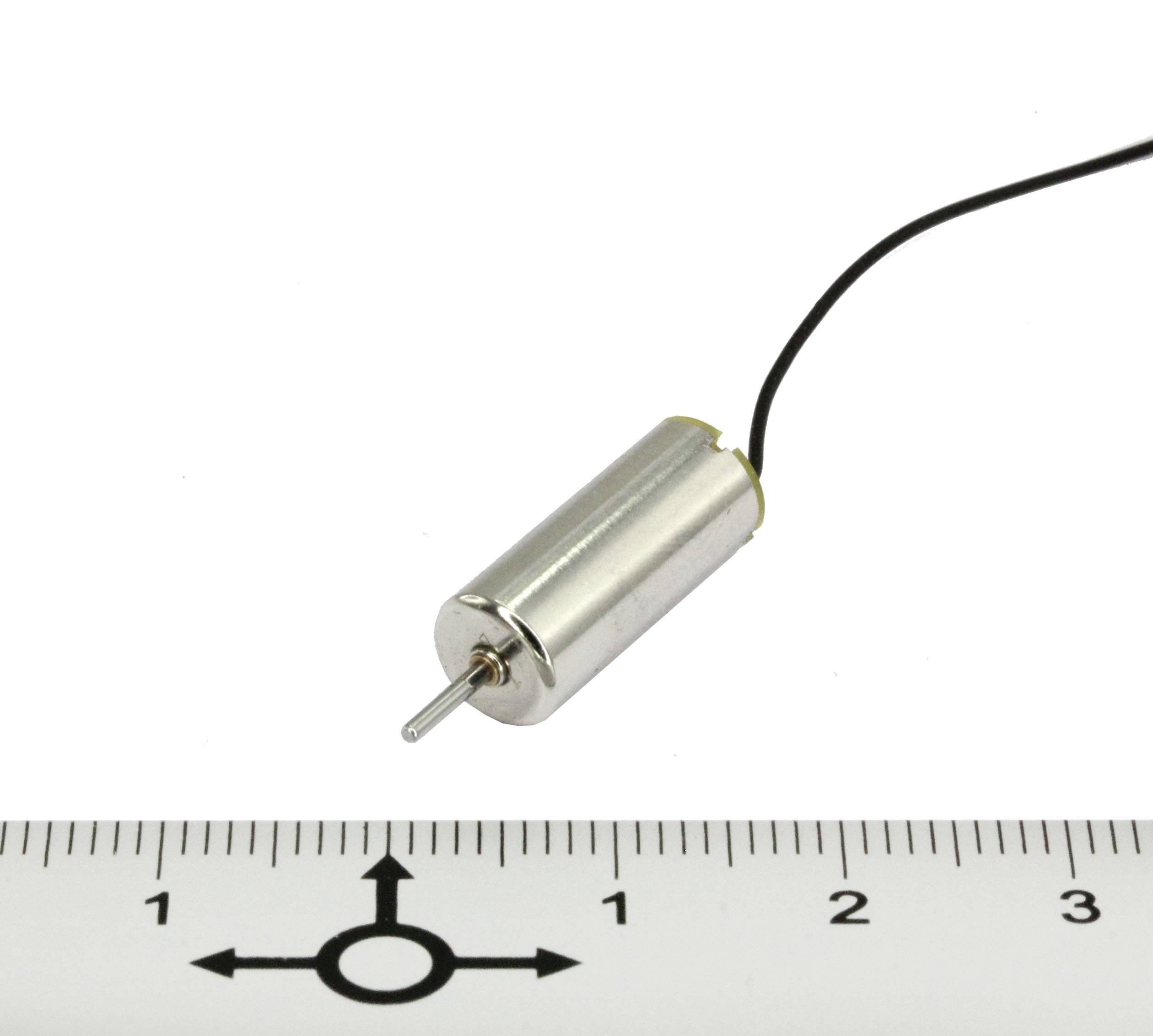

Sol Expert 35780 Micro motor 12500 U/min 5 mm
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 6.71
3
6% = € 0.37
€ 6.34
5
8% = € 0.51
€ 6.20
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 6.71 / piece)
€ 6.71
plus VAT.
Highlights & Details
M712L Micro-motor with 12-18 volts
- Tune up your Model Car
Technical specifications
- Nominal voltage (V) 12
- Starting current max. (mA) : 1
- Voltage range (V) : 1 – 12
- Imax at standstill: 110mA@12V
- Idle speed (rpm) 12500@12V
- Weight (g) : 3.3
- Cable length (mm) : 150
- Dim. Motor body 7 x 16.6 mm
- Dim. Axis:1 mm diameter, 5 mm length
- Size
Universal
- Dim
(Ø x L) 7 mm x 16.6 mm
- (Ø)
7 mm
- Length
16.6 mm
- Axle Ø
1 mm
- Rotational speed
12500 U/min
- Voltage (max.)
12 V
- Voltage (min.)
1 V
- Age category
15 years and over
- Axle length
5 mm
- Weight
3.3 g
- Product type
Micro motor
Documents & Downloads
Datasheet
Datasheet 3413865 Sol Expert 35780 Micro motor 12500 U/min 5 mm
User & Safety Instructions
User & Safety Instructions 3413865 Sol Expert 35780 Micro motor 12500 U/min 5 mm
Description
M712L micro motor, diameter 7 mm, 5 pole, for 12 volts
Thanks to a voltage range of 1-18 volts, this tiny engine can be used perfectly for movements in the model railway construction. The motor is characterized by excellent starting properties. The engine starts powerfully even at just over 1 V. Due to the 5-pole version, the maximum speed is reduced and the torque is increased for this. The engine therefore generates power at low speeds and is thus suitable for Ideal for micro drive construction and everything around movements in model construction and model railways.
This text is machine translated.
Thanks to a voltage range of 1-18 volts, this tiny engine can be used perfectly for movements in the model railway construction. The motor is characterized by excellent starting properties. The engine starts powerfully even at just over 1 V. Due to the 5-pole version, the maximum speed is reduced and the torque is increased for this. The engine therefore generates power at low speeds and is thus suitable for Ideal for micro drive construction and everything around movements in model construction and model railways.
This text is machine translated.
