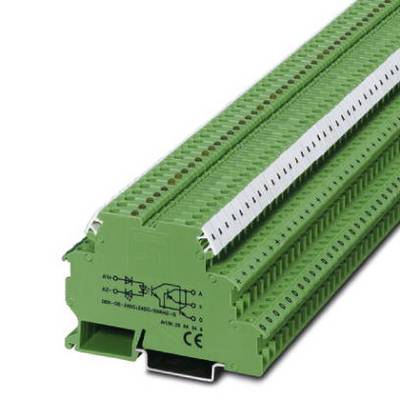

Solid-state relay terminal block DEK-OE- 24DC/ 5DC/100KHZ-G 2964364 Phoenix Contact
EAN:
Part number:
Item no:
Packaging type
Package
Product type
SSR
Control voltage (min.)
24 V DC
Control voltage (max.)
24 V DC
Switching voltage (max.)
18 V DC
Datasheet (PDF)
Number (Package size 10 pc(s))
Total (€ 66.30 / piece)
€ 663.03
plus VAT.
Highlights & Details
Solid-state relay terminal block DEK-OE- 24DC/ 5DC/100KHZ-G
- Industrial packaging, pack of 10
Technical specifications
- Packaging type
Package
- Product type
SSR
- Type
DEK-OE- 24DC/ 5DC/100KHZ-G
- Connection
Screws
- Control voltage (min.)
24 V DC
- Control voltage (max.)
24 V DC
- Control voltage range
24 - 24 V DC
- Switching voltage (min.)
4 V DC
- Switching voltage (max.)
18 V DC
- Current load (max.)
50 mA
- Output voltage (min.)
4 V DC
- Output voltage (max.)
18 V DC
- Max. output current
50 mA
- Min. temperature
-20 °C
- Max. temperature
+60 °C
- Width
6.2 mm
- Height
80 mm
- Depth
56 mm
- Industrial packaging
Yes
- Content
10 pc(s)
- Nominal control voltage
24 V DC
TRUE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 705321 Solid-state relay terminal block DEK-OE- 24DC/ 5DC/100KHZ-G 2964364 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 705321 Solid-state relay terminal block DEK-OE- 24DC/ 5DC/100KHZ-G 2964364 Phoenix Contact
Description
Input solid-state relay, with DC voltage output push-pull, transmission frequency: 100 kHz, with light indicator and protective circuit in input and output circuits, input: 24 V DC, output: 4 - 18 V DC/50 mA
