Buy SpeaKa Professional Slim TV wall mount 43,2 cm (17") - 94,0 cm (37") Tiltable Built-in level

Black, tilting TV wall mount with integrated spirit level, suitable for medium-sized screens. Robust metal frame.

A flat screen mounted on a wall bracket, side view. Screen is black, frame white. Background neutral.

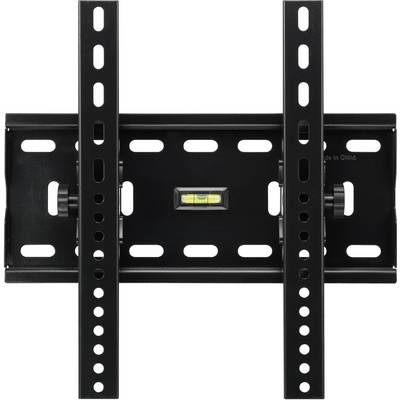

Black TV wall mount with built-in spirit level, suitable for wall mounting. Vertical and horizontal mounting options available.

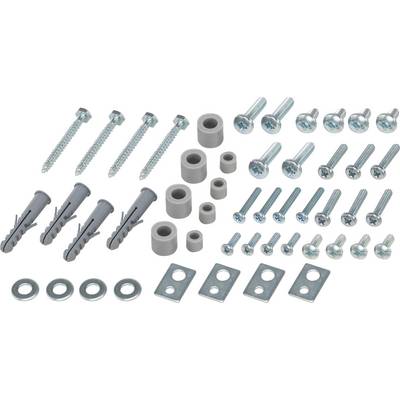

Various screws, wall plugs and spacers for fixing. Ideal for mounting on walls or furniture.

Pivoting and tilting TV wall mount with integrated spirit level for easy alignment.

A black wall mount with a spirit level integrated in the centre.

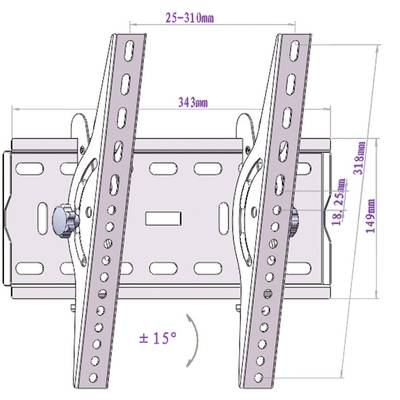

Illustration of a TV wall mount with adjustable tilt angle of ±15°, compatible dimensions, and mounting instructions.

1/7

Datasheet (PDF)

309 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 10.92 / piece)

€

Report legal concerns

Highlights & Details

SpeaKa Professional TV wall holder "Slim" 43 cm (17") 94 cm (37") can be tilted 50 kg

Holder type: Tiltable
Supports all VESA standards up to 300 x 300 mm
Suitable for displays sized (range): 43,2 cm (17") - 94,0 cm (37")
Load capacity (max.) 50 kg

Technical specifications

Product type: TV wall mount

Suitable for: 43,2 cm (17") - 94,0 cm (37")

Holder type: Tiltable

Features: Built-in level

Max. load capacity: 50 kg

: No

: 75 x 75 mm
100 x 100 mm
200 x 100 mm
200 x 200 mm
300 x 200 mm
300 x 300 mm

Rotation: 0°

Tilt range (bottom): -15°

Tilt range (top): 0°

Swivel range (left): 0°

Swivel range (right): 0°

Distance to wall (min.): 1.8 cm

Distance to wall (max.): 6 cm

Width: 343 mm

Height: 149 mm

Depth: 18 mm

Factory colour: Black

Material (details): Steel

Weight: 1.5 kg

Dim: (W x H x D) 343 x 149 x 18 mm

Suitable for: 43,2 cm (17")
45,7 cm (18")
48,3 cm (19")
50,8 cm (20")
54,6 cm (21,5")
55,9 cm (22")
58,4 cm (23")
59,9 cm (23,6")
61 cm (24")
63,5 cm (25")
66,0 cm (26")
68,6 cm (27")
71,1 cm (28")
73,7 cm (29")
76,2 cm (30")
78,7 cm (31")
81,3 cm (32")
83,8 cm (33")
86,4 cm (34")
88,9 cm (35")
91,4 cm (36")
94,0 cm (37")
Show more

Documents & Downloads

Datasheet

Datasheet 1089870 SpeaKa Professional Slim TV wall mount 43,2 cm (17") - 94,0 cm (37") Tiltable Built-in level

User & Safety Instructions

User & Safety Instructions 1089870 SpeaKa Professional Slim TV wall mount 43,2 cm (17") - 94,0 cm (37") Tiltable Built-in level

Information

Information 1089870 SpeaKa Professional Slim TV wall mount 43,2 cm (17") - 94,0 cm (37") Tiltable Built-in level

Description

The wall bracket can be tilted downwards and provides an optimum view of a TV set positioned above the viewing height. The extremely flat profile offers a modern and space-saving interior design. An integrated spirit level, which is located on the holder, enables an easy and quick mounting. The safe and robust design allows the installation of heavy TV sets up to 50 kg.

This text is machine translated.

Features

Easy adjustment of the angle of inclination through knurled screws
Integrated spirit level for easy installation
Distance to wall (min.): 1.8 cm
Distance to wall (max.): 6 cm

Scope of delivery

TV wall mount
2 x mounting rail
2 x rotary knob
2 x lock screw M6 x 15
4 x screw M5x16
4 x screw M5x30
4 x screw M6 x 16
4x M6x30 screw
4 x key screw 8 mm x 50
4x screw M8x16
4x M8x30 screw
4x spacers 6 mm x 10
4x spacers 8 mm x 16
2 x washers 8 mm (plastic)
4 x 8 mm washer (metal)
4 x flat washer 5/6/8 mm
4x wall plug 10 mm x 50
Installation manual.

Hints

Speaka Professional universal TV wall mount brackets fit most of the popular flatscreen TV brands, including Samsung, Sony and LG TVs. The only thing you need to make sure is checking whether the size of your LCD, LED or plasma TV conforms with VESA standards.
