Buy SpeaKa Professional Wall Tilt TV wall mount 81,3 cm (32") - 160,0 cm (63") Tiltable Knurl head screw

Mounting bracket for flat-screen televisions, black, adjustable, suitable for wall mounting, with multiple fixing holes.

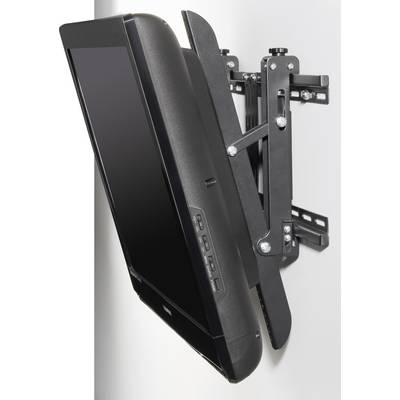

A black screen is mounted on an adjustable wall-mounted arm, tilting to the left and showing control buttons.

Steel wall mount, suitable for attaching a television or monitor.

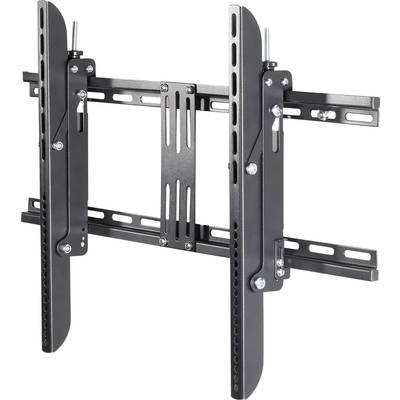

Black metal TV wall mount with adjustable arms and mounting holes, suitable for various TV sizes.

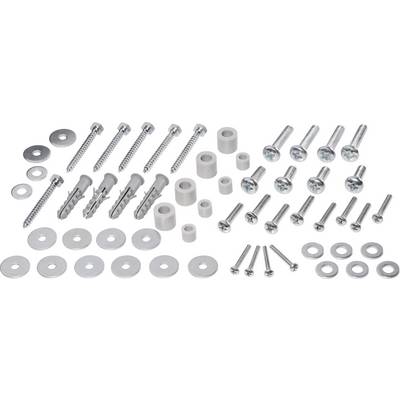

Various screws, wall plugs and washers in different sizes and shapes, arranged on a white surface.

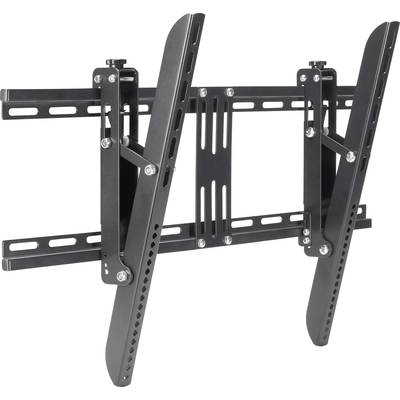

'Black, tilting TV wall mount with multiple fixing holes and adjustable arms, suitable for large screens.'

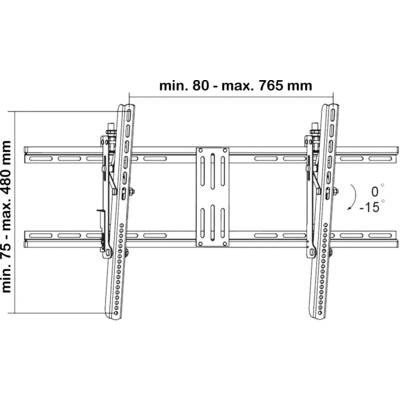

'Technical drawing of a wall mount for screens. Adjustable width: 80-765 mm, height: 75-480 mm, tilt: 0° to -15°.'

1/7

478 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 23.52 / piece)

€

Report legal concerns

Highlights & Details

SpeaKa Professional Tilt Wall Mount for 32" to 63" TVs (up to 75 kgs)

Holder type: Tiltable
VESA compatibility up to 800 x 400 mm
Suitable for displays sized (range): 81,3 cm (32") - 160,0 cm (63")
Load capacity (max.) 75 kg

Technical specifications

Product type: TV wall mount

Suitable for: 81,3 cm (32") - 160,0 cm (63")

Holder type: Tiltable

Features: Knurl head screw

Max. load capacity: 75 kg

: No

: 200 x 200 mm
200 x 300 mm
300 x 200 mm
300 x 300 mm
300 x 400 mm
400 x 200 mm
400 x 300 mm
400 x 400 mm
500 x 350 mm
500 x 400 mm
600 x 200 mm
600 x 300 mm
600 x 400 mm
Show more

Rotation: 0°

Tilt range (bottom): -15°

Tilt range (top): 0°

Swivel range (left): 0°

Swivel range (right): 0°

Distance to wall (min.): 7.9 cm

Distance to wall (max.): 7.9 cm

Width: 810 mm

Height: 500 mm

Depth: 78 mm

Factory colour: Black

Material (details): Steel finish

Weight: 3.7 kg

Dim: (W x H x D) 810 x 500 x 78 mm

Suitable for: 81,3 cm (32")
83,8 cm (33")
86,4 cm (34")
88,9 cm (35")
91,4 cm (36")
94,0 cm (37")
99,1 cm (39")
96,5 cm (38")
101,6 cm (40")
104,1 cm (41")
106,7 cm (42")
109,2 cm (43")
111,8 cm (44")
114,3 cm (45")
116,8 cm (46")
119,4 cm (47")
121,9 cm (48")
124,5 cm (49")
127,0 cm (50")
129,5 cm (51")
132,1 cm (52")
134,6 cm (53")
137,2 cm (54")
139,7 cm (55")
142,2 cm (56")
144,8 cm (57")
147,3 cm (58")
149,9 cm (59")
152,4 cm (60")
154,9 cm (61")
157,5 cm (62")
160,0 cm (63")
Show more

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 989273 SpeaKa Professional Wall Tilt TV wall mount 81,3 cm (32") - 160,0 cm (63") Tiltable Knurl head screw

Description

The brackets enable tilting the TV screen towards the front, providing an ideal solution for watching TV on screens mounted above eye-level. A huge pro, in particular if you want to install a TV in your bedroom. The robust, compact and safe design of the Speaka brackets also fits large TV sets weighing up to 165 lbs (75 kg).

Delivery includes all fixtures and fittings required to mount your TV to any wall. No need to buy any additional fixings.

Features

Forward tilt postion adjusted by knurl-head screws.

Scope of delivery

TV wall mount
8 x wall plug (extra-long, ¼ x 6.35)
8 x wall plug
4 x screw (M4 x 30)
4 x spacer
4 x screw (M8 x 25)
4 x screw (M8 x 40)
4 x screw (M5 x 30)
4 x screw (M6 x 30)
10 x washer (M5/M6/M8)
12 x washer (M4/M5/M6)
Installation manual.

Hints

Speaka Professional universal TV wall mount brackets fit most of the popular flatscreen TV brands, including Samsung, Sony and LG TVs. The only thing you need to make sure is checking whether the size of your LCD, LED or plasma TV conforms with VESA standards.
