Buy SpeaKa Professional SP-2518260 SuperFlex TV wall mount 66,0 cm (26") - 119,4 cm (47") Tiltable, Swivelling, Swivelling,

A black, pivoting TV wall mount with an extendable arm in silver, suitable for mounting flat-screen televisions.

A flat-screen display, viewed from the side, mounted on a wall bracket. The bracket allows flexible positioning of the screen.

A person is sitting in an armchair in a modern living room, reading a magazine. A flat-screen television with a landscape scene is mounted on the wall.

Wall-mounted, adjustable monitor mount with a articulated arm and a VESA plate for attaching displays. Ideal for flexible screen positioning.

Industrial robot working on a machine. The drawing shows the robotic arm with a gripper mechanism performing precise movements.

Image of a black wall-mounted flat screen bracket with a pivoting arm that enables flexible positioning.

A black monitor mounted on an adjustable grey wall bracket, which allows the screen to be tilted into various positions.

Flat screen mounted on an adjustable and tilting wall bracket, demonstrating the functionality and flexibility of the mount.

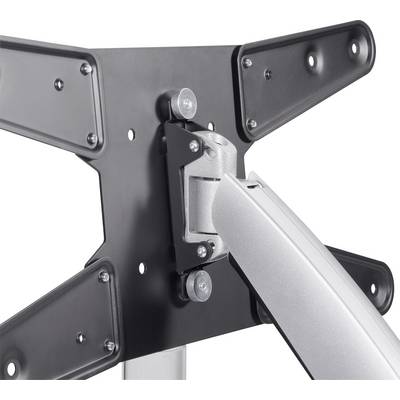

Close-up of a mounting bracket for a monitor arm, attached to the rear of a display screen.

A silver mechanical hinge with red and blue sheathed cables, mounted on a grey arm.

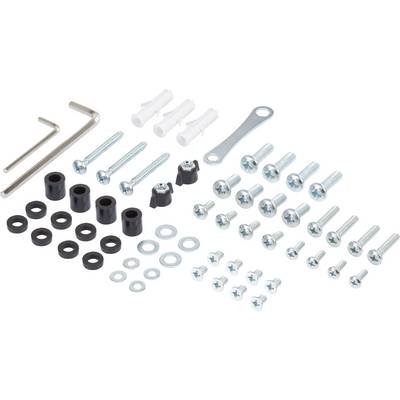

Various screws, nuts, washers and tools on a white background, arranged by sizes and types.

1/11

Datasheet (PDF)

117 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 45.37 / piece)

€

Report legal concerns

Highlights & Details

SpeaKa Professional TV wall holder 66 cm (26") - 119 cm (47") inclinable and tilting, 20 kg

Holder type: Tiltable, Swivelling, Swivelling, Retractable
Supports VESA standards up to 400 x 400 mm
Suitable for displays sized (range): 66,0 cm (26") - 119,4 cm (47")
Load capacity (max.) 20 kg
Continuous height adjustment by pneumatic

Technical specifications

With two joints

Product type: TV wall mount

Suitable for: 66,0 cm (26") - 119,4 cm (47")

Holder type: Tiltable
Swivelling
Swivelling
Retractable

Features: Tool-free inclination

Max. load capacity: 20 kg

: Yes

: 200 x 200 mm
300 x 300 mm
400 x 200 mm
400 x 400 mm

Rotation: 6°

Tilt range (bottom): -15°

Tilt range (top): +15°

Swivel range (left): 90°

Swivel range (right): 90°

Distance to wall (min.): 5.5 cm

Distance to wall (max.): 59 cm

Width: 400 mm

Height: 400 mm

Depth: 551 mm

Factory colour: Silver
Black

Material (details): Aluminium/Steel

Weight: 4 kg

Dim: (W x H x D) 400 x 400 x 551 mm

Suitable for: 66,0 cm (26")
68,6 cm (27")
71,1 cm (28")
73,7 cm (29")
76,2 cm (30")
78,7 cm (31")
81,3 cm (32")
83,8 cm (33")
86,4 cm (34")
88,9 cm (35")
91,4 cm (36")
94,0 cm (37")
99,1 cm (39")
96,5 cm (38")
101,6 cm (40")
104,1 cm (41")
106,7 cm (42")
109,2 cm (43")
111,8 cm (44")
114,3 cm (45")
116,8 cm (46")
119,4 cm (47")
Show more

Documents & Downloads

Datasheet

Datasheet 629565 SpeaKa Professional SP-2518260 SuperFlex TV wall mount 66,0 cm (26") - 119,4 cm (47") Tiltable, Swivelling, Swivelling,

User & Safety Instructions

User & Safety Instructions 629565 SpeaKa Professional SP-2518260 SuperFlex TV wall mount 66,0 cm (26") - 119,4 cm (47") Tiltable, Swivelling, Swivelling,

Description

Frequently changing viewing angles on your TV set require maximum flexibility. This wall bracket has a built-in gas pressure spring. This means that you can move your TV set to any desired position without any tools – at any time. The spring has to be adjusted once to the weight of your TV and you always get the best view of your favorite films or TV series. The distance from the wall is infinitely variable up to 55 cm.

Subsequent alignment in the event of mounting errors or unevenness of the walls is possible directly on the TV recording disc. Here, up to +/- 3° can be balanced horizontally.

This text is machine translated.

Features

VESA mounting lugs can be removed, perfect for smaller TV devices up to 94 cm (37")
Wall distance: 5.5 cm
Wall distance max.: 55.1 cm
Height adjustment: 33.5 cm

Scope of delivery

Wall bracket
4 x screws M5 x 14
4 x screws M6 x 14
4 x screws M8 x 20
4 x screw (M6 x 30)
4 x screw (M8 x 30)
4x D5 washer
4x D8 washer
8x short
4 x long
Allen key 3 mm
Allen key 6 mm
8 x M6 nut
3x ST6.3x55
3x anchor bolt
User manual.

Hints

The SpeaKa Professional TV wall mount is suitable for all common TV brands, such as Samsung and LG. Just make sure your LCD, LED or plasma TV complies with the appropriate FDMI/VESA standards.
