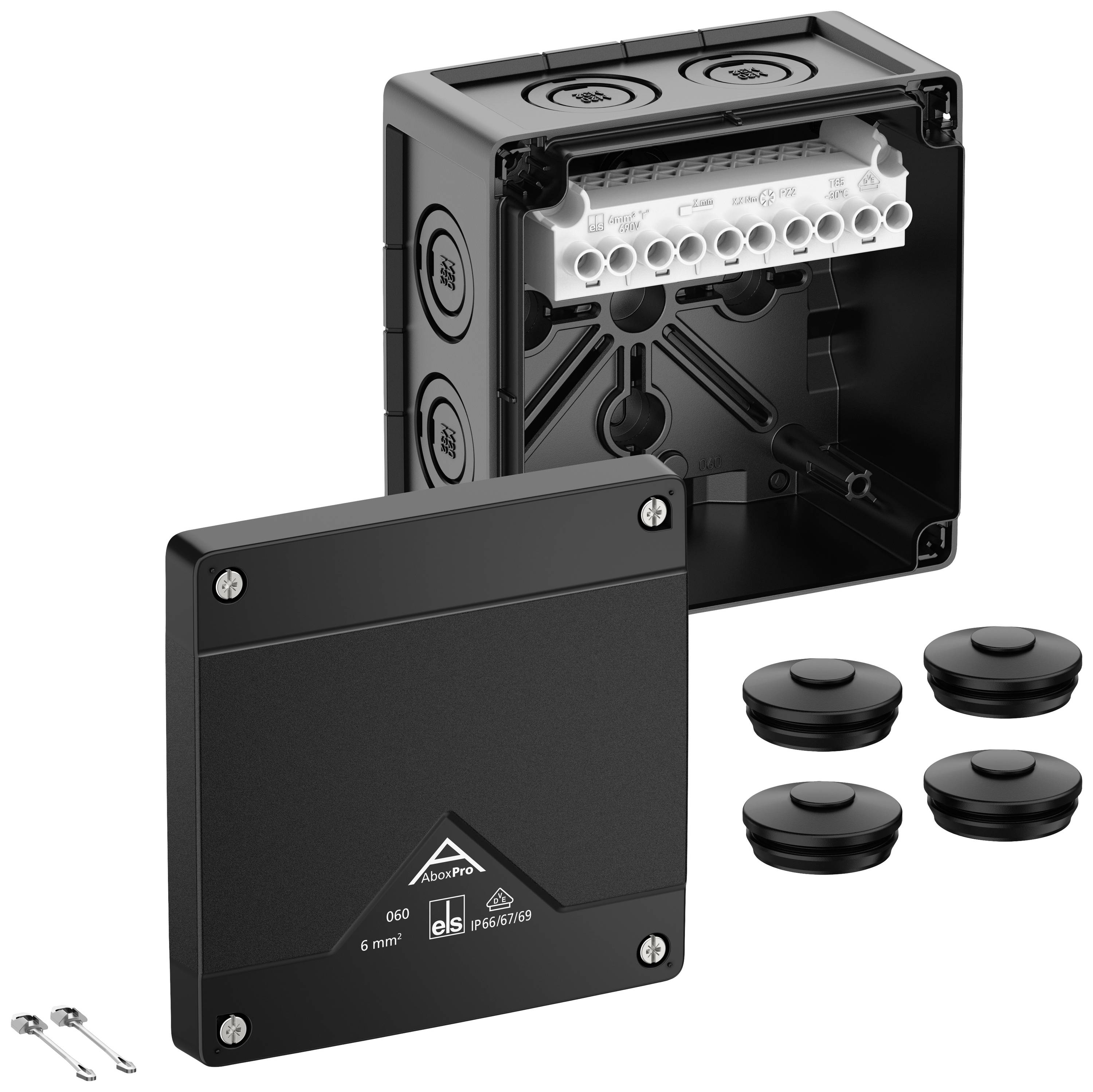

Spelsberg 40602001 Junction box (L x W x H) 127 x 127 x 75 mm Black IP66, IP67, IP69 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 17.64 / piece)
€ 17.64
plus VAT.
Technical specifications
- Product type
Junction box
- Factory colour
Black
IP66
IP67
IP69
- Dim
(L x W x H) 127 x 127 x 75 mm
- Content
1 pc(s)
- Width
127 mm
- Height
75 mm
- Length
127 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3062296 Spelsberg 40602001 Junction box (L x W x H) 127 x 127 x 75 mm Black IP66, IP67, IP69 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3062296 Spelsberg 40602001 Junction box (L x W x H) 127 x 127 x 75 mm Black IP66, IP67, IP69 1 pc(s)
Description
Junction box with IP66/IP67/IP69 protection rating, 6 mm² nominal diameter, certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22), DLG (ammonia resistance), DNV (class: Ships and offshore installations), impact membranes, M20/M32, (1 back, 7 side), Interior mounting points, for industrial installations and unprotected outdoor areas, black, Ui = 690 V AC, In = 41 A, with elevated screw terminal, 5-pole - 6 mm², clamping cross-sections per pole: 4 x 1.5 mm², 4 x 2.5 mm², 4 x 4 mm², 4 x 6 mm² rigid/flexible copper with wire-end sleeve.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Accessories attached:
- 4 double diaphragm supports IP66 M32 sealing range 13 - 21 mm
- Cover retainer
