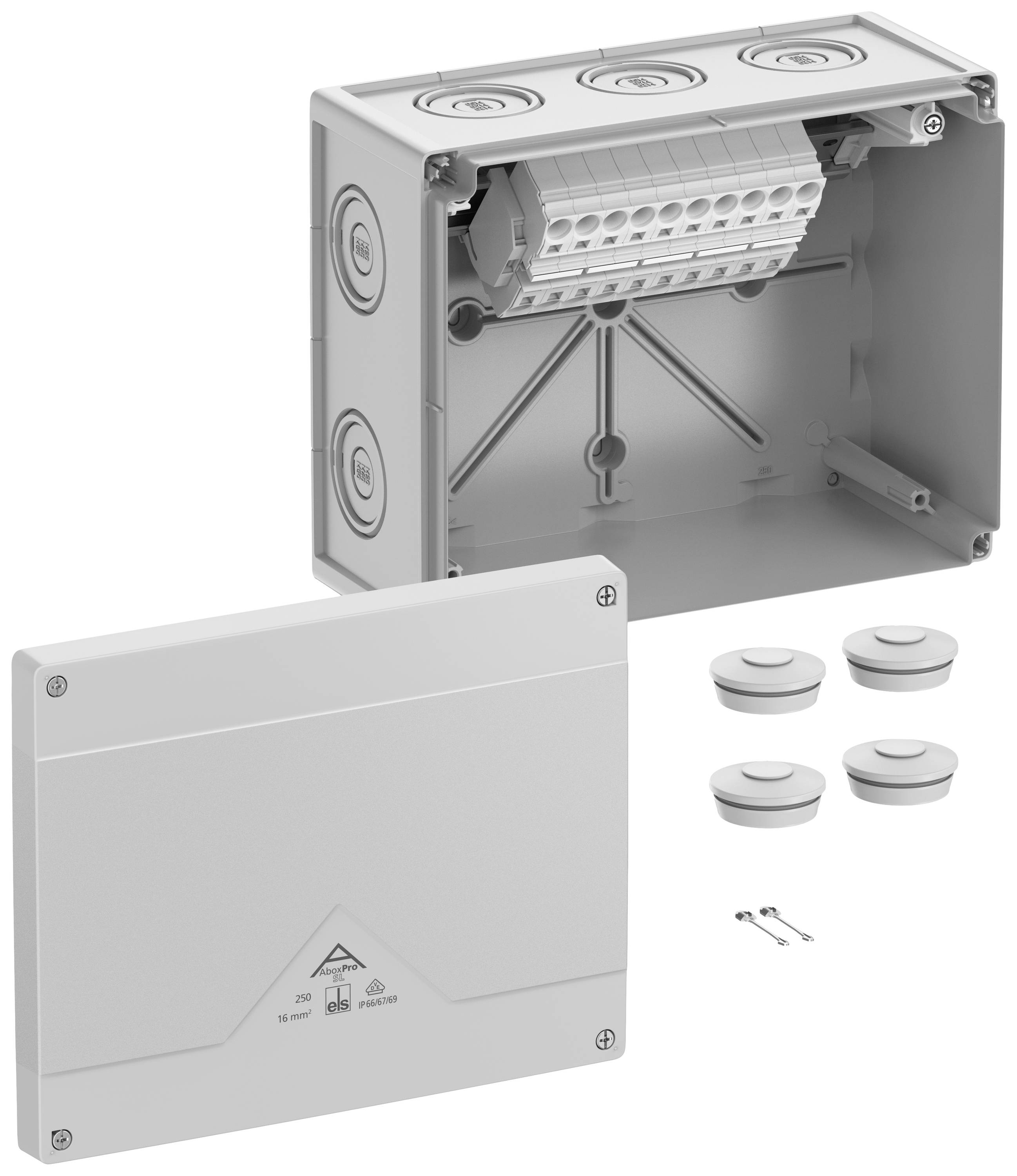

Spelsberg 41644001 Junction box (L x W x H) 202 x 252 x 120 mm Grey IP66, IP67, IP69 1 pc(s)

Grey-white junction box with removable cover, internally fitted with terminal strips. Suitable for electrical wiring. Includes additional caps and screws.
EAN:
Part number:
Item no:
Dispatches on Mon 9 Nov
15 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 104.99 / piece)
€ 104.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

Product type

Junction box

Factory colour

Grey

IP66

IP67

IP69

Dim

(L x W x H) 202 x 252 x 120 mm

Content

1 pc(s)

Width

252 mm

Height

120 mm

Length

202 mm

UKCA

yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3062326 Spelsberg 41644001 Junction box (L x W x H) 202 x 252 x 120 mm Grey IP66, IP67, IP69 1 pc(s)

Description

Junction box with IP66/IP67/IP69 protection, nominal cross-section 16 mm², UI=690 V AC, certified by VDE (DIN EN 0606-1/22 (VDE 60670-1/--22)), DLG (ammonia resistance), DNV (class: Ships & offshore installations), impact membranes, M20/M25/M40/M50, (4 back, 10 side), inside mounting points, with screwless terminals for installations in the industrial area and unprotected outdoor areas, gray, In=76 A, with horizontal, screwless terminal WAGO 2016-1201, 5-pin, max. Nominal cross-section according to DIN EN 60998: 16 mm², clamping cross-sections per pole: 4 x 0.5 to 16 mm², rigid Cu, 4 x 0.5 to 25 mm² flexible Cu.

This text is machine translated.

Scope of delivery

  • Accessories attached:
  • 4 double diaphragm supports IP66 M40 sealing range 17 - 28 mm
  • Cover retainer
