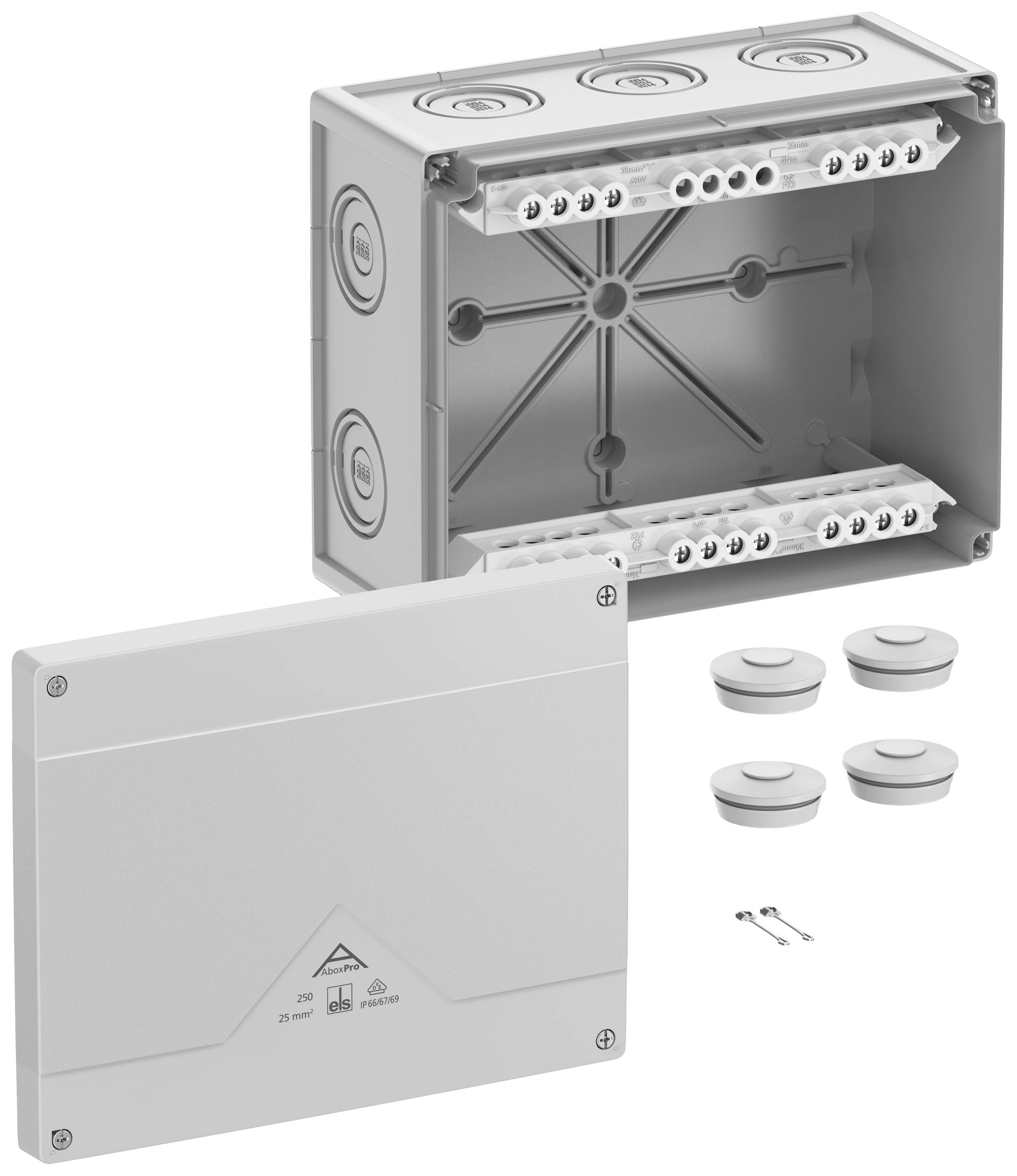

Spelsberg 42542001 Junction box (L x W x H) 202 x 252 x 120 mm Grey IP66, IP67, IP69 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 59.99 / piece)
€ 59.99
incl. VAT
14-day return policy included
Technical specifications
- Product type
Junction box
- Factory colour
Grey
IP66
IP67
IP69
- Dim
(L x W x H) 202 x 252 x 120 mm
- Content
1 pc(s)
- Width
252 mm
- Height
120 mm
- Length
202 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3062310 Spelsberg 42542001 Junction box (L x W x H) 202 x 252 x 120 mm Grey IP66, IP67, IP69 1 pc(s)
Description
Junction box with IP66/IP67/IP69 protection rating, 25 mm² nominal cross-section, certified by VDE (DIN EN 60670-1/22 (VDE 0606-1/--22), DLG (ammonia resistance), DNV (class: Ships and offshore installations), deflection membranes, M20/M25/M40/M50, (4 back, 10 side), interior fixing points, for industrial installations and unprotected outdoor areas, gray, Ui = 690 V AC, In = 101 A, with elevated screw terminal, 5-pole - 25 mm², clamping cross-sections per pole: 12 x 10 mm², 8 x 16 mm², 4 x 25 mm² rigid/flexible copper with wire-end sleeve.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Accessories attached:
- 4 double diaphragm supports IP66 M44 sealing range 17 - 28 mm
- Cover retainer
